DigitalExperienceBundle: Site Workspace Bundle and Folders | Metadata API Developer Guide

The site folder contains one or more workspace folders, each representing the workspace for an individual enhanced LWR site. Each workspace folder contains a collection of related content items, such as settings and site components, that form the site when combined with data from the DigitalExperienceConfig metadata type.

The workspace folder for each site includes content type folders, content item subfolders, and associated data that's contained in content.json and _meta.json files.

The following content type folders represent the content types that are supported in an enhanced LWR site. For example, all routes in an enhanced LWR site are stored under the sfdc_cms__route content type folder.

sfdc_cms__appPage Folder
sfdc_cms__brandingSet Folder
sfdc_cms__languageSettings Folder
sfdc_cms__route Folder
sfdc_cms__site Folder
sfdc_cms__theme Folder
sfdc_cms__themeLayout Folder
sfdc_cms__view Folder

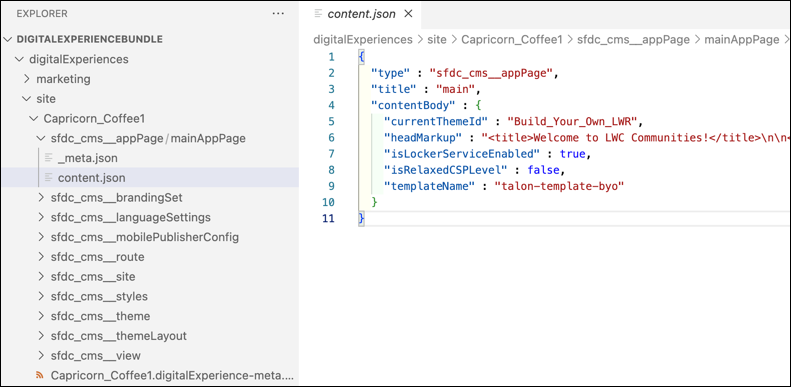

sfdc_cms__appPage Folder

This content type folder exists at the root level and contains one content subfolder that represents the site’s single-page application. Only one sfdc_cms__appPage content item is allowed per site.

The content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
currentThemeId	Field Type content link Description Represents the apiName of the site’s active theme.
headMarkup	Field Type string Description Allows the addition of custom markup to the site's main page `<head>` tag. Similar to using Experience Builder \| Setting \| Advanced \| Head Markup. See Salesforce Help for markup guidance.
isLockerServiceEnabled	Field Type boolean Description Indicates whether Lightning Locker is enabled (`true`) or not (`false`). The default value is `true`.
isRelaxedCSPLevel	Field Type boolean Description Controls the ability to run scripts and controls script access to third-party hosts. The default is `false`. A `false` value sets a strict CSP security level, and blocks access to inline scripts and all hosts. A `true` value sets a relaxed CSP security level, and permits access to inline scripts and allowed hosts. To learn more, see Select a Security Level in Experience Builder Sites.
templateName	Field Type string Description Required. The unique developer name of the template. Valid values are: `talon-template-byo`—Represents the Build Your Own (LWR) template `microsite-template-marketing`—Represents the Microsite template
title	Field Type string Description Required. Represents the label of the appPage.
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__appPage`.

{
  "type" : "sfdc_cms__appPage",
  "title" : "main",
  "contentBody" : {
    "currentThemeId" : "Build_Your_Own_LWR",
    "headMarkup" : "<meta charset=\"UTF-8\" />\n<meta name=\"viewport\" content=\"width=device-width, initial-scale=1\" />\n<title>Welcome to LWC Communities!</title>\n\n<link rel=\"stylesheet\" href=\"{ basePath }/assets/styles/styles.css?{ versionKey }\" />\n\n\n<!-- webruntime-branding-shared stylesheets -->\n<link rel=\"stylesheet\" href=\"{ basePath }/assets/styles/salesforce-lightning-design-system.min.css?{ versionKey }\" />\n<link rel=\"stylesheet\" href=\"{ basePath }/assets/styles/dxp-site-spacing-styling-hooks.min.css?{ versionKey }\" />\n<link rel=\"stylesheet\" href=\"{ basePath }/assets/styles/dxp-styling-hooks.min.css?{ versionKey }\" />\n<link rel=\"stylesheet\" href=\"{ basePath }/assets/styles/dxp-slds-extensions.min.css?{ versionKey }\" />\n\n\n<!-- webruntime-branding-shared stylesheets -->",
    "isLockerServiceEnabled" : true,
    "isRelaxedCSPLevel" : false,
    "templateName" : "talon-template-byo"
  }
}

sfdc_cms__brandingSet Folder

This content type folder contains one content subfolder per branding set. Each content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
brandingSetType	Field Type enumeration of type string Description Represents whether the color palette stored in the branding set is for the entire site or a specific section. You can’t change one branding set type to another. Valid values are: `APP`—The branding set applies to the entire site. There can be only one branding set of this type. `SCOPED`—A `SCOPED` branding set can be applied only to a section component.
definitionName	Field Type string Description Required. Represents the name for the branding set used in the site or template’s theme. There are two standard templates that have unique naming: Build Your Own (LWR) uses talon-template-byo:branding Microsite uses microsite-template-marketing:branding
title	Field Type string Description Required. Represents the label of the brandingSet content item. The maximum length is 100 characters. The title must be unique within the space’s brandingSet content items.
type	Field Type string Description Required. Represents the content type. The only supported value is `sfdc_cms__brandingSet`.
values	Field Type object (map) Description Required. Represents a map of branding values that can be applied to a site.

{
  "type" : "sfdc_cms__brandingSet",
  "title" : "Build Your Own (LWR)",
  "contentBody" : {
    "brandingSetType" : "APP",
    "definitionName" : "talon-template-byo:branding",
    "values" : {
      "BackgroundColor" : "#ffffff",
      "BaseFontSize" : "1rem",
      "BodyFont" : "Salesforce Sans",
      "BodyFontSize" : "1rem",
      "BodyFontStyle" : "normal",
      "BodyFontWeight" : "400",
      "BodyLetterSpacing" : "0em",
      "BodyLineHeight" : "1.5",
      "BodySmallFont" : "Salesforce Sans",
      "BodySmallFontSize" : "0.75rem",
      "BodySmallFontStyle" : "normal",
      "BodySmallFontWeight" : "400",
      "BodySmallLetterSpacing" : "0em",
      "BodySmallLineHeight" : "1.25",
      "BodySmallTextColor" : "var(--dxp-g-root-contrast)",
      "BodySmallTextDecoration" : "none",
      "BodySmallTextTransform" : "none",
      "BodyTextColor" : "var(--dxp-g-root-contrast)",
      "BodyTextDecoration" : "none",
      "BodyTextTransform" : "none",
      "ButtonActiveColor" : "var(--dxp-s-button-color-1)",
      "ButtonBorderRadius" : "4px",
      "ButtonColor" : "var(--dxp-g-brand)",
      "ButtonFocusColor" : "var(--dxp-s-button-color-1)",
      "ButtonFont" : "Salesforce Sans",
      "ButtonFontSize" : "1rem",
      "ButtonFontStyle" : "normal",
      "ButtonFontWeight" : "400",
      "ButtonHoverColor" : "var(--dxp-s-button-color-1)",
      "ButtonLargeBorderRadius" : "4px",
      "ButtonLargeFontSize" : "1.25rem",
      "ButtonLargePadding" : "1.25rem",
      "ButtonLetterSpacing" : "0em",
      "ButtonLineHeight" : "2",
      "ButtonPadding" : "1rem",
      "ButtonSmallBorderRadius" : "4px",
      "ButtonSmallFontSize" : "0.75rem",
      "ButtonSmallPadding" : "0.75rem",
      "ButtonTextTransform" : "none",
      "ColumnSpacerSizeDesktop" : "1rem",
      "ColumnSpacerSizeMobile" : "0.75rem",
      "ComponentSpacerSizeDesktop" : "1.5rem",
      "ComponentSpacerSizeMobile" : "1.5rem",
      "DropdownBackgroundColor" : "var(--dxp-g-root)",
      "DropdownBackgroundHoverColor" : "var(--dxp-g-neutral)",
      "DropdownBorderColor" : "var(--dxp-g-neutral)",
      "DropdownTextColor" : "var(--dxp-g-root-contrast)",
      "DropdownTextHoverColor" : "var(--dxp-g-neutral-contrast)",
      "FormElementBackgroundColor" : "var(--dxp-g-root)",
      "FormElementBorderColor" : "var(--dxp-g-neutral-3)",
      "FormElementBorderRadius" : "4px",
      "FormElementBorderWidth" : "1px",
      "FormElementLabelColor" : "var(--dxp-g-root-contrast)",
      "FormElementTextColor" : "var(--dxp-g-root-contrast)",
      "HeadingExtraLargeColor" : "var(--dxp-g-root-contrast)",
      "HeadingExtraLargeFont" : "Salesforce Sans",
      "HeadingExtraLargeFontSize" : "2.5rem",
      "HeadingExtraLargeFontStyle" : "normal",
      "HeadingExtraLargeFontWeight" : "300",
      "HeadingExtraLargeLetterSpacing" : "0em",
      "HeadingExtraLargeLineHeight" : "1.25",
      "HeadingExtraLargeTextDecoration" : "none",
      "HeadingExtraLargeTextTransform" : "none",
      "HeadingLargeColor" : "var(--dxp-g-root-contrast)",
      "HeadingLargeFont" : "Salesforce Sans",
      "HeadingLargeFontSize" : "1.75rem",
      "HeadingLargeFontStyle" : "normal",
      "HeadingLargeFontWeight" : "300",
      "HeadingLargeLetterSpacing" : "0em",
      "HeadingLargeLineHeight" : "1.25",
      "HeadingLargeTextDecoration" : "none",
      "HeadingLargeTextTransform" : "none",
      "HeadingMediumColor" : "var(--dxp-g-root-contrast)",
      "HeadingMediumFont" : "Salesforce Sans",
      "HeadingMediumFontSize" : "1.25rem",
      "HeadingMediumFontStyle" : "normal",
      "HeadingMediumFontWeight" : "300",
      "HeadingMediumLetterSpacing" : "0em",
      "HeadingMediumLineHeight" : "1.25",
      "HeadingMediumTextDecoration" : "none",
      "HeadingMediumTextTransform" : "none",
      "HeadingSmallColor" : "var(--dxp-g-root-contrast)",
      "HeadingSmallFont" : "Salesforce Sans",
      "HeadingSmallFontSize" : "1.125rem",
      "HeadingSmallFontStyle" : "normal",
      "HeadingSmallFontWeight" : "300",
      "HeadingSmallLetterSpacing" : "0em",
      "HeadingSmallLineHeight" : "1.25",
      "HeadingSmallTextDecoration" : "none",
      "HeadingSmallTextTransform" : "none",
      "HorizontalRowPaddingDesktop" : "1rem",
      "HorizontalRowPaddingMobile" : "0.75rem",
      "LinkColor" : "var(--dxp-g-brand)",
      "LinkHoverColor" : "var(--dxp-s-link-text-color-1)",
      "LinkTextDecoration" : "none",
      "LinkTextDecorationFocus" : "underline",
      "LinkTextDecorationHover" : "underline",
      "MaxContentWidthDesktop" : "1800px",
      "MaxContentWidthMobile" : "none",
      "MobileBaseFontSize" : "1rem",
      "PrimaryAccentColor" : "#005fb2",
      "PrimaryAccentForegroundColor" : "#ffffff",
      "SiteLogo" : "",
      "TextColor" : "#1a1b1e",
      "VerticalRowPaddingDesktop" : "1rem",
      "VerticalRowPaddingMobile" : "0.75rem",
      "_BackgroundColor1" : "#ebebeb",
      "_BackgroundColor2" : "#c2c2c2",
      "_BackgroundColor3" : "#858585",
      "_ButtonActiveColorContrast" : "var(--dxp-g-brand-contrast-1)",
      "_ButtonColor1" : "var(--dxp-g-brand-1)",
      "_ButtonColorContrast" : "var(--dxp-g-brand-contrast)",
      "_ButtonFocusColorContrast" : "var(--dxp-g-brand-contrast-1)",
      "_ButtonHoverColorContrast" : "var(--dxp-g-brand-contrast-1)",
      "_DestructiveColor" : "#c23934",
      "_DestructiveColor1" : "#a2302b",
      "_DestructiveColor2" : "#611d1a",
      "_DestructiveColor3" : "#010000",
      "_DestructiveForegroundColor" : "#ffffff",
      "_DestructiveForegroundColor1" : "#ffffff",
      "_DestructiveForegroundColor2" : "#ffffff",
      "_DestructiveForegroundColor3" : "#ffffff",
      "_InfoColor" : "#16325c",
      "_InfoColor1" : "#0e203b",
      "_InfoColor2" : "#000000",
      "_InfoColor3" : "#000000",
      "_InfoForegroundColor" : "#ffffff",
      "_InfoForegroundColor1" : "#ffffff",
      "_InfoForegroundColor2" : "#ffffff",
      "_InfoForegroundColor3" : "#ffffff",
      "_LinkColor1" : "var(--dxp-g-brand-1)",
      "_NeutralColor" : "#ecebea",
      "_NeutralColor1" : "#d9d7d5",
      "_NeutralColor2" : "#b2aeaa",
      "_NeutralColor3" : "#76716b",
      "_NeutralForegroundColor" : "#000000",
      "_NeutralForegroundColor1" : "#000000",
      "_NeutralForegroundColor2" : "#000000",
      "_NeutralForegroundColor3" : "#ffffff",
      "_OfflineColor" : "#444444",
      "_OfflineColor1" : "#303030",
      "_OfflineColor2" : "#070707",
      "_OfflineColor3" : "#000000",
      "_OfflineForegroundColor" : "#ffffff",
      "_OfflineForegroundColor1" : "#ffffff",
      "_OfflineForegroundColor2" : "#ffffff",
      "_OfflineForegroundColor3" : "#ffffff",
      "_PrimaryAccentColor1" : "#004989",
      "_PrimaryAccentColor2" : "#001e38",
      "_PrimaryAccentColor3" : "#000000",
      "_PrimaryAccentForegroundColor1" : "#ffffff",
      "_PrimaryAccentForegroundColor2" : "#ffffff",
      "_PrimaryAccentForegroundColor3" : "#ffffff",
      "_SiteLogoUrl" : "",
      "_SuccessColor" : "#4bca81",
      "_SuccessColor1" : "#36b66c",
      "_SuccessColor2" : "#237747",
      "_SuccessColor3" : "#07190f",
      "_SuccessForegroundColor" : "#000000",
      "_SuccessForegroundColor1" : "#000000",
      "_SuccessForegroundColor2" : "#ffffff",
      "_SuccessForegroundColor3" : "#ffffff",
      "_TextColor1" : "#000000",
      "_TextColor2" : "#000000",
      "_TextColor3" : "#000000",
      "_WarningColor" : "#ffb75d",
      "_WarningColor1" : "#ffa534",
      "_WarningColor2" : "#e27d00",
      "_WarningColor3" : "#673900",
      "_WarningForegroundColor" : "#000000",
      "_WarningForegroundColor1" : "#000000",
      "_WarningForegroundColor2" : "#000000",
      "_WarningForegroundColor3" : "#ffffff"
    }
  }
}

sfdc_cms__languageSettings Folder

This content type folder contains one content subfolder called languages. The languages content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
defaultLocale	Field Type string Description Represents the default locale for a workspace. The language listed here is the default fallback language for all of the workspace’s languageTypes.
languages	Field Type languageType[] Description Required. Represents the languages available in the space. Each languageType contains values related to that particular language.
languageType.fallbacklocale	Field Type string Description Represents the locale to use when no content is available for the selected locale. For example, if a site visitor chooses Japanese from the language selector but there’s no content for that page in Japanese, content is displayed in the fallback locale. The fallbackLocale's isAuthoringOnly value must be `false`. Only one level of fallback is allowed. Here are examples for a workspace with a locale of `en_US`, and with Spanish, French, and Finnish as supported locales. Not allowed: Spanish falls back to French, and French falls back to Finnish. This configuration includes two levels of fallback. Allowed: Spanish falls back to French, and French falls back to English. `en_US` is the workspace’s default. Allowed: Spanish falls back to French, and French has no fallback. This property is displayed only if the languageType.fallbackLocale is different from the workspace’s default locale.
languageType.isActive	Field Type boolean Description Indicates whether the language is active (`true`) or inactive (`false`). The only supported value is `true`.
languageType.isAuthoringOnly	Field Type boolean Description Indicates whether the language is scoped only to authoring workspace (`true`) or not (`false`). The default value is `false`. When set to `true`, the languageType and its associated translations aren’t visible to site visitors. When set to `false`, site visitors can see the languageType and its associated translations.
languageType.label	Field Type string Description Required. Defines the display label for a language. The display label appears in any language selector components that you add to your site and in the language selector in Experience Builder. The default value is the locale name. For example, if languageType.locale=`fr`, then languageType.label=`French`.
languageType.locale	Field Type string Description Required. Represents the languageCode appended with the countryCode, separated by an underscore. For example, `en_US` indicates a languageCode of English, and a countryCode of United States. Defines the locale, or geographic region, of a language. Locales determine the display format for date and time, user names, address, and commas and periods in numbers. Each languageType.locale and languageType.label combination can be used only one time per workspace.
title	Field Type string Description Required. Represents the label of the content item.
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__languageSettings`.

{
  "type" : "sfdc_cms__languageSettings",
  "title" : "LanguageContent",
  "contentBody" : {
    "languages" : [ {
      "locale" : "en_US",
      "label" : "English (US)",
      "isActive" : true,
      "isAuthoringOnly" : false
    } ],
    "defaultLocale" : "en_US"
  }
}

sfdc_cms__route Folder

This content type folder contains one content subfolder for each of the site’s routes. Each route content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
activeViewId	Field Type content link Description Required. Represents the apiName of the route’s active view. Must reference an existing view in the same workspace.
configurationTags	Field Type string[] Description Represents the configuration tags for the route. The only allowed `value is all-in-static-site`. Don’t edit this property, because it’s an internal property. Note
pageAccess	Field Type enumeration of type string Description Identifies the status of a route as public or private. When set to the default value `UseParent`, the status of the site determines the status of the route. This value isn’t editable from the user interface for routes that are always private. Valid values are: `UseParent` `Public` `RequiresLogin` You can change the pageAccess value only if the site is authenticated. Note
routeType	Field Type string Description Required. Identifies the type of route. The routeType value must be unique within a workspace. This value must match the viewType value in the corresponding view content item.
title	Field Type string Description Required. Represents the label of the route.
type	Field Type string Description Required. Represents the content type. The only supported value is `sfdc_cms__route`.
urlPrefix	Field Type string Description Required. Represents the base URL for the route.

{
  "type" : "sfdc_cms__route",
  "title" : "Error",
  "contentBody" : {
    "activeViewId" : "error",
    "configurationTags" : [ ],
    "pageAccess" : "UseParent",
    "routeType" : "error",
    "urlPrefix" : "error"
  }
}

sfdc_cms__site Folder

This content type folder exists at the root level and contains one content subfolder. The content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
authenticationType	Field Type enumeration of type string Description Required. Indicates whether guest users have access to the site. Valid values are: `AUTHENTICATED`—The site isn’t public. Only authenticated users can access the site after logging in. `AUTHENTICATED_WITH_PUBLIC_ACCESS_ENABLED`—The site is an authenticated site, but the Public can access the site checkbox is enabled in Experience Builder in Settings \| General. Guest users can access the site. `UNAUTHENTICATED`—The unauthenticated site is publicly available to anyone on the web, and doesn’t support login or authentication. `UNAUTHENTICATED` is a legacy value. We recommend using `AUTHENTICATED_WITH_PUBLIC_ACCESS_ENABLED` access to allow guest user access.
title	Field Type string Description Required. Represents the label of the content item.
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__site`.

{
  "type" : "sfdc_cms__site",
  "title" : "Capricorn_Coffee",
  "contentBody" : {
    "authenticationType" : "AUTHENTICATED"
  }
}

sfdc_cms__theme Folder

This content type folder contains one content subfolder, representing the site’s theme. The content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

<apiName>/content.json

Property	Description
activeBrandingSetId	Field Type content link Description Required. Represents the apiName of the site’s active branding set. Must reference an existing brandingSet with a type of `APP` in the same workspace.
definitionName	Field Type string Description Required. Represents the definition name of a theme. Must match the template’s theme definition name.
layouts	Field Type layout[] Description Required. Represents an array of the theme layouts available in the workspace and provides details about each theme layout. The template and features used in the workspace determine which layouts are required. For example, the `ServiceNotAvailable` layout is required if the site includes a Service Not Available page.
layouts.layoutId	Field Type content link Description Required. Represents the apiName of an available theme layout. Must refer to an existing theme layout in the same workspace.
layouts.layoutType	Field Type string Description Represents the name of the theme layout specified in Experience Builder. An inner theme layout is required. The inner theme layout is applied by default to all of a site’s pages except for login pages.
title	Field Type string Description Required. Represents the name of the theme.
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__theme`.

{
  "type" : "sfdc_cms__theme",
  "title" : "Build Your Own (LWR)",
  "contentBody" : {
    "activeBrandingSetId" : "Build_Your_Own_LWR",
    "definitionName" : "byo",
    "layouts" : [ {
      "layoutId" : "snaThemeLayout",
      "layoutType" : "ServiceNotAvailable"
    }, {
      "layoutId" : "scopedHeaderAndFooter",
      "layoutType" : "Inner"
    } ]
  }
}

sfdc_cms__themeLayout Folder

This content type folder contains one content subfolder for each theme layout in the site. Each content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

We recommend that you don’t add, reorder, or delete a component within a locked region using the DigitalExperienceBundle. To find out which regions are locked, in Experience Builder, view the Page Structure tab for the page that you’re working on. If the region that you’re modifying has a lock icon next to it, it’s a locked region.

Note

<apiName>/content.json

Property	Description
children	Field Type regionType[] Description Represents individual regions within a layout.
component	Field Type componentType Description Required. Contains the layout details for this theme layout in regions and components.
componentType.attributes	Field Type map Description A map of design attribute values used by the component definition to render the definition.
componentType.attributes.dxpStyle	Field Type map Description Lets you define visibility, padding, and margin values for a component. Visibility controls whether the component is visible on desktop, tablet, and mobile versions of your site. Margin and padding are map types that contain string properties for top, right, bottom, and left spacing. Padding controls space within a component. Margin controls space around the outside of a component. Units for margin and padding can be px, rem, or %, and all four spacing values must use the same unit. This field is available in API version 57.0 and later.
componentType.children	Field Type regionType[] Description Represents regions within a component.
componentType.definition	Field Type string Description Required. Represents the name of the Lightning Web Component (LWC) using the format namespace:componentName. Must be one of the theme layouts defined as part of the default theme, or use the target lightningCommunity__Theme_Layout. The default theme layouts differ per theme. For example, the Build Your Own (BYO) template uses the BYO theme, with the allowed theme layouts `community_byo:scopedHeaderandFooter` and `community_layout:simpleThemeLayout`.
componentType.id	Field Type UUID Description Required. Represents the UUID of a component.
componentType.scopedBrandingSetId	Field Type content link Description Represents the brandingSet that applies to this component. The brandingSet must be of type `SCOPED`. This property is applicable only if the component’s definitionName is `community_layout:section`.
componentType.customCssClasses	Field Type string Description Represents the custom CSS classes applied to the host element of the component. Must be a space-delimited list of valid CSS classes. This field is available in API version 59.0 and later.
componentType.title	Field Type string Description Represents a component variation name. Available in API version 59.0 and later.
componentType.type	Field Type string Description Required. Allowed values are: `component` `mutationComponent`
componentType.variations	Field Type componentType[] Description Represents a component variation within a component. Available in API version 59.0 and later.
componentVariationType.rule	Field Type rule type Description A visibility rule associated with a component variation. Available in API version 59.0 and later.
componentVariationType.variationId	Field Type string Description The unique ID of a component variation. Available in API version 59.0 and later.
contentOperations	Field Type contentOperationType Description A content operation of the variation or visibility type.
contentOperationsType.operations	Field Type operationsType[] Description Component visibility operation.
expressionCriteriaType.criterionNumber	Field Type integer Description The sequence number of an expression criteria. Available in API version 59.0 and later.
expressionCriteriaType.operator	Field Type string Description Operator of the criteria or condition in a visibility rule. Supported operators are: `EQUAL` `NE`: Does not equal `CONTAINS` `NC`: Does not contain `LT`: Less than `GT`: Greater than `LE`: Less than or equal to `GE`: Greater than or equal to `StartsWith`
expressionCriteriaType.resource	Field Type string Description The resource of the criteria or condition in a visibility rule.
expressionCriteriaType.value	Field Type object Description The value of the criteria or condition in a visibility rule. The value can be number, boolean, or string.
operationsType.isActive	Field Type boolean Description When `true`, the visibility operation is active.
operationsType.isHiddenOnOperationSuccess	Field Type boolean Description When `true`, the component is hidden when the operation is successful.
operationsType.rule	Field Type RuleType Description The component visibility rule.
operationsType.ruleToVariationList	Field Type componentVariationType[] Description Variation rules associated with a specific component ID. Only 15 variations are allowed in one ruleToVariationList, which means only 15 variations can correspond to a specific targetId. Available in API version 59.0 and later.
operationsType.targetId	Field Type string Description The component ID where the visibility rule is applied.
regionType.children	Field Type componentType[] Description Represents individual components within the region.
regionType.id	Field Type UUID Description Required. Represents the UUID of a region.
regionType.name	Field Type string Description Required. Represents the name of the region.
regionType.title	Field Type string Description Represents the label for a region.
regionType.type	Field Type string Description Required. `region` is the only allowed value.
regionType.variations	Field Type componentType[] Description Represents a component variation within a region. Available in API version 59.0 and later.
ruleType.criteriaType	Field Type string Description The condition or criteria type of the rule. Allowed values include `AllCriteriaMatch` and `AnyCriterionMatches`.
ruleType.customFormula	Field Type string Description A custom formula created from expression criteria for a visibility rule. Available in API version 59.0 and later.
ruleType.description	Field Type string Description The description of a visibility rule.
ruleType.expressionCriteria	Field Type expressionCriteriaType[] Description The expression criteria of a visibility rule.
ruleType.name	Field Type string Description The name of a visibility rule.
title	Field Type string Description Required. Represents the label of the content item.
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__themeLayout`.

{
  "type" : "sfdc_cms__themeLayout",
  "title" : "Service Not Available Theme Layout",
  "contentBody" : {
    "component" : {
      "id" : "50458146-12d8-4dd7-a37b-62f71615c1a0",
      "type" : "component",
      "children" : [ {
        "title": "Theme Header",
          "id": "8fc2497b-fae7-4570-bc69-63a7a229e6fc",
          "type": "region",
          "name": "header",
          "children": [
            {
              "id": "05224a3a-8044-9h2h-9187-b3f43155344d",
              "type": "component",
              "definition": "community_builder:htmlEditor",
              "attributes": {
                "richTextValue": "<div style=\"display: flex; justify-content: center; align-items: center; margin: 50px 0; flex-direction: column; text-align: center;\"><div style=\"background-image: url(assets/img/desert.svg); background-size: cover; background-position: center; height: 300px; width: 100%; max-width: 600px; min-width: 300px;\"></div><h1 class=\"slds-text-heading_medium slds-p-bottom_x-small\">Start Building Your Page</h1> <div>Drag and drop a component into the content slots.</div></div>"
              },
              "variations": [
                {
                  "id": "5d700461-4c2a-4930-98e5-366ec2a4d41e",
                  "title": "Variation Country USA",
                  "type": "mutationComponent",
                  "definition": "community_builder:htmlEditor",
                  "attributes": {
                    "richTextValue": "<div style=\"display: flex; justify-content: center; align-items: center; margin: 50px 0; flex-direction: column; text-align: center;\"><div style=\"background-image: url(assets/img/desert.svg); background-size: cover; background-position: center; height: 300px; width: 100%; max-width: 600px; min-width: 300px;\"></div><h1 class=\"slds-text-heading_medium slds-p-bottom_x-small\">Start Building Your Page</h1> <div>Drag and drop a component into the content slots.</div></div>"
                  }
                }
              ]
            }
          ]
        },
        {
        "title" : "Theme Footer",
        "id" : "05224a3a-8044-9h2h-9187-b3f43155344d",
        "type" : "region",
        "name" : "footer"
      } ],
      "definition" : "community_layout:simpleThemeLayout",
      "attributes": {}
    },    "contentOperations": {
      "operations": [
        {
          "targetId": "05224a3a-8044-9h2h-9187-b3f43155344d",
          "isHiddenOnOperationSuccess": false,
          "isActive": true,
          "rule": {
            "name": "708b6ff0-d50c-4cea-a492-kkjk4b174e86",
            "description": "",
            "criteriaType": "AllCriteriaMatch",
            "expressionCriteria": [
              {
                "resource": "User.Record.FirstName",
                "operator": "Equal",
                "value": "Clark"
              }
            ]
          }
        },
        {
          "targetId": "05224a3a-8044-9h2h-9187-b3f43155344d",
          "ruleToVariationList": [
            {
              "variationId": "5d700461-4c2a-4930-98e5-366ec2a4d41e",
              "rule": {
                "name": "6e1ea488-13d8-477a-a9d7-93f442cc7936",
                "description": "",
                "criteriaType": "CustomLogicMatches",
                "customFormula": "(1 && 3) || 2",
                "expressionCriteria": [
                  {
                    "resource": "User.Record.Country",
                    "operator": "Equal",
                    "value": "USA",
                    "criterionNumber": 1
                  },
                  {
                    "resource": "User.Record.City",
                    "operator": "Equal",
                    "value": "Chicago",
                    "criterionNumber": 2
                  },
                  {
                    "resource": "User.Record.PostalCode",
                    "operator": "Equal",
                    "value": "60131",
                    "criterionNumber": 3
                  }
                ]
              }
            }
          ]
        }
      ]
    }
  }
}

sfdc_cms__view Folder

This content type folder contains one content subfolder per view. Each content subfolder contains two or more JSON files:

_meta.json
content.json
If applicable, additional JSON files that represent variations of the content item

Each Experience Builder site is built from single-page applications, which are web apps that load a single HTML page. Single-page applications consist of multiple views that update the page dynamically as the user interacts with it. A view is made up of regions that contain other regions or components in the rendered page for the user. Single-page applications in your site are defined in the sfdc_cms__appPage folder.

Each content.json file in the sfdc_cms__view folder contains a hidden region named sfdcHiddenRegion. The hidden region contains a component with a definition of community_builder:seoAssistant that represents the SEO assistant component. This component corresponds to the SEO page properties that you can configure in Experience Builder and isn't visible on your pages. To improve search engine results, use the SEO assistant component to set the customHeadTags, description, and pageTitle properties for your public and custom site pages. You can’t edit the other properties associated with the SEO assistant component. To learn more about what the title, description, and custom head tags properties represent and which head tags are allowed, see SEO Page Properties in Experience Builder.

We recommend that you don’t add, reorder, or delete a component within a locked region using the DigitalExperienceBundle. To find out which regions are locked, in Experience Builder, view the Page Structure tab for the page that you’re working on. If the region that you’re modifying has a lock icon next to it, it’s a locked region.

Note

<apiName>/content.json

Property	Description
children	Field Type regionType[] Description Represents individual regions within a view.
component	Field Type componentType Description Required. Represents the view layout and contains regions and components that help render a view.
componentType.attributes	Field Type map Description A map of design attribute values used by the component definition to render the definition.
componentType.attributes.dxpStyle	Field Type map Description Lets you define visibility, padding, and margin values for a component. Visibility controls whether the component is visible on desktop, tablet, and mobile versions of your site. Margin and padding are map types that contain string properties for top, right, bottom, and left spacing. Padding controls space within a component. Margin controls space around the outside of a component. Units for margin and padding can be px, rem, or %, and all four spacing values must use the same unit. This field is available in API version 57.0 and later.
componentType.children	Field Type regionType[] Description Represents regions within a component.
componentType.definition	Field Type string Description Required. Represents the name of the Lightning Web Component (LWC) in the format namespace:componentName.
componentType.id	Field Type UUID Description Required. Represents the UUID of a component.
componentType.scopedBrandingSetId	Field Type content link Description Represents the brandingSet that applies to this component. The brandingSet must be of type `SCOPED`. This property is applicable only if the component’s definitionName is `community_layout:section`.
componentType.customCssClasses	Field Type string Description Represents the custom CSS classes applied to the host element of the component. Must be a space-delimited list of valid CSS classes. This field is available in API version 59.0 and later.
componentType.title	Field Type string Description Represents a component variation name. Available in API version 59.0 and later.
componentType.type	Field Type string Description Required. Allowed values are: `component` `mutationComponent`
componentType.variations	Field Type componentType[] Description Represents a component variation within a component. Available in API version 59.0 and later.
componentVariationType.rule	Field Type rule type Description A visibility rule associated with a component variation. Available in API version 59.0 and later.
componentVariationType.variationId	Field Type string Description The unique ID of a component variation. Available in API version 59.0 and later.
contentOperations	Field Type contentOperationType Description A content operation of the variation or visibility type.
expressionCriteriaType.criterionNumber	Field Type integer Description The sequence number of an expression criteria. Available in API version 59.0 and later.
contentOperationsType.operations	Field Type operationsType[] Description Component visibility operation.
expressionCriteriaType.operator	Field Type string Description Operator of the criteria or condition in a visibility rule. Supported operators are: `EQUAL` `NE`: Does not equal `CONTAINS` `NC`: Does not contain `LT`: Less than `GT`: Greater than `LE`: Less than or equal to `GE`: Greater than or equal to `StartsWith`
expressionCriteriaType.resource	Field Type string Description The resource of the criteria or condition in a visibility rule.
expressionCriteriaType.value	Field Type object Description The value of the criteria or condition in a visibility rule. The value can be number, boolean, or string.
operationsType.isActive	Field Type boolean Description When `true`, the visibility operation is active.
operationsType.isHiddenOnOperationSuccess	Field Type boolean Description When `true`, the component is hidden when the operation is successful.
operationsType.rule	Field Type RuleType Description The component visibility rule.
operationsType.ruleToVariationList	Field Type componentVariationType[] Description Variation rules associated with a specific component ID. Only 15 variations are allowed in one ruleToVariationList, which means only 15 variations can correspond to a specific targetId. Available in API version 59.0 and later.
operationsType.targetId	Field Type string Description The component ID where the visibility rule is applied.
regionType.children	Field Type componentType[] Description Represents individual components within the region.
regionType.id	Field Type UUID Description Required. Represents the UUID of a region.
regionType.name	Field Type string Description Required. Represents the name of the region.
regionType.title	Field Type string Description Represents the label for a region.
regionType.type	Field Type string Description Required. `region` is the only allowed value.
regionType.variations	Field Type componentType[] Description Represents a component variation within a region. Available in API version 59.0 and later.
ruleType.criteriaType	Field Type string Description The condition or criteria type of the rule. Allowed values include `AllCriteriaMatch` and `AnyCriterionMatches`.
ruleType.customFormula	Field Type string Description A custom formula created from expression criteria for a visibility rule. Available in API version 59.0 and later.
ruleType.description	Field Type string Description The description of a visibility rule.
ruleType.expressionCriteria	Field Type expressionCriteriaType[] Description The expression criteria of a visibility rule.
ruleType.name	Field Type string Description The name of a visibility rule.
themeLayoutType	Field Type string Description Required. Represents the apiName of the view’s active theme layout. Must reference an existing theme layout in the same workspace.
title	Field Type string Description Represents the name of the view. Limited to 80 characters. We recommend keeping the title value and the pageTitle value in sync. If you update either value for a view, ensure that you manually update the other value in the same content.json file to match. Note
type	Field Type string Description Required. Represents the content type. The only allowed value is `sfdc_cms__view`.
viewType	Field Type string Description Required. Identifies the type of view. The viewType value must be unique within a workspace. This value must match the routeType value in the corresponding route content item.

{
  "type" : "sfdc_cms__view",
  "title" : "Home",
  "contentBody" : {
    "themeLayoutType" : "Inner",
    "viewType" : "home",
    "component" : {
      "id" : "40c14c97-1846-4872-8e9e-cdf3d11beb34",
      "type" : "component",
      "children" : [ {
        "title" : "Content",
        "id" : "c507f23d-6e2a-457a-9656-2377846dd639",
        "type" : "region",
        "children" : [ {
          "id" : "21f99012-3a2f-488e-bf48-f782dc7b4300",
          "type" : "component",
          "children" : [ {
            "title" : "Column 1",
             "id": "05224a3a-8044-4bfb-9187-b3f43155344d",
            "type" : "region",
            "children" : [ {
              "id" : "05224a3a-8044-4bfb-9187-b3f43155344d",
              "type" : "component",
              "definition" : "community_builder:htmlEditor",
              "attributes" : {
                "dxpStyle" : {
                  "isVisible" : false,
                  "margin" : {
                    "bottom" : "20px",
                    "left" : "20px",
                    "right" : "20px",
                    "top" : "20px"
                  },
                  "padding" : {
                    "bottom" : "20px",
                    "left" : "20px",
                    "right" : "20px",
                    "top" : "20px"
                  }
                },
                "richTextValue" : "<div style=\"display: flex; justify-content: center; align-items: center; margin: 50px 0; flex-direction: column; text-align: center;\"><div style=\"background-image: url(assets/img/desert.svg); background-size: cover; background-position: center; height: 300px; width: 100%; max-width: 600px; min-width: 300px;\"></div><h1 class=\"slds-text-heading_medium slds-p-bottom_x-small\">Start Building Your Page</h1> <div>Drag and drop a component into the content slots.</div></div>"
              },
               "variations": [
                        {
                          "id": "5d700461-4c2a-4930-98e5-366ec2a4d41e",
                          "title": "Variation Country USA",
                          "type": "mutationComponent",
                          "definition": "community_builder:htmlEditor",
                          "attributes": {
                            "richTextValue": "<div style=\"display: flex; justify-content: center; align-items: center; margin: 50px 0; flex-direction: column; text-align: center;\"><div style=\"background-image: url(assets/img/desert.svg); background-size: cover; background-position: center; height: 300px; width: 100%; max-width: 600px; min-width: 300px;\"></div><h1 class=\"slds-text-heading_medium slds-p-bottom_x-small\">Start Building Your Page</h1> <div>Drag and drop a component into the content slots.</div></div>"
                          }
                        }
                      ]
              "customCssClasses": "myClass"
            } ],
            "name" : "col1"
          } ],
          "definition" : "community_layout:section",
          "attributes" : {
            "backgroundImageConfig" : "",
            "backgroundImageOverlay" : "rgba(0,0,0,0)",
            "sectionConfig" : "{\"UUID\":\"21f99012-3a2f-488e-bf48-f782dc7b4300\",\"columns\":[{\"UUID\":\"5019aeeb-6437-4194-8369-22c19aa45dc9\",\"columnName\":\"Column 1\",\"columnKey\":\"col1\",\"columnWidth\":\"12\",\"seedComponents\":null}]}"
          }
        } ],
        "name" : "content"
      }, {
        "title" : "sfdcHiddenRegion",
        "id" : "8157e041-9c41-460a-b596-c45babbbd53b",
        "type" : "region",
        "children" : [ {
          "id" : "2d536aae-a859-4264-ba9e-9a569daf7213",
          "type" : "component",
          "definition" : "community_builder:seoAssistant",
          "attributes" : {
            "customHeadTags" : "",
            "description" : "",
            "pageTitle" : "Home",
            "recordId" : "{!recordId}"
          }
        } ],
        "name" : "sfdcHiddenRegion"
      } ],
      "definition": "community_layout:sldsFlexibleLayout"
    },
    "contentOperations": {
      "operations": [
        {
          "targetId": "05224a3a-8044-4bfb-9187-b3f43155344d",
          "isHiddenOnOperationSuccess": false,
          "isActive": true,
          "rule": {
            "name": "a53bb452-003f-4015-a751-0403c70731a1",
            "description": "",
            "criteriaType": "AllCriteriaMatch",
            "expressionCriteria": [
              {
                "resource": "User.isGuest",
                "operator": "Equal",
                "value": false
              }
            ]
          }
        },
        {
          "targetId": "05224a3a-8044-9h2h-9187-b3f43155344d",
          "ruleToVariationList": [
            {
              "variationId": "5d700461-4c2a-4930-98e5-366ec2a4d41e",
              "rule": {
                "name": "6e1ea488-13d8-477a-a9d7-93f442cc7936",
                "description": "",
                "criteriaType": "CustomLogicMatches",
                "customFormula": "(1 && 3) || 2",
                "expressionCriteria": [
                  {
                    "resource": "User.Record.Country",
                    "operator": "Equal",
                    "value": "USA",
                    "criterionNumber": 1
                  },
                  {
                    "resource": "User.Record.City",
                    "operator": "Equal",
                    "value": "Chicago",
                    "criterionNumber": 2
                  },
                  {
                    "resource": "User.Record.PostalCode",
                    "operator": "Equal",
                    "value": "60131",
                    "criterionNumber": 3
                  }
                ]
              }
            }
          ]
        }
      ]
    }
  }
}

Login

Products

Experiences

Agentforce

CRM Products

Industries

Small Business

Data

Salesforce Platform

Customer Success

Partner Apps & Experts

Discover the #1 AI CRM

Discover the #1 AI CRM

Automotive

Communications

Engineering, Construction & Real Estate

Consumer Goods

Education

Energy & Utilities

Financial Services

Healthcare & Life Sciences

Manufacturing

Media

Nonprofit

Professional Services

Public Sector

Retail

Technology

Travel, Transportation & Hospitality

Explore Salesforce for industries.

Explore Salesforce for industries.

Customer Stories

Salesforce on Salesforce Stories

Trailblazer Stories

Explore success stories.

Explore success stories.

Learning on Trailhead

Events

Resources

Blogs

Become a Trailblazer.

Become a Trailblazer.

Help & Documentation

Communities

Services & Plans

Account Management

Questions? We can help.

Questions? We can help.

About Salesforce

Our Values

Our Impact

Careers

Newsroom

Legal

More Salesforce Brands

Hear our story.

Hear our story.

Events

Original Series

My List

Explore Salesforce+.

Explore Salesforce+.

Login

Products

Experiences

Contact Us

By phone

Online

Products

Experiences

Developer Centers

Salesforce Platform

Industries

Resources

Developer Tools

Build Skills

Extend Salesforce

Stay Up To Date

Community

Metadata API Developer Guide
