Document Reader Mappings (POST)

Permission

To use this resource, you must have the Intelligent Document Reader feature enabled in your Salesforce organization.

Usage

Use the corresponding template ID and the scan result ID for the OCR document scan result (ODSR) record of the document from which you want to fetch the values. Using the values from the document and field mapping from the template, you get the mapping between values and target field based on the key in both the document and template.

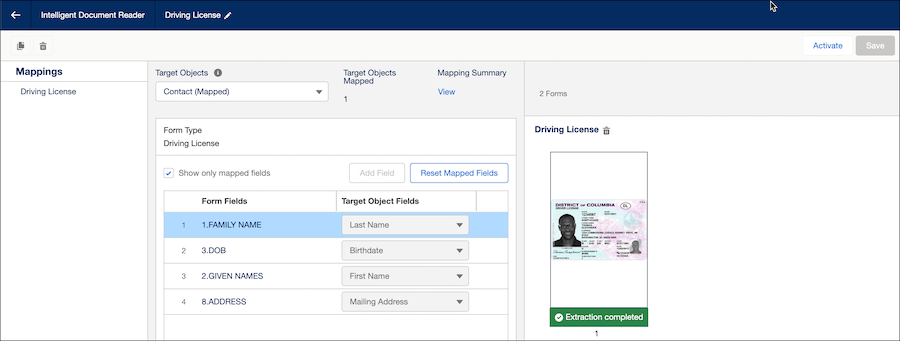

Here’s a sample of how the Salesforce UI displays mapping of form types to objects:

Resource

/connect/form-reader/mapping

Example

https://yourInstance.salesforce.com/services/data/vXX.X/connect
/form-reader/mapping

Available version

55.0

Requires Chatter

No

HTTP methods

POST

Request body for POST

JSON example

{
   "scanResultId" : "0ixS7000000001TIAQ",
   "templateId" : "48tS70000004C9DIAU"
}

Properties

Name	Type	Description	Required or Optional	Available Version
isExactMatch	Boolean	Indicates whether the mapping between values and target field must be returned only when the key matches in both the document and template (true) or not (false). Default value is true.	Optional	55.0
scanResultId	String	The ID of the OCR document scan result. The scan result contains the contents of a document after optical character recognition (OCR) processing.	Required	55.0
templateId	String	The ID of the OCR template. This represents the details of the mapping between a document and a Salesforce object using Intelligent Document Reader.	Required	55.0

Response body for POST

Form Reader Map Output
