Lightning Types Reference

This section describes the keywords available and the default editor and renderer associated with each of the Lightning types.

The lightning__booleanType Lightning type corresponds to the boolean type in a JSON schema. It produces only two values, true or false.

lightning__booleanType
Editor DescriptionWhen the type receives user input, it appears as a toggle in the UI.

Default editor example:

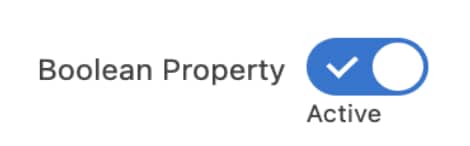

A toggle switch indicating that a Boolean property is active.
Renderer DescriptionWhen the type produces output, it’s rendered as a true or false value.

Default Renderer example:

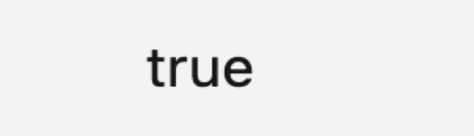

Text displaying the boolean value 'true'.

For information about boolean type, see Understanding JSON Schema: boolean.

The lightning__dateType Lightning type uses a string type to specify the date data in the format yyyy-mm-dd.

lightning__dateType
Editor DescriptionWhen the type receives user input, it appears as a date picker in the UI.

Default editor example:

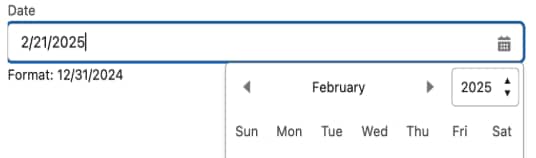

A date picker set to February 21, 2025.
Renderer DescriptionWhen the type produces output, it’s rendered as a date data.

Default Renderer example:

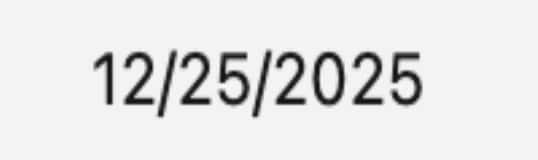

The date December 25, 2025.

The lightning__dateTimeType Lightning type describes the complex Lightning type lightning__objectType, which contains the dateTime and timeZone (optional) properties. Use the Lightning__dateTimeType Lightning type to specify date and time together.

Because lightning__dateTimeType is a standard complex Lightning type, the value of the type is represented as an object.

This table shows the properties of the object type that the lightning_dataTimeType Lightning type describes.

PropertyRequired or OptionalTypeDescription
dateTimeRequiredStringSpecify the date value in yyyy-MM-dd'T'HH:mm:ss.SSSZ format.
timeZoneOptionalStringSpecify the time zone information in IANA time zone database format.

This example shows an object with valid date and time values.

lightning__dateTimeType
Editor DescriptionWhen the type receives user input, it appears as a date picker and a time picker in the UI.

Default editor example:

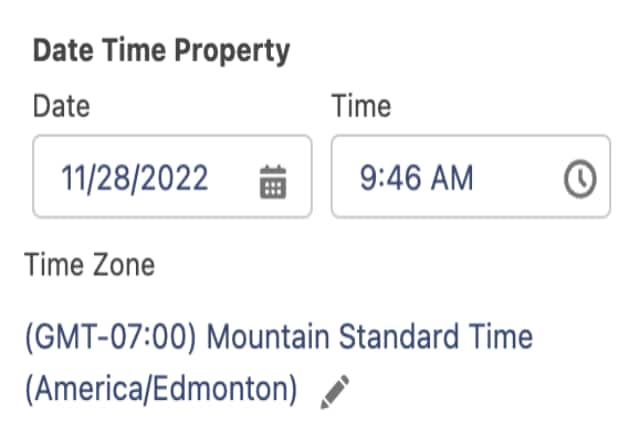

A form that displays a date, time, and time zone.
Renderer DescriptionWhen the type produces output, it’s rendered as a date and time data.

Default Renderer example:

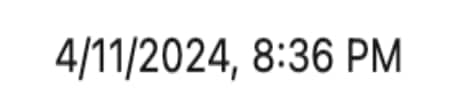

A timestamp indicating April 11, 2024, at 8:36 PM.

Use the lightning__integerType Lightning type to specify integers. The type applies to whole numbers. The lightning__integerType Lightning type corresponds to the integer type in a JSON schema.

lightning__intergerType
Editor DescriptionWhen the type receives user input, it appears as a numeric input field in the UI.

Default editor example:

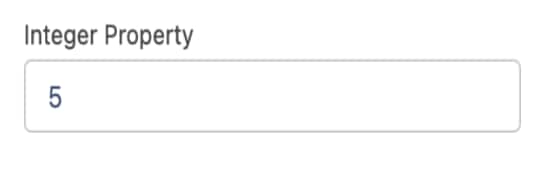

An integer field with the value 5 entered.
Renderer DescriptionWhen the type produces output, it’s rendered as a number display field.

Default Renderer example:
A text box displaying an integer value of 5.

For information about the integer type in JSON Schema, see Understanding JSON Schema: integer.

The lightning__multilineTextType Lightning type is similar to Lightning__textType, but it accommodates a larger maximum character length and an editor for larger text input. The lightning__multilineTextType Lightning type corresponds to the string type in a JSON schema.

lightning__multilineTextType
Editor DescriptionWhen the type receives user input, it appears as a multiline text input field on the UI.

Default editor example:

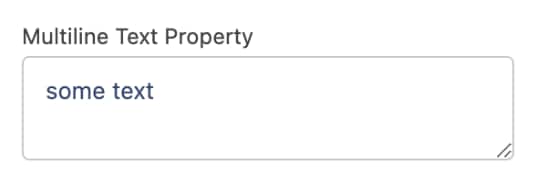

A multiline text field with sample text entered.
Renderer DescriptionWhen the type produces output, it’s rendered as a multiline text display field.

For information about string types in JSON Schema, see Understanding JSON Schema: string.

Use the lightning__numberType Lightning type to specify numbers. This type is validated as a decimal number, also known as a float in some programming languages. The lightning__numberType Lightning type corresponds to the number type in a JSON schema.

lightning__numberType
Editor DescriptionWhen the type receives user input, it appears as a decimal number input field in the UI.

Default editor example:

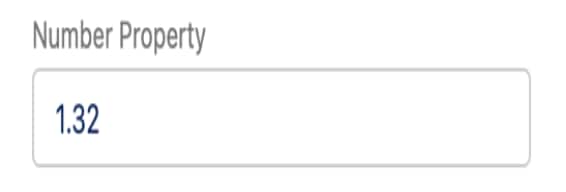

A decimal number field with the value 1.32 entered.
Renderer DescriptionWhen the type produces output, it’s rendered as a decimal number display field.

Default Renderer example:

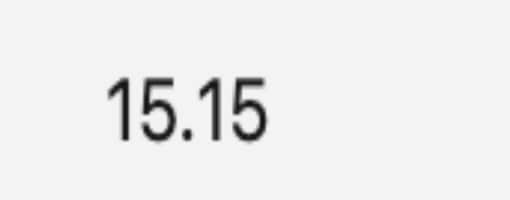

A text box displaying a decimal number value of 15.15.

For information about number type in JSON Schema, see Understanding JSON Schema: number.

Use the lightning__objectType lightning type to create object lightning types. This complex Lightning type can contain sub-properties, each with its own Lightning type.

With lightning__objectType, you can group other lightning types. The lightning__objectType lightning type corresponds to the object type defined in a JSON schema.

For information about object types in JSON Schema, see Understanding JSON Schema: object.

Use the lightning__richTextType Lightning type to add, edit, and delete rich text data. You can enter input text data of up to 100,000 characters.

lightning__richTextType
Editor DescriptionWhen the type receives user input, it appears as a rich text input field in the UI.

Default editor example:

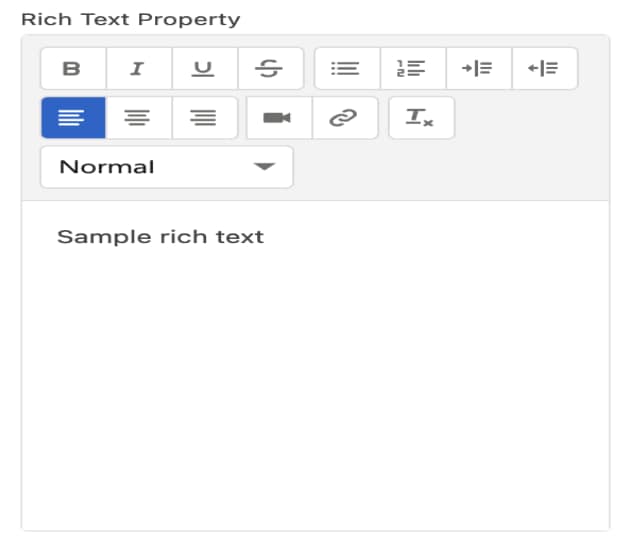

A rich text editor with formatting options and a sample text box.
Renderer DescriptionWhen the type produces output, it’s rendered as a rich text display field.

For information about rich text editor, see Rich Text Editor.

Use the lightning__textType Lightning type for text fields, such as titles and descriptions. You can enter input text data of up to 255 characters. The lightning__textType Lightning type corresponds to the string type in a JSON schema.

lightning__textType
Editor DescriptionWhen the type receives user input, it appears as a text input field on the UI.

Default editor example:

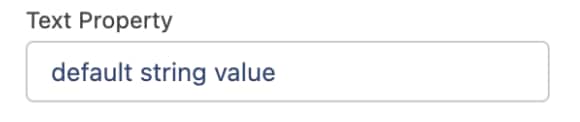

A text field with sample text entered.
Renderer DescriptionWhen the type produces output, it’s rendered as a text display field.

Default Renderer example:

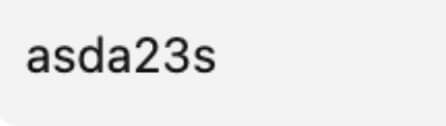

A text box displaying sample text.

Use the lightning__urlType Lightning type for URL values. To specify the url schemes that the type can validate against, configure lightning:allowedUrlSchemes parameter of the Lightning type.

lightning__urlType
Editor DescriptionWhen the type receives user input, it appears as a URL input field in the UI.

Default editor example:

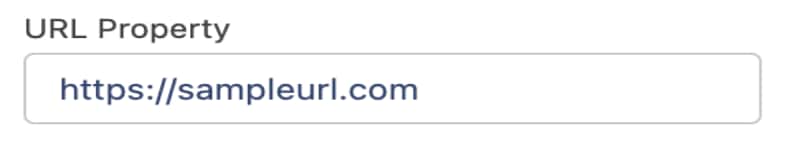

A field with a sample URL entered.
Renderer DescriptionWhen the type produces output, it’s rendered as a hyperlink.
