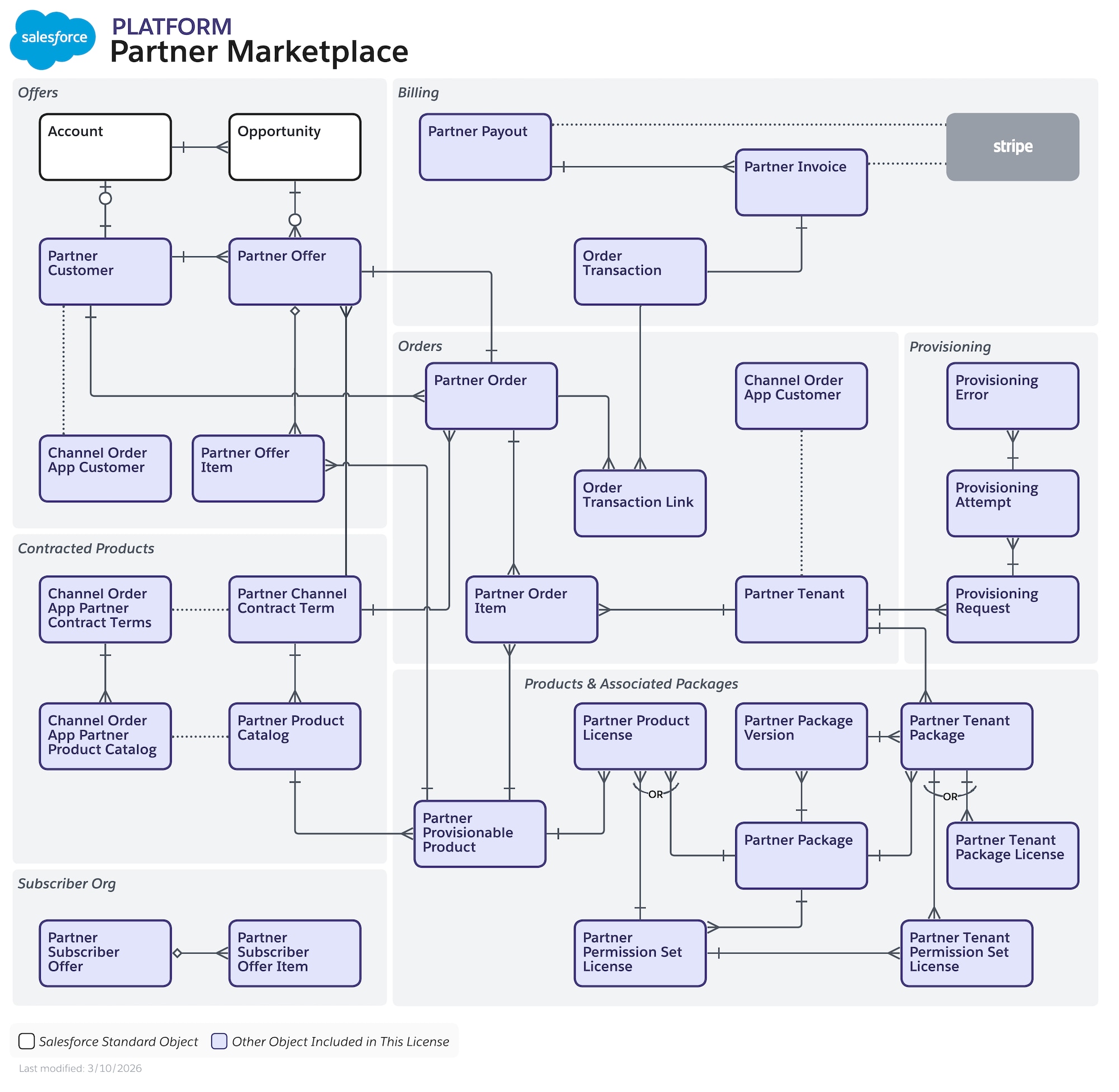

Partner Marketplace Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template (Note: May not reflect the most current version of the data model.)
Entities and relationships for transacting via the Partner Marketplace.
Account, Channel Order App Customer, Channel Order App Partner Contract Terms, Channel Order App Partner Product Catalog, Opportunity, Order Transaction, Order Transaction Link, Partner Channel Contract Term, Partner Customer, Partner Invoice, Partner Offer, Partner Offer Item, Partner Order, Partner Order Item, Partner Package, Partner Package Version, Partner Payout, Partner Permission Set License, Partner Product Catalog, Partner Product License, Partner Provisionable Product, Partner Subscriber Offer, Partner Subscriber Offer Item, Partner Tenant, Partner Tenant Package, Partner Tenant Package License, Partner Tenant Permission Set License, Provisioning Attempt, Provisioning Error, Provisioning Request
