Integrate the MobilePush Extension SDK

The MobilePush SDK version 9.0.0 introduces two push notification features -- Push Delivery events and a Carousel template. To function properly, these features require iOS Service Extensions and Content Extensions added as additional targets in the main app.

Then, integrate the MobilePush iOS Extension SDK MCExtensionSDK.

To integrate the MobilePush iOS Extension SDK, you need:

  • Service and Content Extension targets in your main app. Add them if missing.
  • MobilePush iOS SDK version 9.0.0.

This section will guide you through setting up and configuring the Notification Service Extension for use with the MobilePush iOS Extension SDK.

The notification service app extension is a separate bundle within the main app. To add a service extension target, perform these steps.

  1. In Xcode, go to File > New > Target.

  2. From the iOS > Application Extension section, select Notification Service Extension.

  3. Click Next.

  4. Configure the app extension and click Finish.

  5. In your project target’s General settings, verify that the new extension is listed under Frameworks, Libraries, and Embedded Content. If it’s not there, add it.

    Use the same Xcode-managed profile for the extension targets as the main project. Match the service extension version to the main app version whenever possible, and prefix the service extension bundle ID with the main app’s bundle ID. For example, if the main app’s bundle ID is com.salesforce.MyAwesomeApp, the service extension bundle ID can be com.salesforce.MyAwesomeApp.MyServiceExtension.

To integrate the MobilePush Extension SDK with the Service Extension, choose one of the following methods based on your project setup and preference.

To add the SDK as a dependency in your app's Podfile, follow the instructions for Adding pods to an Xcode project on the CocoaPods documentation site.

After the installation process, open the .xcworkspace file created by CocoaPods using Xcode.

Avoid opening .xcodeproj directly. Opening a project file instead of a workspace can lead to errors.

To integrate the MobilePush Extension SDK using SPM, follow these steps.

  1. In your Xcode project, go to the Package Dependencies tab of your project's settings.

  2. Add a package by clicking the plus sign (+).

  3. Search for the package MCExtensionSDK using the URL https://github.com/salesforce-marketingcloud/extension-sdk-ios.git

  4. Select the package to include it in your app.

To integrate the extension SDK manually:

  1. Download the SDK MCExtensionSDK.

  2. Copy the MCExtensionSDK directory from your downloads folder to your project directory.

    To keep the binary in a different location, adjust the Framework Search Path (FRAMEWORK_SEARCH_PATHS) build settings.

  3. Open your application project, select the Service Extension target, and add MCExtensionSDK to the Frameworks, Libraries, and Embedded Content section in the target’s General settings.

Remove all autogenerated code and inherit the main class of the Service Extension from the SFMCNotificationService class.

Make sure that you don’t implement any UNNotificationServiceExtension methods, such as func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) → Void) and open func serviceExtensionTimeWillExpire()

The MCExtensionSDK manages the UNNotificationServiceExtension lifecycle methods. However, you may need to customize behavior, such as:

  • Enabling or disabling logging and configuring log levels
  • Downloading and attaching images or videos to push notifications
  • Adding custom key-value pairs to the notification’s userInfo
  • Performing other necessary operations

To enable or disable logging and configure log levels, override the sfmcProvideConfig() method: override func sfmcProvideConfig() → SFNotificationServiceConfig

To execute custom code, override func sfmcDidReceive(_ request: UNNotificationRequest, mutableContent: UNMutableNotificationContent, withContentHandler contentHandler: @escaping ([AnyHashable : Any]?) → Void) to process notifications, such as downloading media or adding custom key-value pairs.

This code example depicts a Swift-based implementation where SFMCNotificationService is extended to configure logging through sfmcProvideConfig() and customize push notification handling in sfmcDidReceive(_:mutableContent:withContentHandler:), allowing for operations like adding custom key-value pairs.

Here's an example of an Objective-C-based implementation where SFMCNotificationService is extended to configure logging using sfmcProvideConfig and handle custom push notification processing using sfmcDidReceiveRequest:mutableContent:withContentHandler:, enabling actions such as adding custom key-value pairs to the notification payload.

While customizing the func sfmcDidReceive(_ request: mutableContent: withContentHandler:), don't modify mutableContent.request.content.userInfo directly, as this can cause an exception. Instead, use contentHandler to add custom key-value pairs, as shown in the examples. Since the content extension has a limited runtime, minimize the custom processing time. Additionally, make sure that the completion handler is invoked along every possible return path.

To display rich media notifications, you must add and configure a Content Extension to your project.

Notification Content Extensions run as separate processes within your app, providing isolation and enhancing security. Follow these steps to add a content extension target.

  1. In Xcode, go to File > New > Target.

  2. From the iOS > Application Extension section, select Notification Content Extension.

  3. Click Next.

  4. Provide a name and configure your extension settings.

  5. Click Finish.

  6. Verify that the newly created extension is listed under the Frameworks, Libraries, and Embedded Content section of your target's General settings. If it’s not present, add it manually.

The process for integrating the MCExtensionSDK into your Content Extension mirrors the steps taken for your Service Extension. For detailed instructions, see Integrate the Extension SDK with the Service Extension.

After successful integration, confirm that the library is listed within the Frameworks, Libraries, and Embedded Content section of your Content Extension's target settings.

Remove all Apple-generated boilerplate code and inherit the main class of the Content Extension from SFMCNotificationViewController, as shown in these examples.

SFMCNotificationViewController fully manages UI rendering. Don't implement or override any UIViewController methods in the principal class of the content extension, as doing so can interfere with UI rendering.

Configure your project and content extension's Info.plist file to register the correct notification category, build the rich push notification UI in code using the Extension SDK, and enable user interaction. These steps ensure the content extension is correctly triggered and displays the intended rich UI as defined in the Engagement UI.

To set up and synchronize the notification category between your content extension's Info.plist file and the Engagement UI, perform these steps.

  1. Contact your Engagement admin to obtain the correct category name for the Rich UI template.
  2. In your content extension's Info.plist file, replace the value for UNNotificationExtensionCategory under NSExtension > NSExtensionAttributes. For illustrative purposes, the category is set to AwesomeAppRichUICategory in the screenshot in the next section.

iOS only activates the content extension if the category value in the push notification payload matches the one defined in Info.plist > NSExtension > NSExtensionAttributes > UNNotificationExtensionCategory. Make sure that the category value in the Engagement UI matches the value in your content extension's Info.plist file. Otherwise, the Carousel template won't show.

Unlike Apple's auto-generated content extension template, MCExtensionSDK builds the notification UI programmatically instead of using an Interface Builder file. Follow these steps to modify the project to build the rich push notification UI entirely in code using the MCExtensionSDK, instead of using a storyboard.

  1. Remove the storyboard reference by deleting the NSExtensionMainStoryboard item from Info.plist > NSExtension.

  2. Add the NSExtensionPrincipalClass key to Info.plist > NSExtension

    • Value type: String
    • Value: $(PRODUCT_MODULE_NAME).<MainClassName>

    For Objective-C project, specify the class name directly.

  3. Remove MainInterface.storyboard from your project.

Add this key to your content extension's Info.plist file.

  • Key: UNNotificationExtensionUserInteractionEnabled
  • Value type: Boolean
  • Value: YES

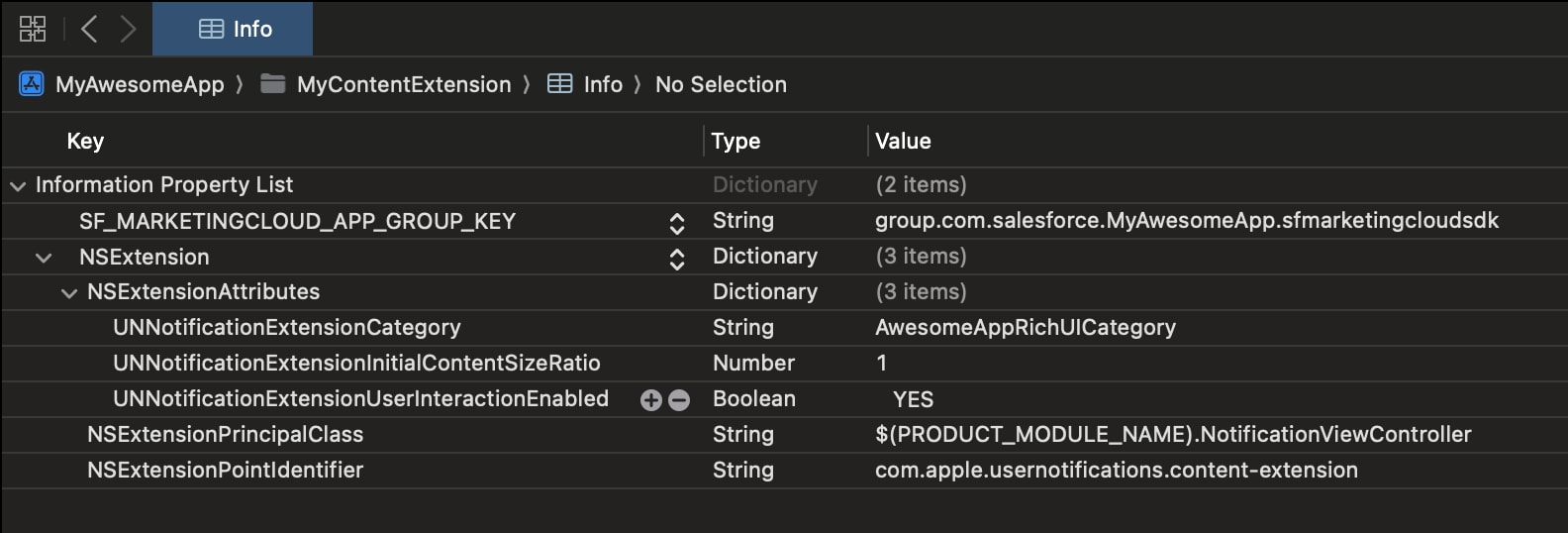

This screenshot illustrates an Info.plist file in a Swift-based implementation with configured NSExtensionAttributes and NSExtensionPrincipalClass.

This screenshot illustrates an Info.plist file in an Objective-C-based implementation with configured NSExtensionAttributes and NSExtensionPrincipalClass.

You can further customize extension behavior by:

  • Configuring logging
  • Adjusting the HTTP request timeout

For Swift-based implementations, implement the sfmcProvideConfig() method to define custom log levels and HTTP timeout settings for the extension.

In Objective-C, use the sfmcProvideConfig method to configure logging behavior and HTTP request timeout values for the extension.

The default timeout for network requests is 15 seconds. Additionally, iOS blocks insecure (non-HTTPS) URLs by default. To allow loading Carousel images from HTTP URLs, configure an exception.

The Main App, Service Extension, and Content Extension run in three separate processes. iOS limits inter-process communication (IPC) between the extensions and the main app. To ensure that Push Delivery events and the Carousel template work as intended, the MobilePush iOS SDK and the MobilePush iOS Extension SDK rely on the App Groups capability.

  1. Select your main app target and navigate to the Signing & Capabilities tab.

  2. Add the App Groups capability.

  3. Add a new app group container or use an existing one. Note down this container name. If you're creating a new container, we recommend using a name in this format:

    group.<bundle-id>.sfmarketingcloudsdk

  4. Add the container name to a new Info.plist key with these details:

    • Info.plist key name: SF_MARKETINGCLOUD_APP_GROUP_KEY
    • Info.plist value type: String
    • Info.plist value: The app group container name (for example, group.com.salesforce.MyAwesomeApp.sfmarketingcloudsdk)

Repeat the steps listed in the previous section to add app groups for your Service Extension and Content Extension targets. When adding app groups, make sure you use the same container name as prescribed in the previous step. Additionally, update each extension’s Info.plist with the same SF_MARKETINGCLOUD_APP_GROUP_KEY key and value used in the main app.

Make sure that SF_MARKETINGCLOUD_APP_GROUP_KEY value is identical in all three Info.plist files: Main App, Service extension, and Content Extension.

If a Carousel image has an associated URL action, tapping the image triggers the URL handling delegate. For instructions on configuring URL handling, see Customize Push Notification Functionality for iOS Apps.
