Working with Action Links

Use action links to integrate Salesforce and third-party systems into the Chatter feed. An action link is an indicator on a feed element that targets an API, a Web page, or a file and is represented by a button in the Salesforce Chatter feed UI. Enabling users to work in the feed is the most powerful way to ensure that they adopt and engage in Chatter.

Action Links are currently available to select customers through a pilot program. To be nominated to join this pilot program, contact salesforce.com. Additional terms and conditions may apply to participate in the pilot program. Please note that pilot programs are subject to change, and as such, we cannot guarantee acceptance into this pilot program or a particular time frame in which this feature can be enabled. Any unreleased services or features referenced in this document, press releases, or public statements are not currently available and may not be delivered on time or at all. Customers who purchase our services should make their purchase decisions based upon features that are currently available.

Note

Action links are one type of platform action. These are the types of platform actions:
  • ActionLink—An indicator on a feed element that targets an API, a Web page, or a file and is represented by a button in the Salesforce Chatter feed UI.
  • AnchorAction—A preconfigured record action (such as Map, Read News, or View Website) in the Salesforce1 action bar.
  • CustomButton—When clicked, opens a URL or a Visualforce page in a window or executes JavaScript.
  • QuickAction—An action on the Chatter publisher on the home page, on the Chatter tab, in Chatter groups, and on record detail pages. Quick actions also appear in the action bar in Salesforce1. Quick actions are called publisher actions in Salesforce Help.
  • StandardButton—A prebuilt Salesforce button such as New, Edit, and Delete.
Get the platform actions, including action links, associated with a feed element and manage action links with these resources.
Resource HTTP Methods Tasks
/chatter/feed-elements/feedElementId​/capabilities/associated-actions GET Get all the platform actions associated with a feed element.
/connect/action-link-group-definitions POST Create an action link group definition.
/connect/action-link-group-definitions​/actionLinkGroupId GET, DELETE Get information about or delete an action link group definition through the connected app that created the action link group definition. Deleting an action link group definition removes all references to it from feed elements.
/connect/action-link-groups​/actionLinkGroupId GET Get information about an action link group including state for the context user.
/connect/action-links/actionLinkId GET, PATCH Get information about or update the status of an action link.
/chatter/feed-elements POST Post a feed item with associated action link groups. Associate up to 10 action link groups with a feed item in the request body you pass in this POST request.
/connect/action-links/actionLinkId​/diagnostic-info GET Get any diagnostic information that is returned from the REST endpoint when an action link has been executed. Diagnostic information is given only for users who can access the action link.

There are many ways to use action links to integrate with the Chatter feed. Here are a few examples.

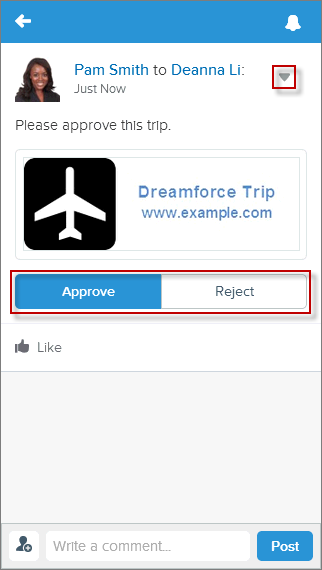

In this use case, a third-party app posted a feed item containing action links let a user approve, reject, clone, or view a travel request:Approve and Reject action linksAction links in the drop-down menu

Define action links in groups. Action links within a group are mutually exclusive. You can associate up to 10 action link groups with a post. In this example, “Approve” and “Reject” are in one group and “Clone” and “View” are in another. Specify whether an action link group displays in the post or in the post’s drop-down menu. “Approve” and “Reject” display in the post. “Clone” and “View” display in the drop-down menu.

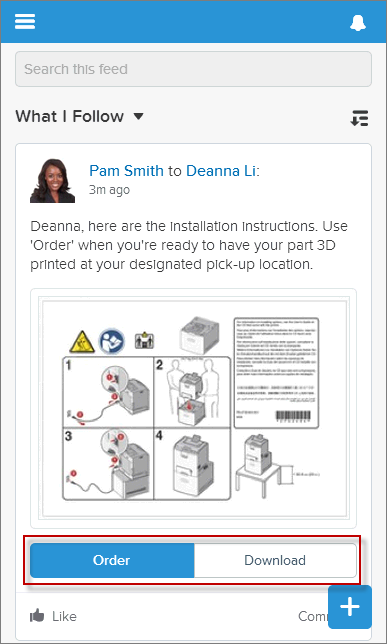

Action links are user-specific and can be private or public. In this example, Pam makes a post to Deanna’s feed asking her to download some instructions and then place an order. Deanna can see the “Order” and “Download” action links in the post in her feed:Order and Download action links on a feed item

Pam can see the post, but she can see only the “Download” action link because she doesn’t have permission to place the order:Download action link

Authentication and Security

Action links use HTTPS exclusively.

API details are stored with encryption, and obfuscated for clients.

When you define an action link, you specify a URL (actionUrl) and the HTTP headers (headers) required to make a request to that URL. If the URL requires authentication, include OAuth information in the HTTP headers. This sample Action Link Group Definition Input request body contains one action link with OAuth information in the actionLinks property:
1POST /connect/action-link-group-definitions
2
3{
4    "actionLinks": [
5    {
6       "actionType" : "Api",
7       "actionUrl" : "https://www.example.com/api/v1/cofirm",
8       "groupDefault" : "true",
9       "headers" : [
10       {
11          "name" : "Authorization",
12          "value" : "OAuth 00DRR0000000N0g!ARoAQMZyQtsP1Gs27EZ8hl7vdpYXH5O5rv1
13                        VNprqTeD12xYnvygD3JgPnNR._nmE6thZakAbBVJUsjUInMUaKMlkNKaWXdHO"
14       },
15       {
16          "name" : "Content-Type",
17          "value" : "application/json"
18       }],
19       "labelKey" : "Confirm",
20       "method" : "Post",
21       "requiresConfirmation" : "true"
22    }],
23    "executionsAllowed" : "OncePerUser",
24    "category" : "Primary",
25    "expirationDate" :  "2014-09-09T18:45:39.000Z"
26}

When you define an action link group, you must specify an expiration date (expirationDate). After that date, the action links in the group can’t be executed. It’s a good idea to set the expiration date of the action link group to the same value as the expiration date of the OAuth token so that users won’t try to execute the action link and get an OAuth error.

Although this example doesn’t include them, there are two additional properties you can use to secure an action link. Use the excludeUserId property to exclude a single user from executing an action. Use the userId property to specify the ID of a user who alone can execute the action. If you don’t specify a userId property or if you pass null, any user can execute the action. You can’t specify both excludeUserId and userId for an action link.

Versioning

To avoid issues due to upgrades or changing functionality in your API, we recommend using versioning when defining action links. For example, the actionUrl property in the Action Link Definition Input should look like https://www.example.com/api/v1/exampleResource. If your API isn’t versioned, you can use the expirationDate property of the Action Link Group Definition Input to avoid issues due to upgrades or changing functionality in your API.

Errors

Use the Action Link Diagnostic Information resource (/connect/action-links/actionLinkId/diagnostic-info) to return status codes and errors from executing Api and AsyncApi action links. Diagnostic info is given only for users who can access the action link.

Localized Labels

Action links use a predefined set of localized labels specified in the labelKey property of the Action Link Definition Input request body. (You can see an example in Authentication and Security.)

For a list of labels, see Action Links Labels.

Type of Action Links

There are four types of action links:
  • Api—The action link calls a synchronous API.
  • ApiAsync—The action link calls an asynchronous API.
  • Download—The action link downloads a file.
  • Ui—The action link takes the user to a user interface.

Specify the action link type in the actionType property. You can see an example in Authentication and Security.

Different types of action links have different workflows to set the status. See /connect/action-links/actionLinkId for more information.
