Rewriting URLs for Force.com Sites

Sites provides built-in logic that helps you display user-friendly URLs and links to site visitors. Create rules to rewrite URL requests typed into the address bar, launched from bookmarks, or linked from external websites. You can also create rules to rewrite the URLs for links within site pages. URL rewriting not only makes URLs more descriptive and intuitive for users, it allows search engines to better index your site pages.

For example, let's say that you have a blog site. Without URL rewriting, a blog entry's URL might look like this: http://myblog.force.com/posts?id=003D000000Q0PcN

With URL rewriting, your users can access blog posts by date and title, say, instead of by record ID. The URL for one of your New Year's Eve posts might be: http://myblog.force.com/posts/2009/12/31/auld-lang-syne

You can also rewrite URLs for links shown within a site page. If your New Year's Eve post contained a link to your Valentine's Day post, the link URL might show: http://myblog.force.com/posts/2010/02/14/last-minute-roses

To rewrite URLs for a site, create an Apex class that maps the original URLs to user-friendly URLs, and then add the Apex class to your site.

To learn about the methods in the Site.UrlRewriter interface, see UrlRewriter.

Creating the Apex Class

The Apex class that you create must implement the Force.com provided interface Site.UrlRewriter. In general, it must have the following form:

Consider the following restrictions and recommendations as you create your Apex class:

Class and Methods Must Be Global

The Apex class and methods must all be global.

Class Must Include Both Methods

The Apex class must implement both the mapRequestUrl and generateUrlFor methods. If you don't want to use one of the methods, simply have it return null.

Rewriting Only Works for Visualforce Site Pages

Incoming URL requests can only be mapped to Visualforce pages associated with your site. You can't map to standard pages, images, or other entities.

To rewrite URLs for links on your site's pages, use the !URLFOR function with the $Page merge variable. For example, the following links to a Visualforce page named myPage:

Visualforce <apex:form> elements with forceSSL=”true” aren't affected by the urlRewriter.

Note

See the “Functions” appendix of the Visualforce Developer's Guide.

Encoded URLs

The URLs you get from using the Site.urlRewriter interface are encoded. If you need to access the unencoded values of your URL, use the urlDecode method of the EncodingUtil Class.

Restricted Characters

User-friendly URLs must be distinct from Salesforce URLs. URLs with a three-character entity prefix or a 15- or 18-character ID are not rewritten.

You can't use periods in your rewritten URLs.

Restricted Strings

You can't use the following reserved strings as part of a rewritten URL path:

apexcomponent
apexpages
ex
faces
flash
flex
google
home
ideas
images
javascript
js
lumen
m
resource
search
secur
services
servlet
setup
sfc
sfdc_ns
site
style
vote
widg

You can't use the following reserved strings at the end of a rewritten URL path:

/htmldbcthumbnail
/dbcthumbnail
/aura
/auraResource
auraFW
/m
/mobile
/l
/HelpAndTrainingDoor

Relative Paths Only

The PageReference.getUrl() method only returns the part of the URL immediately following the host name or site prefix (if any). For example, if your URL is http://mycompany.force.com/sales/MyPage?id=12345, where “sales” is the site prefix, only /MyPage?id=12345 is returned.

You can't rewrite the domain or site prefix.

Unique Paths Only

You can't map a URL to a directory that has the same name as your site prefix. For example, if your site URL is http://acme.force.com/help, where “help” is the site prefix, you can't point the URL to help/page. The resulting path, http://acme.force.com/help/help/page, would be returned instead as http://acme.force.com/help/page.

Query in Bulk

For better performance with page generation, perform tasks in bulk rather than one at a time for the generateUrlFor method.

Enforce Field Uniqueness

Make sure the fields you choose for rewriting URLs are unique. Using unique or indexed fields in SOQL for your queries may improve performance.

You can also use the Site.lookupIdByFieldValue method to look up records by a unique field name and value. The method verifies that the specified field has a unique or external ID; otherwise it returns an error.

Here is an example, where mynamespace is the namespace, Blog is the custom object name, title is the custom field name, and myBlog is the value to look for:

Adding URL Rewriting to a Site

Once you've created the URL rewriting Apex class, follow these steps to add it to your site:

From Setup, enter Sites in the Quick Find box, then select Sites.
Click New or click Edit for an existing site.
On the Site Edit page, choose an Apex class for URL Rewriter Class.
Click Save.

If you have URL rewriting enabled on your site, all PageReferences are passed through the URL rewriter.

Note

Code Example

In this example, we have a simple site consisting of two Visualforce pages: mycontact and myaccount. Be sure you have “Read” permission enabled for both before trying the sample. Each page uses the standard controller for its object type. The contact page includes a link to the parent account, plus contact details.

Before implementing rewriting, the address bar and link URLs showed the record ID (a random 15-digit string), illustrated in the “before” figure. Once rewriting was enabled, the address bar and links show more user-friendly rewritten URLs, illustrated in the “after” figure.

The Apex class used to rewrite the URLs for these pages is shown in Example URL Rewriting Apex Class, with detailed comments.

Example Site Pages

This section shows the Visualforce for the account and contact pages used in this example.

The account page uses the standard controller for accounts and is nothing more than a standard detail page. This page should be named myaccount.

The contact page uses the standard controller for contacts and consists of two parts. The first part links to the parent account using the URLFOR function and the $Page merge variable; the second simply provides the contact details. Notice that the Visualforce page doesn't contain any rewriting logic except URLFOR. This page should be named mycontact.

Example URL Rewriting Apex Class

The Apex class used as the URL rewriter for the site uses the mapRequestUrl method to map incoming URL requests to the right Salesforce record. It also uses the generateUrlFor method to rewrite the URL for the link to the account page in a more user-friendly form.

Before and After Rewriting

Here is a visual example of the results of implementing the Apex class to rewrite the original site URLs. Notice the ID-based URLs in the first figure, and the user-friendly URLs in the second.

Site URLs Before Rewriting

The numbered elements in this figure are:

The original URL for the contact page before rewriting
The link to the parent account page from the contact page
The original URL for the link to the account page before rewriting, shown in the browser's status bar

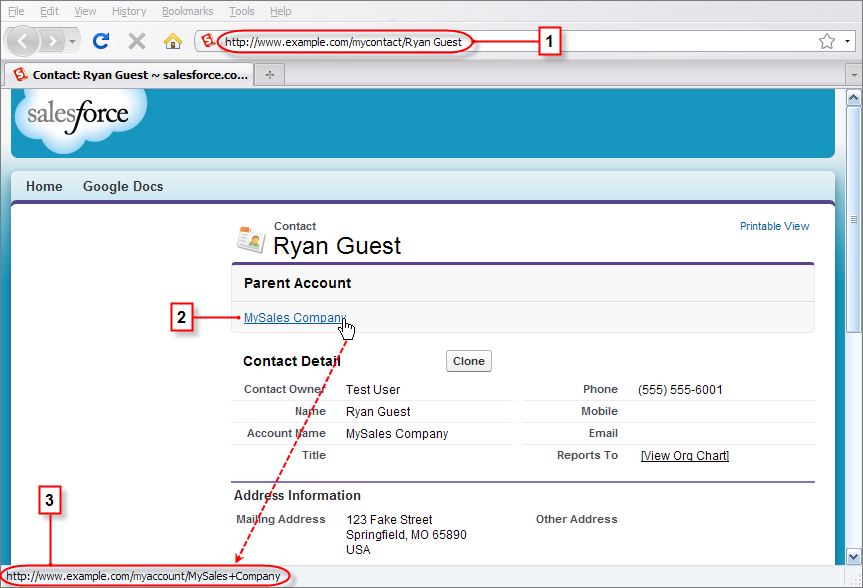

Site URLs After Rewriting
