How Are Apps Authenticated with the Web Server OAuth Authentication Flow?

Apps that are hosted on a secure server use the web server authentication flow. A critical aspect of the web server flow is that the server must be able to protect the consumer secret. You can use code challenges and verifier values in the flow to prevent authorization code interception.

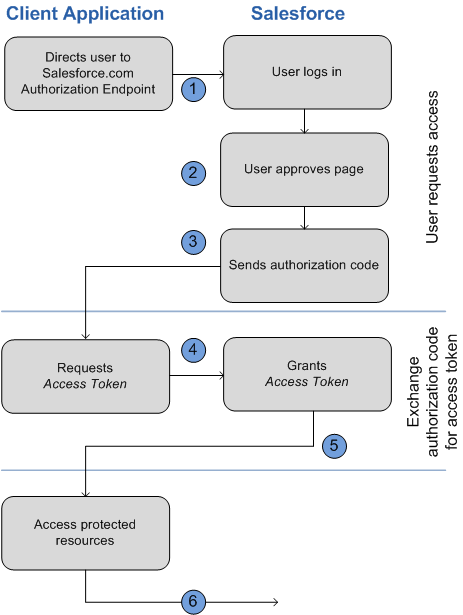

In this flow, the client application requests the authorization server to redirect the user to another web server or resource. The web server or resource authorizes the user, and sends the application an authorization code. The application uses the authorization code to request an access token. The following shows the steps for this flow.

The application redirects the user to the appropriate Salesforce authorization endpoint, such as https://login.salesforce.com/services/oauth2/authorize. The following parameters are required:

Parameter	Description
`response_type`	Must be `code` for this authentication flow.
`client_id`	The Consumer Key from the connected app definition.
`redirect_uri`	The Callback URL from the connected app definition.

The following parameters are optional:

Parameter	Description
`code_challenge`	Specifies the SHA256 hash value of the code_verifier value in the token request to help prevent authorization code interception attacks. The hash value must be base64url encoded as defined here: https://tools.ietf.org/html/rfc4648#section-5. If the code_challenge value is provided in the authorization request and a code_verifier value is provided in the token request, Salesforce compares the code_challenge to the code_verifier. If the code_challenge is invalid or doesn’t match, the login fails with the `invalid_request` error code. If the code_challenge value is provided in the authorization request, but a code_verifier value is not provided in the token request, the login fails with the `invalid_grant` error code. Encode this value with a base64urlonly once. Note
`display`	Changes the login page’s display type. Valid values are: `page`—Full-page authorization screen. This value is the default if none is specified. `popup`—Compact dialog optimized for modern web browser popup windows. `touch`—Mobile-optimized dialog designed for modern mobile devices such as Android and iPhone. `mobile`—Mobile optimized dialog designed for mobile devices such as BlackBerry OS 5 that don’t support touch screens.
`immediate`	Determines whether the user is prompted for login and approval. Values are either `true` or `false`. Default is `false`. If set to `true`, and if the user is currently logged in and has previously approved the application, the approval step is skipped. If set to `true` and the user is not logged in or has not previously approved the application, the session is immediately terminated with the `immediate_unsuccessful` error code.
`login_hint`	Provides a valid username value to pre-populate the login page with the username. For example:`login_hint=username@company.com`. If a user already has an active session in the browser, then the login_hint parameter does nothing; the active user session continues.
`nonce`	Specifies a value to be returned in the response; this parameter is useful for detecting "replay" attacks. Optional with the openid scope for getting a user ID token.
`prompt`	Specifies how the authorization server prompts the user for reauthentication and reapproval. This parameter is optional. The only values Salesforce supports are: `login`—The authorization server must prompt the user for reauthentication, forcing the user to log in again. `consent`—The authorization server must prompt the user for reapproval before returning information to the client. It is valid to pass both values, separated by a space, to require the user to both log in and reauthorize. For example: `1?prompt=login%20consent`
`scope`	Specifies what data your application can access. See “Scope Parameter Values” in Salesforce Help for more information.
`state`	Specifies any additional URL-encoded state data to be returned in the callback URL after approval.

This example shows an authorization URL:

1https://login.salesforce.com/services/oauth2/authorize?response_type=code
2&client_id=3MVG9lKcPoNINVBIPJjdw1J9LLM82HnFVVX19KY1uA5mu0QqEWhqKpoW3svG3X
3HrXDiCQjK1mdgAvhCscA9GE&redirect_uri=https%3A%2F%2Fwww.mysite.com%2F
4code_callback.jsp&state=mystate

The user logs into Salesforce with their credentials. The user is interacting with the authorization endpoint directly, so the application never sees the user’s credentials. After successfully logging in, the user is asked to authorize the application. If the user has already authorized the application, this step is skipped.

After Salesforce confirms that the client application is authorized, the end user’s web browser is redirected to the callback URL specified by the redirect_uri parameter. Salesforce appends authorization information to the redirect URL with the following values:

Parameters	Description
`code`	Authorization code the consumer must use to obtain the access and refresh tokens. The authorization code expires after 15 minutes.
`state`	The state value that was passed in as part of the initial request, if applicable.

This example shows a callback URL with authorization information:

1https://www.mysite.com/authcode_callback?code=aWekysIEeqM9PiT
2hEfm0Cnr6MoLIfwWyRJcqOqHdF8f9INokharAS09ia7UNP6RiVScerfhc4w%3D%3D

The application extracts the authorization code and passes it in a request to Salesforce for an access token. This request is a POST request sent to the appropriate Salesforce token request endpoint, such as https://login.salesforce.com/services/oauth2/token. The following parameters are required:

Parameter	Description
`grant_type`	Value must be `authorization_code` for this flow.
`client_secret`	The Consumer Secret from the connected app definition. Required unless the Require Secret for Web Server Flow setting is not enabled in the connected app definition. If a `client_secret` isn’t required, and the connected app sends it in the authorization request, Salesforce attempts to validate it, anyway.
`client_id`	The Consumer Key from the connected app definition.
`redirect_uri`	The Callback URL from the connected app definition.
`code`	Authorization code the consumer must use to obtain the access and refresh tokens. The authorization code expires after 15 minutes.

The following parameters are optional:

Parameter	Description
`client_assertion`	Instead of passing in client_secret you can choose to provide a client_assertion and client_assertion_type. If a client_secret parameter is not provided, Salesforce checks for the client_assertion and client_assertion_type automatically. The value of client_assertion must be a typical JWT bearer token, signed with the private key associated with the OAuth consumer’s uploaded certificate. Only the RS256 algorithm is supported. For more information on using client_assertion, see the OpenID Connect specifications for the private_key_jwt client authentication method.
`client_assertion_type`	Provide this value when using the client_assertion parameter. The value of client_assertion_type must be `urn:ietf:params:oauth:client-assertion-type:jwt-bearer`.
`code_verifier`	Specifies 128 bytes of random data with high enough entropy to make it difficult to guess the value to help prevent authorization code interception attacks. The value also must be base64url encoded as defined here: https://tools.ietf.org/html/rfc4648#section-5. If the code_verifier value is provided in the token request and a code_challenge value is in the authorization request, Salesforce compares the code_verifier to the code_challenge. If the code_verifier is invalid or doesn’t match, the login fails with the `invalid_grant` error code. If the code_verifier value is provided in the token request, but a code_challenge value was not provided in the authorization request, the login fails with the `invalid_grant` error code. Encode the value with a base64url only once. Note
`format`	Expected return format. The default is `json`. Values are: `urlencoded` `json` `xml` The return format can also be specified in the header of the request using one of the following: `Accept: application/x-www-form-urlencoded` `Accept: application/json` `Accept: application/xml`

This example shows an access token POST request that sends the client_id and client_secret in the body.

1POST /services/oauth2/token HTTP/1.1
2Host: login.salesforce.com
3grant_type=authorization_code&code=aPrxsmIEeqM9PiQroGEWx1UiMQd95_5JUZ
4VEhsOFhS8EVvbfYBBJli2W5fn3zbo.8hojaNW_1g%3D%3D&client_id=3MVG9lKcPoNI
5NVBIPJjdw1J9LLM82HnFVVX19KY1uA5mu0QqEWhqKpoW3svG3XHrXDiCQjK1mdgAvhCs
6cA9GE&client_secret=1955279925675241571&
7redirect_uri=https%3A%2F%2Fwww.mysite.com%2Fcode_callback.jsp

Instead of sending client credentials as parameters in the body of the POST request, Salesforce supports the HTTP Basic authentication scheme. The scheme requires the client_id and client_secret in the authentication header of the request as follows:

Authorization: Basic64Encode(client_id:secret)

The client_id and client_secret are separated with a colon (:). For more information, see The OAuth 2.0 Authorization Framework.

This example shows an access token POST request that uses HTTP Basic authentication scheme (rather than sending client credentials in the POST request’s body).

1POST /services/oath2/token HTTP/1.1
2Host: login.salesforce.com
3Authorization:  Basic client_id=3MVG9lKcPoNINVBIPJjdw1J9LLM82HnFVVX19KY1uA5mu0
4QqEWhqKpoW3svG3XHrXDiCQjK1mdgAvhCscA9GE&client_secret=1955279925675241571
5
6grant_type=authorization_code&code=aPrxsmIEeqM9PiQroGEWx1UiMQd95_5JUZ
7VEhsOFhS8EVvbfYBBJli2W5fn3zbo.8hojaNW_1g%3D%3D&
8redirect_uri=https%3A%2F%2Fwww.mysite.com%2Fcode_callback.jsp

If the client_id and client_secret are sent in the POST’s body, the authentication header is ignored.

Note

If this request is successful, the server returns a response body that contains the following:

Parameters	Description
`access_token`	Access token that acts as a session ID that the application uses for making requests. This token should be protected as though it were user credentials.
`token_type`	Value is `Bearer` for all responses that include an access token.
`refresh_token`	Token that can be used in the future to obtain new access tokens. This value is a secret. Treat it like the user's password and use appropriate measures to protect it. Warning
`instance_url`	Identifies the Salesforce instance to which API calls are sent.
`id`	Identity URL that can be used to both identify the user and query for more information about the user. Can be used in an HTTP request to get more information about the end user.
`issued_at`	When the signature was created, represented as the number of seconds since the Unix epoch (00:00:00 UTC on 1 January 1970).
`signature`	Base64-encoded HMAC-SHA256 signature signed with the `client_secret` (private key) containing the concatenated ID and `issued_at` value. Use the `signature` to verify that the identity URL wasn’t modified when the server sent it.

This example shows a JSON response body:

1{"id":"https://login.salesforce.com/id/00Dx0000000BV7z/005x00000012Q9P",
2"issued_at":"1278448101416",
3"refresh_token":"5Aep8614iLM.Dq661ePDmPEgaAW9Oh_L3JKkDpB4xReb54_
4pZebnUG0h6Sb4KUVDpNtWEofWM39yg==",
5"instance_url":"https://yourInstance.salesforce.com/",
6"signature":"CMJ4l+CCaPQiKjoOEwEig9H4wqhpuLSk4J2urAe+fVg=",
7"access_token":"00Dx0000000BV7z!AR8AQP0jITN80ESEsj5EbaZTFG0R
8NBaT1cyWk7TrqoDjoNIWQ2ME_sTZzBjfmOE6zMHq6y8PIW4eWze9JksNEkWUl.Cju7m4"}

The application uses the provided access token and refresh token to access protected user data.
