External Data

You can integrate external data into CRM Analytics to make the data available for queries from lenses and designer.

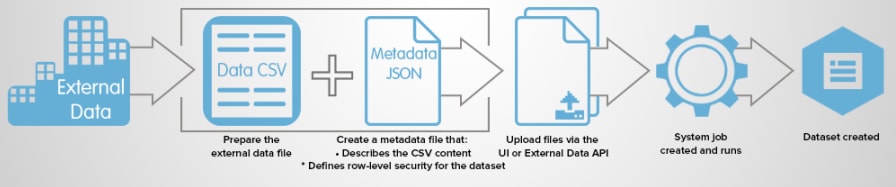

Diagram of the process for uploading external data to CRM Analytics

The External Data API enables you to upload external data files to CRM Analytics. The External Data API can upload .csv files, and you can optionally specify the structure of your data by defining metadata in JSON format.

The External Data API is available in API version 31 and later.

The high-level steps for uploading external data by using the API are:

  1. Prepare your data in CSV format, and then create a metadata file to specify the structure of the data.
  2. Connect programmatically to your Salesforce organization.
  3. Configure the upload by inserting a row into the InsightsExternalData object, and then set input values such as the name of the dataset, the format of the data, and the operation to perform on the data.
  4. Split your data into 10-MB chunks, and then upload the chunks to InsightsExternalDataPart objects.
  5. Start the upload by updating the Action field in the InsightsExternalData object.
  6. Monitor the InsightsExternalData object for status updates, and then verify that the file upload was successful.

  • External Data API Limits

    When working with the External Data API, consider the following limits, in addition to the general CRM Analytics limits.

  • Prepare Data Files

    To upload external data from .csv files into a dataset, first prepare your data files.

  • Connect to Salesforce

    After preparing your data files, the next step in loading external data into CRM Analytics is to connect to your Salesforce organization by using standard Salesforce APIs.

  • Configure the Upload

    Configure the external data upload by inserting a row into the InsightsExternalData object and setting configuration values.

  • Add the Data

    When uploading external data files, you can use the InsightsExternalDataPart object to load the data in smaller chunks.

  • Manage the Upload

    After you’ve created a header and uploaded the data parts by using the InsightsExternalData and InsightsExternalDataPart objects, update the Action field on the header object to Process to start processing the data.

  • Update the Data

    After you upload data into a dataset, update it by adding, upserting, or removing data.

  • External Data Metadata Overview

    To upload external data into a CRM Analytics dataset, make sure that you have prepared your data and metadata files.
