Creating Custom Console Components That Interact with Case Feed

Available in: Enterprise, Performance, Unlimited, and Developer Editions

Custom console components let you extend the functionality of the Salesforce console, and you can create those components so they interact with any actions you’ve added to the Case Feed publisher. For example, you could develop a component that generates customized, pre-written text, adds that text to a new post in the Case Feed portal action, and submits the post to the portal, all with one click.

These events can be published through the publish method on the Sfdc.canvas.publisher object in the Publisher JavaScript API to allow console components to interact with Case Feed publisher actions.

publisher.selectAction

Description	Payload Values	Available Versions
Selects the specified action and puts it in focus.	`actionName`—The action to select. Supported values are: `action_name`–A create, log a call, or custom Visualforce publisher action. For example, `action_name` for a create contact action might be `create_contact`. `Case.CaseComment`—Case Feed portal action `Case.ChangeStatus`—Case Feed change status action `Case.Email`—Case Feed email action `Case.LogACall`—Case Feed log a call action	Available in API versions 29.0 and later.

Code Sample

This code snippet selects the email action and puts it in focus.

Sfdc.canvas.publisher.publish({name:"publisher.selectAction",payload:{actionName:"Case.Email"}});

publisher.setActionInputValues

Description	Payload Values	Available Versions
Specifies which fields on the action should be populated with specific values, and what those values are.	`actionName`—The action on which fields should be populated. The available field values depend on which action you specify. `emailFields`–Available on `Case.Email`; the standard available fields on the Case Feed email action: `to` `cc` `bcc` `subject` `body` `template` `portalPostFields`–Available on `Case.CaseComment`; the standard available fields on the Case Feed portal action: `body` `sendEmail` (boolean) `targetFields`–Available on `Case.ChangeStatus` and `Case.LogACall`; the standard available fields on those actions. On `Case.ChangeStatus`: `commentBody` On `Case.LogACall`: `description` `parentFields`—Available on `Case.ChangeStatus`, `Case.Email`, and `Case.LogACall`; standard and custom fields on case. Lookup fields aren’t supported.	Available in API versions 29.0 and later.

Code Sample

This code snippet populates the fields on an email message with predefined values, and sets the status of the associated case to Closed.

1swfobject.registerObject("clippy.codeblock-0", "9");Sfdc.canvas.publisher.publish({name:"publisher.setActionInputValues",payload:{actionName:"Case.Email",parentFields: {Status:{value:"Closed"}, emailFields: {to:{value:"customer@company.com"},cc:{value:"customer2@company.com"},bcc:{value:"supervisor@support.com"},
2subject:{value:"Your Issue Has Been Resolved"},body:{value:"Thank you for working with our support department. We've resolved your issue and have closed this ticket, but please feel free to contact us at any time if you encounter this problem again or need other assistance."}}}});

invokeAction

Description	Payload Values	Available Versions
Triggers the submit function (such as sending an email or posting a portal comment) on the specified action.	`actionName`—The action on which to trigger the submit function.	Available in API versions 29.0 and later.

Code Sample

This code snippet triggers the submit function on the email action, sending an email message and generating a related feed item.

Sfdc.canvas.publisher.publish({name:"publisher.invokeAction",payload:{actionName:"Case.Email"}});

customActionMessage

Description	Payload Values	Available Versions
Passes a custom event to a custom action. Supported for Visualforce-based custom actions only.	`actionName`—The Visualforce custom action to pass the event to. `message`–The event to pass to the custom action.	Available in API versions 29.0 and later.

Code Sample

This code snippet passes the Hello world event to the action my_custom_action.

Sfdc.canvas.publisher.publish({name:"publisher.customActionMessage",payload:{actionName:"my_custom_action",message:"Hello world"}}

This code snippet is what my_custom_action uses to listen to the Hello world event.

Sfdc.canvas.publisher.subscribe([{name : 'publisher.customActionMessage', onData : function(e) {alert(e.message);}}]);

Use Case

Universal Cable serves millions of phone and cable customers throughout the United States, with 4000 support agents in call centers of varying sizes around the country. Universal wanted to make it easy for agents to access the company’s extensive collection of articles in Salesforce Knowledge and share them with customers through email to help keep support costs in check.

Universal used the events on publish to create a custom console component that:

Displays a list of Knowledge articles, from most recently published to oldest.
Lets agents view an article by clicking its title.
Lets agents add the full, formatted text of an article to a message in the Case Feed email action by clicking the Email button in the console component.

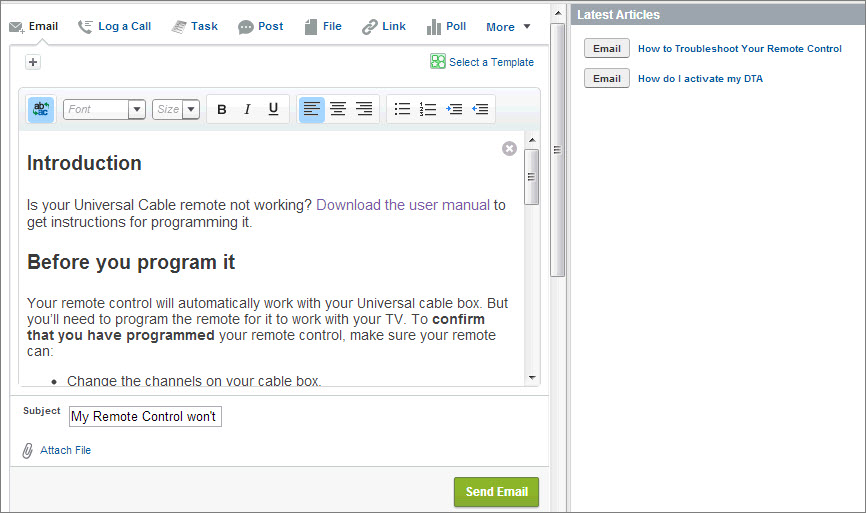

Case Feed with Knowledge console component

Code Sample

This code sample shows an Apex class containing a custom controller used by the Visualforce page below.

1swfobject.registerObject("clippy.codeblock-1", "9");public with sharing class KBController {
2   public List<FAQ__kav> articles {get; set;}
3
4    public KBController() {
5       articles = [select knowledgearticleid, id, title, content__c from FAQ__kav where
6      publishstatus = 'Online' and language='en_US' order by lastpublisheddate];
7   }
8}

This code sample shows the Visualforce page that’s used as the custom console component in the use case above.

1swfobject.registerObject("clippy.codeblock-2", "9");<apex:page sidebar="false" controller="KBController">
2   <script type='text/javascript' src='/canvas/sdk/js/publisher.js'/>
3   <style>
4      .sampleTitle { background-color: #99A3AC;color:#FFFFFF;font-size:1.1em;font-weight:
5      bold;padding:3px 6px 3px 6px; }
6      .sampleHeader { }
7      .sampleArticleList { min-width: 250px; padding: 8px 0 5px 0;}
8      .sampleUl { padding: 0; margin: 0; list-style: none;}
9      .sampleLi { display: block; position: relative; margin: 0;}
10      .sampleRow { min-height: 16px; padding: 4px 10px;}
11      .emailBtn { margin: 1px 1px 1px 3px; padding: 3px 8px; color: #333;
12         border: 1px solid #b5b5b5; border-bottom-color: #7f7f7f; background: #e8e8e9;
13         font-weight: bold; font-size: .9em; -moz-border-radius: 3px;
14         -webkit-border-radius: 3px; order-radius: 3px; }
15      .emailBtn:active { background-position: right -60px; border-color: #585858;
16         border-bottom-color: #939393; }
17      .sampleArticle { padding-left: 4px; padding-bottom: 2px; font-weight: bold;
18         font-size: 1em; color: #222; }
19      .sampleLink { color: #015ba7; text-decoration: none; font-weight: bold;
20         font-size: .9em; }
21   </style>
22   <script>
23      function emailArticle(content) {
24         Sfdc.canvas.publisher.publish({name: 'publisher.selectAction',
25         payload: { actionName: 'Case.Email'}});
26         Sfdc.canvas.publisher.publish({name: 'publisher.setActionInputValues',
27         payload: {
28            actionName: 'Case.Email',
29            emailFields: { body: { value:content, format:'richtext', insert: true}}
30         }});
31     }
32   </script>
33   <div style="margin-left:-10px;margin-right:-10px;">
34      <div class="sampleTitle">Latest Articles</div>
35      <div class="sampleHeader" style=""></div>
36      <div class="sampleArticleList">
37         <apex:repeat value="{!articles}" var="article">
38            <ul class="sampleUl">
39               <li class="sampleLi">
40                  <div class="sampleRow">
41                  <div style="display:none;" id="content_{!article.id}">
42                     <apex:outputText value="{!article.content__c}" escape="false"/>
43                  </div>
44                     <input type="button" title="Email" value="Email" class="emailBtn"
45                        onclick="emailArticle(document.getElementById('content_{!article.id}').innerHTML);"/>
46                           <span class="sampleArticle">
47                               <a href="/{!article.knowledgearticleid}" title="{!article.title}" class="sampleLink">
48                                  {!article.title}</a>
49                           </span>
50                  </div>
51               </li>
52            </ul>
53         </apex:repeat>
54      </div>
55   </div>
56</apex:page>
