Limit the Number of Concurrent Sessions with Login Flows

Install the Concurrent-Sessions Package

The concurrent-sessions unmanaged package includes the elements and sources of a login flow solution. The package includes a plug-in that retrieves the number of concurrent sessions for a user. If the pending login exceeds the concurrent session limit, the flow blocks it.

You can customize the package, for example, changing the session limit. By default, the package uses a session limit of 1.

1. To install the concurrent-sessions package, go to https://login.salesforce.com/packaging/installPackage.apexp?p0=04to0000000WR73.
2. After you install the package, you can connect the login flow to user profiles. Assign the flow to profiles for which you want to limit concurrent sessions.

Creating the Package Components

Let’s take a closer look at the components in the concurrent-sessions package. If the package didn’t exist, here’s how you can create the plug-in and the login flow.

SessionPlugin is an Apex class that retrieves the number of concurrent sessions. The class queries the AuthSession table and sums the number of sessions, excluding temporary sessions.

1. In Setup, enter Apex Classes in the Quick Find box, and select Apex Classes.
2. To create a class, click New.
3. Copy and paste this code as the Apex class content.
   1global class SessionPlugin implements Process.Plugin
   2{
   3   global Process.PluginDescribeResult describe()
   4   {
   5      Process.PluginDescribeResult result = new Process.PluginDescribeResult();
   6      result.description='This plug-in returns the no of concurrent sessions for the current user';
   7      result.tag='Identity';
   8
   9      result.inputParameters = new List<Process.PluginDescribeResult.InputParameter> {
   10      };
   11
   12      result.outputParameters = new List<Process.PluginDescribeResult.OutputParameter> {
   13           new Process.PluginDescribeResult.OutputParameter('CONCURRENT_NO',
   14               Process.PluginDescribeResult.ParameterType.INTEGER)
   15      };
   16
   17       return result;
   18   }
   19
   20   global Process.PluginResult invoke(Process.PluginRequest request)
   21   {
   22       Map<String, Object> result = new Map<String, Object>();
   23       List<AuthSession> sessions;
   24       Integer no = 0;
   25
   26       String userid   = UserInfo.getUserId();
   27
   28       sessions = [Select Id, ParentId, SessionType from AuthSession where UsersId=:userid];
   29       for (AuthSession s : sessions)
   30       {
   31           // Count only parent and non-temp sessions
   32           if(s.ParentId == null && s.SessionType != 'TempUIFrontdoor' )
   33           {
   34                   no++;
   35           }
   36       }
   37
   38       result.put('CONCURRENT_NO', no);
   39
   40       return new Process.PluginResult(result);
   41   }
   42}

Creating the Login Flow

1. Open Flow Builder. From Setup, enter Flows in the Quick Find box, select Flows, and click New Flow.
2. Select Screen Flow, and click Create.

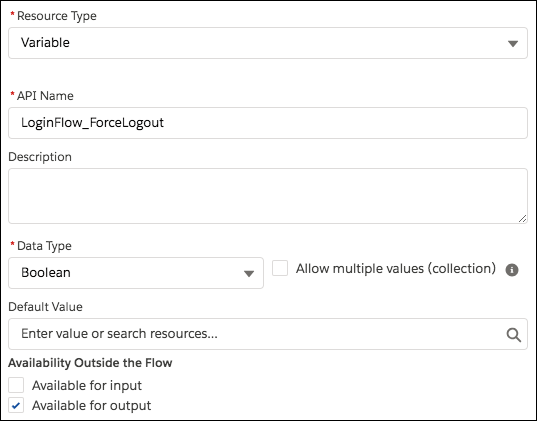

3. From the toolbox, on the Manager tab, click New Resource. Create a LoginFlow_ForceLogout output boolean variable. When set to true, this variable blocks the login attempt.

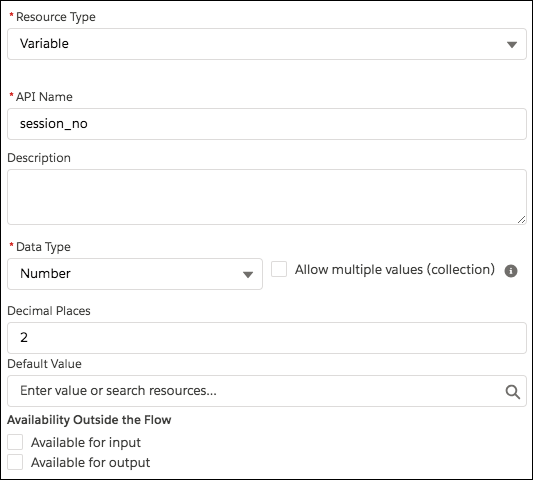

4. Create a numeric variable to store the allowed number of concurrent sessions for the user.

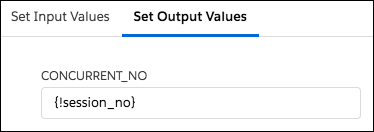

5. From the toolbox, open the Elements tab. Drag an Apex Action (Legacy) element onto the canvas, and select the SessionPlugin legacy Apex action. Store the action’s CONCURRENT_NO parameter in the session_no flow variable.

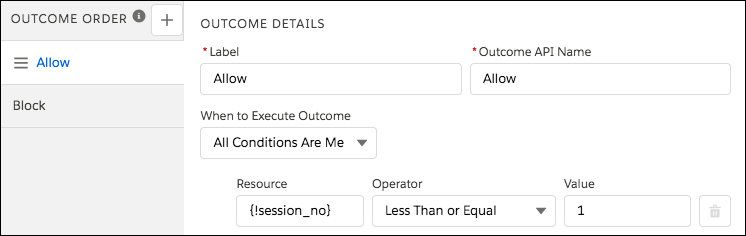

6. Add a Decision element that has two outcomes. If the login exceeds the limit, the outcome is Block, which is the default. Otherwise, the outcome is Allow.

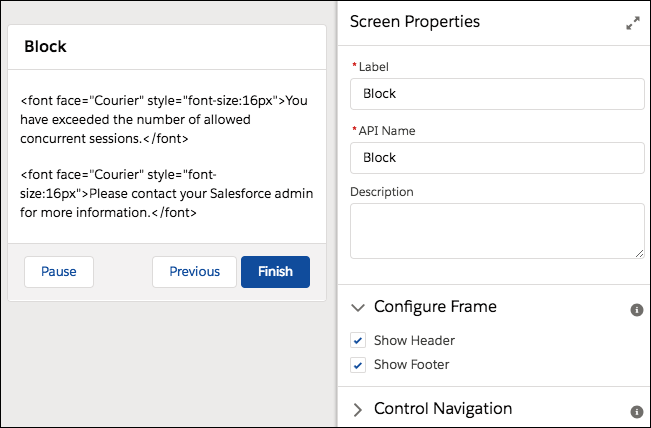

7. Add a Screen element that tells the user they’ve exceeded the allowed number of concurrent sessions.
8. Add an Assignment element that sets the LoginFlow_ForceLogout output variable to true.

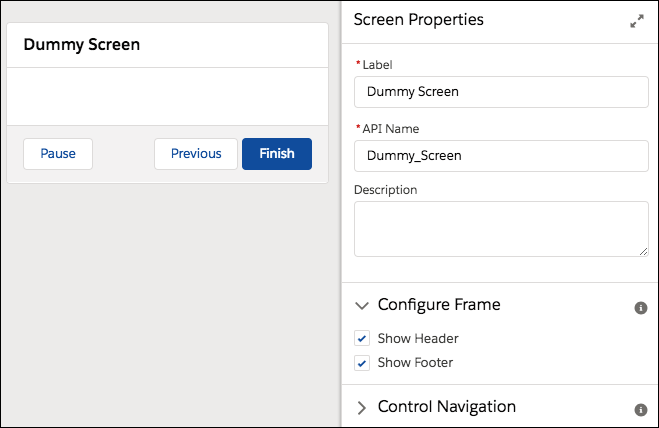

9. Add a screen with no contents.

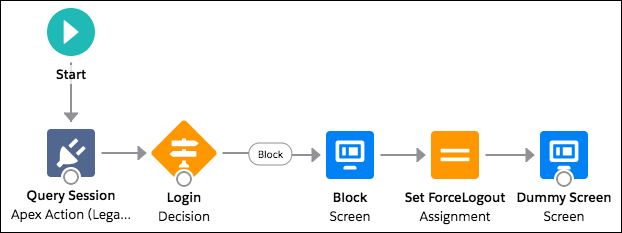

10. Connect the elements together. When you connect the decision to the first screen, choose the Block outcome.
11. Save the flow.

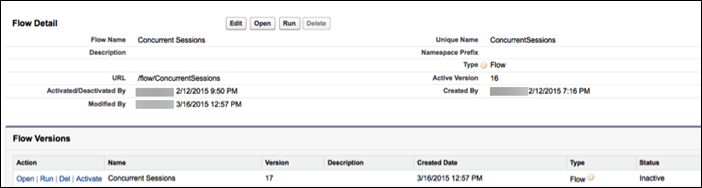

12. Activate the flow.
13. Connect the login flow to a user profile. Best practice is to create a dedicated test user with a test profile.
14. Log out, and then log in as the test user and test the flow.

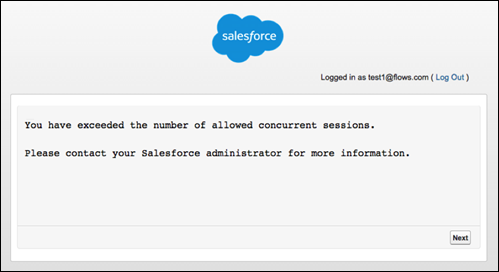

    When you assign the profile to users, Salesforce redirects them at login through the flow. When a login attempt exceeds the limit, the user sees the block screen and can’t log in. Here’s an example of the block screen in Lightning Experience.
