Create a Custom Lightning Page Template Component
Every standard Lightning page is associated with a default template component, which
defines the page’s regions and what components the page includes. Custom Lightning page template
components let you create page templates to fit your business needs with the structure and
components that you define. Once implemented, your custom template is available in the Lightning
App Builder’s new page wizard for your page creators to use.
1. Build the Template Component Structure
A custom template is an Aura component bundle that should include at least a .cmp resource and a design resource. The .cmp resource must implement a template interface, and declare an attribute of type Aura.Component[] for each template region. The Aura.Component[] type defines the attribute as a collection of components.
Here’s an example of a two-column app page template .cmp resource that uses the lightning:layout component and the Salesforce Lightning Design System (SLDS) for styling.
When the template is viewed on a desktop, its right column takes up 30% (4 SLDS columns).
The left column takes up the remaining 70% of the page width. On non-desktop form factors,
the columns display as
50/50.
1<aura:component implements="lightning:appHomeTemplate" description="Main column
2 and right sidebar. On a phone, the regions are of equal width">
3 <aura:attribute name="left" type="Aura.Component[]" />
4 <aura:attribute name="right" type="Aura.Component[]" />
5
6 <div>
7 <lightning:layout>
8 <lightning:layoutItem flexibility="grow"
9 class="slds-m-right_small">
10 {!v.left}
11 </lightning:layoutItem>
12 <lightning:layoutItem size="{! $Browser.isDesktop ? '4' : '6' }"
13 class="slds-m-left_small">
14 {!v.right}
15 </lightning:layoutItem>
16 </lightning:layout>
17 </div>
18
19</aura:component>The description attribute on the aura:component tag is optional, but recommended. If you define a description, it displays as the template description beneath the template image in the Lightning App Builder new page wizard.
2. Configure Template Regions and Components in the Design Resource
The design resource controls what kind of page can be built on the template. The design
resource specifies:
- What regions a page that uses the template must have.
- What kinds of components can be put into the page’s regions.
- How much space the component takes on the page based on the type of device that it renders on.
- What device form factors the component supports.
Regions inherit the interface assignments that you set for the overall page, as set in the .cmp resource.
Specify regions and components using these tags:
- flexipage:template
- This tag has no attributes and acts as a wrapper for the flexipage:region tag. Text literals are not allowed.
- flexipage:region
- This tag defines a region on the template and has these attributes. Text literals
are not allowed.
Attribute Description name The name of an attribute in the .cmp resource marked type Aura.Component[]. Flags the attribute as a region. label The label of your region. This label appears in the template switching wizard in the Lightning App Builder when users map region content to a new template. defaultWidth Specifies the default width of the region. This attribute is required for all regions. Valid values are: Small, Medium, Large, and Xlarge. - flexipage:formFactor
- Use this tag to specify how much space the component takes on the page based on the
type of device that it renders on. Add this tag as a child of the flexipage:region tag. Use multiple flexipage:formFactor tags per flexipage:region to define flexible behavior across
form factors.
Attribute Description type The type of form factor or device the template renders on, such as a desktop or tablet. Valid values are: Medium (tablet), and Large (desktop). Because the only reasonable width value for a Small form factor (phone) is Small, you don’t have to specify a Small type. Salesforce takes care of that association automatically. width The available size of the area that the component in this region has to render in. Valid values are: Small, Medium, Large, and Xlarge. For example, in this code snippet, the region has a large width to render in when the template is rendered on a large form factor. The region has a small width to render in when the template is rendered on a medium form factor.1<flexipage:region name="right" label="Right Region" defaultWidth="Large"> 2 <flexipage:formFactor type="Large" width="Large" /> 3 <flexipage:formFactor type="Medium" width="Small" /> 4</flexipage:region>
Here’s the design file that goes with the sample .cmp resource. The label text in the
design file displays as the name of the template in the new page
wizard.
1<design:component label="Two Region Custom App Page Template">
2 <flexipage:template >
3 <!-- The default width for the "left" region is "MEDIUM". In tablets,
4 the width is "SMALL" -->
5 <flexipage:region name="left" label="Left Region" defaultWidth="MEDIUM">
6 <flexipage:formfactor type="MEDIUM" width="SMALL" />
7 </flexipage:region>
8 <flexipage:region name="right" label="Right Region" defaultWidth="SMALL" />
9 </flexipage:template>
10</design:component>Specify supported devices for an app or record page template component with the <design:suppportedFormFactors> tag set. When you create a
custom template component for an app page, you must assign it both the Large (desktop) and Small
(phone) form factors.
Here’s the same app page template design file, with support configured for both desktop and
phone.
1<design:component label="Two Region Custom App Page Template">
2 <flexipage:template >
3 <!-- The default width for the "left" region is "MEDIUM". In tablets,
4 the width is "SMALL" -->
5 <flexipage:region name="left" label="Left Region" defaultWidth="MEDIUM">
6 <flexipage:formfactor type="MEDIUM" width="SMALL" />
7 </flexipage:region>
8 <flexipage:region name="right" label="Right Region" defaultWidth="SMALL" />
9 </flexipage:template>
10 <design:supportedFormFactors>
11 <design:supportedFormFactor type="Small"/>
12 <design:supportedFormFactor type="Large"/>
13 </design:supportedFormFactors>
14</design:component>3. (Optional) Add a Template Image

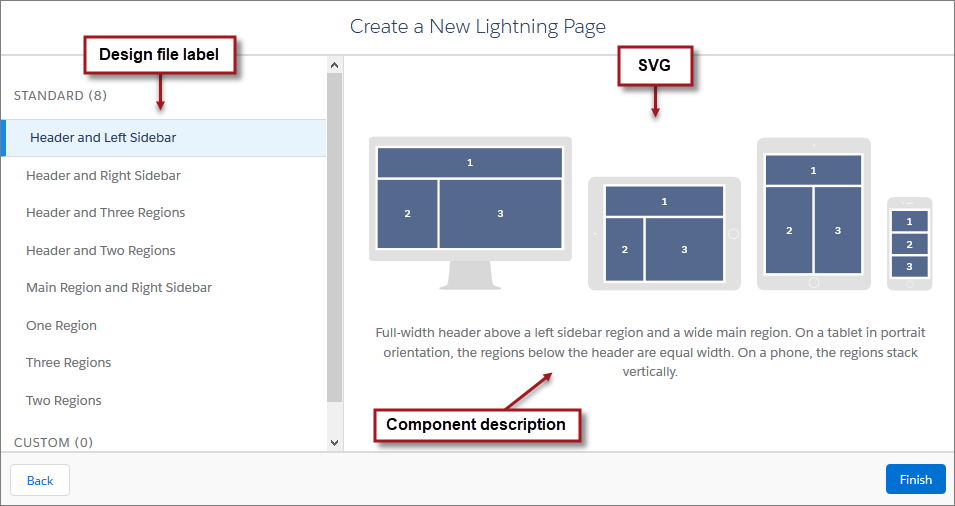

If you added a description to your .cmp resource, both it and the template image display when a user selects your template in the Lightning App Builder new page wizard.
You can use an SVG resource to define the custom template image.
We recommend that your SVG resource is no larger than 150 KB, and no more than 160 px high and 560 px wide.
