Hide Dataset Fields from the Explorer and Dashboard Designer

By default, all dataset fields are available in the UI. But you can hide fields so that users can’t select them when building queries and dashboards.

Although hidden fields aren’t available in the interface, users can still manually add them in dashboard JSON and SAQL queries. Users can also access the fields with the CRM Analytics REST API.

Note

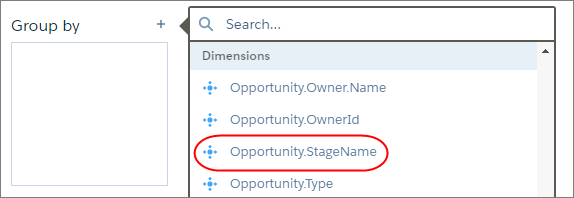

For example, the Opportunity.StageName field appears in the explorer. When creating a grouping in explorer, you can see the Opportunity.StageName dataset field.

To hide the field, modify the XMD as shown in the bold text.
1"dimensions": [{
2		"field": "Opportunity.StageName",
3		"showInExplorer": false
4	}],

After applying the change, the field is no longer available for selection. The Opportunity.StageName dataset field is no longer available.
