Develop a Telephony System Login Page

If needed, create a telephony system login page that appears in the Omni-Channel utility in the Lightning service console.

Complete this step if your telephony provider doesn’t support SSO, meaning that agents must log into a telephony system to make and receive calls. The telephony system must maintain the duration and validity of the login session.

  1. In your callCenter file, include a scvVendorLoginUrl in the customSettings field {contactCenterName}.callCenter.
  2. In the response to init(), set showLogin to true and include an optional number for loginFrameHeight in the InitResult object.

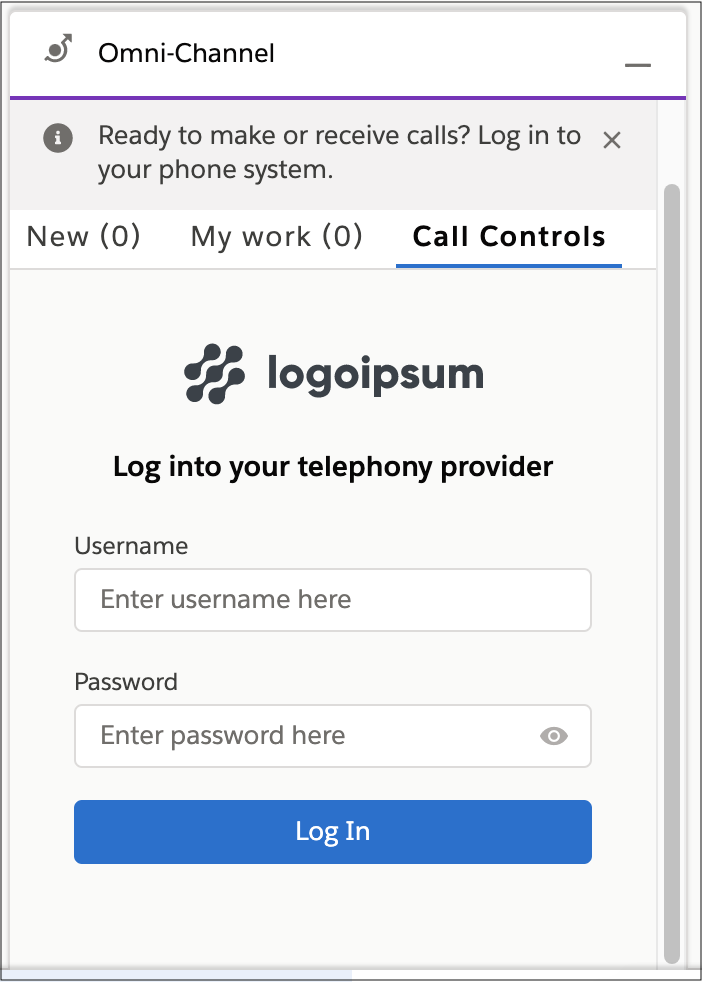

  3. Upon initialization, the Omni-Channel utility shows an iframe that is populated with the URL specified in the scvVendorLoginUrl field of customSettings in the callCenter file: Omni login window
  4. Publish a Connector API event with the login result to show either a login failure or the dialer.
  5. The agent can now log out from Omni-Channel. Omni-Channel logout window
  6. In the event of a session timeout, the telephony vendor can trigger a logout from the Connector API and use the Connector API publishEvent method. The vendor can provide a loginFrameHeight for the login iframe. If no value is provided, a default value of 350 is used.

    Clicking Log Out in the Voice Call Simulator performs the same action. To learn more, see Test Your Implementation with the Voice Call Simulator.
