Agentforce Life Sciences Developer Guide
jNote: This release is in preview. Features described here don’t become generally available until the latest general availability date that Salesforce announces for this release. Before then, and where features are noted as beta, pilot, or developer preview, we can’t guarantee general availability within any particular time frame or at all. Make your purchase decisions only on the basis of generally available products and features.
DiagnosticReport
The diagnosticReport FHIR resource maps to the
DiagnosticSummary object in Salesforce.
FHIR V4.0 - Clinical Data Model Mapping
Here’s how the fields defined by FHIR for diagnosticReport map to the fields in Salesforce.
| Diagnostic Report Resource | Salesforce Field | Type | Salesforce Cardinality | Notes |
|---|---|---|---|---|
| identifier | Identifier | Object | 0.M | The identifier information for a diagnostic summary is represented as Identifier records that reference the DiagnosticSummary record using their Identifier.ParentRecordId field. |
| basedOn | DiagnosticSummary.BasedOnId | Polymorphic Lookup: MedicationStatement, ClinicalServiceRequest | 0.1 |
While FHIR defines diagnosticReport.basedOn as a zero-to-many reference, the Salesforce implementation is a zero-to-one text field. Only references to medication statement and clinical service request records are supported. |
| status | DiagnosticSummary.Status | Picklist | 1.1 | While FHIR defines diagnosticReport.status as a reference to code set bundle, the Salesforce implementation is a picklist. |
| category | DiagnosticSummary.Category | Multi-Select Picklist | 0.M | While FHIR defines diagnosticReport.category as a reference to code set bundle, the Salesforce implementation is a multi-select picklist. |
| code | DiagnosticSummary.CodeId | Lookup: CodeSetBundle | 1.1 | N/A |
| subject | DiagnosticSummary.PatientId | Master-Detail: Account | 1.1 | The Salesforce implementation of diagnosticReport.subject supports references to only patients. |
| encounter | DiagnosticSummary.ClinicalEncounterId | Lookup: ClinicalEncounter | 0.1 | N/A |
| effective.effectiveDateTime | DiagnosticSummary.EffectiveStartDateTime | DateTime | 0.1 | N/A |
| effective.effectivePeriod | DiagnosticSummary.EffectiveStartDateTime | DateTime | 0.1 | Because Salesforce doesn’t support a native period data type, the diagnosticReport.effective.effectivePeriod field is flattened into a set of start date and end date fields. |
| DiagnosticSummary.EffectiveEndDateTime | DateTime | 0.1 | ||
| issued | DiagnosticSummary.IssuedDateTime | DateTime | 0.1 | Because Salesforce doesn’t support a native instant data type, the diagnosticReport.issued FHIR resource is implemented as a date time field in Salesforce. |
| performer | DiagnosticSummary.IssuedById | Lookup: CarePerformer | 0.1 | While FHIR defines diagnosticReport.performer as a zero-to-many resource, the Salesforce implementation is a zero-to-one reference to CarePerformer. |
| resultsInterpreter | DiagnosticSummary.InterpretedById | Lookup: CarePerformer | 0.1 | While FHIR defines diagnosticReport.resultsInterpreter as a zero-to-many resource, the Salesforce implementation is a zero-to-one reference to CarePerformer. |
| specimen | N/A | N/A | N/A | Not supported |
| result | DiagnosticSummary.CareObservationId | Lookup: CareObservation | 0.1 | While FHIR defines diagnosticReport.result as a zero-to-many resource, the Salesforce implementation is a zero-to-one reference to CareObservation. |
| imagingStudy | N/A | N/A | N/A | Not supported |
| media.comment | DiagnosticSummary.ImageComments1 | String | 0.1 | The zero-to-many diagnosticReport.media resource is flattened to five separate zero-to-one text fields and five separate zero-to-one URL fields in the Salesforce implementation. |
| DiagnosticSummary.ImageComments2 | String | |||
| DiagnosticSummary.ImageComments3 | String | 0.1 | ||
| DiagnosticSummary.ImageComments4 | String | 0.1 | ||
| DiagnosticSummary.ImageComments5 | String | 0.1 | ||
| media.link | DiagnosticSummary.ImageUrl1 | URL | 0.1 | |
| DiagnosticSummary.ImageUrl2 | URL | 0.1 | ||
| DiagnosticSummary.ImageUrl3 | URL | 0.1 | ||
| DiagnosticSummary.ImageUrl4 | URL | 0.1 | ||
| DiagnosticSummary.ImageUrl5 | URL | 0.1 | ||
| conclusion | DiagnosticSummary.Summary | String | 0.1 | N/A |
| conclusionCode | DiagnosticSummary.SummaryCodeId | Lookup: CodeSetBundle | 0.1 | While FHIR defines diagnosticReport.conclusionCode as a zero-to-many resource, the Salesforce implementation is a zero-to-one reference. |
| presentedForm | N/A | N/A | N/A | Not supported |

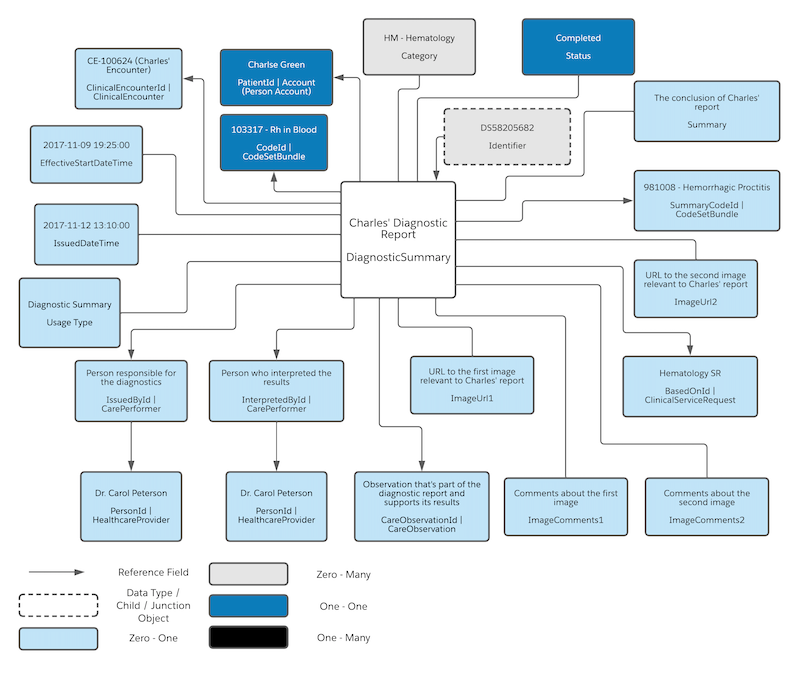

Sample Record Diagram
Here's a diagram that shows an example of how this resource is represented in Salesforce.
