Order Summary Entity Relationships

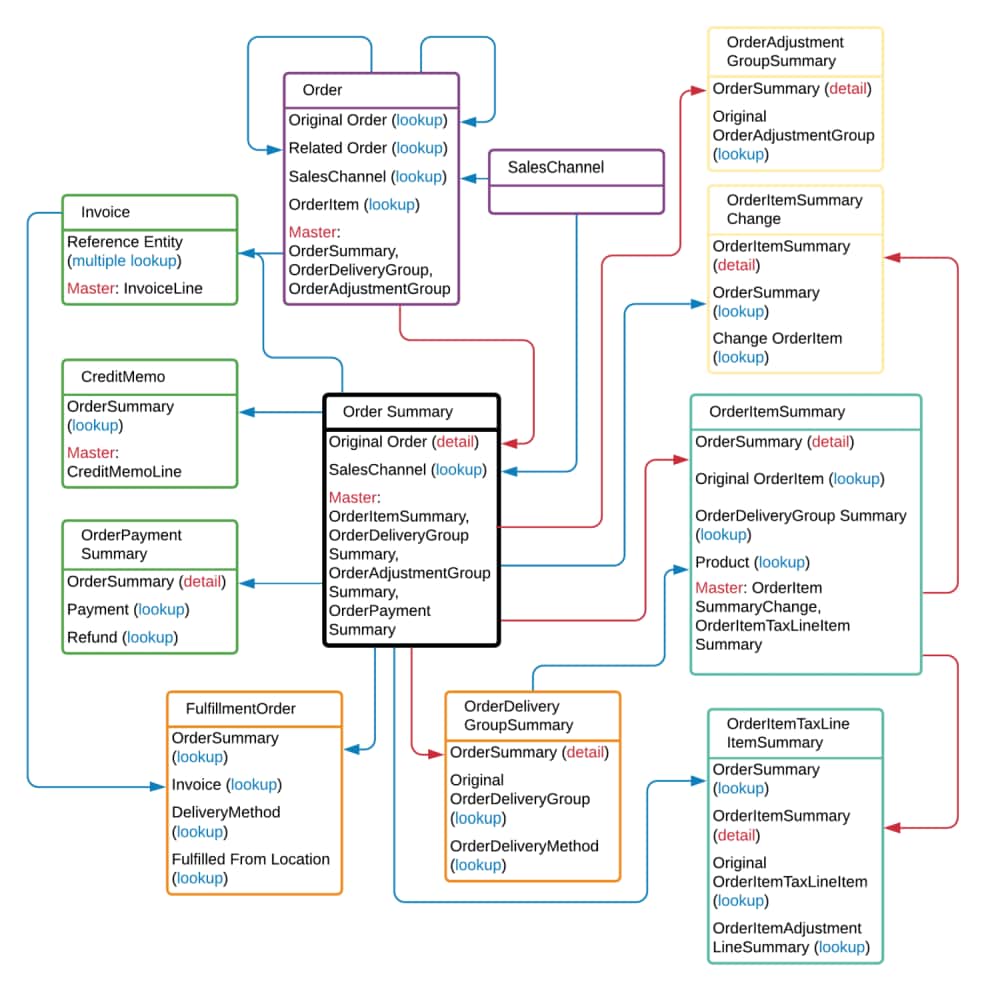

In Salesforce Order Management, each order is represented by an order summary and a number of other records linked to the order summary. This diagram illustrates some of the relationships between the OrderSummary object and other objects used in Salesforce Order Management.

Partial entity relationship diagram for OrderSummary

To view a diagram of all object relationships in your organization, from Setup, in the Quick Find box, enter Schema Builder, and then select Schema Builder. For information on using Schema Builder, see Design Your Own Data Model in Extend Salesforce with Clicks, not Code.
