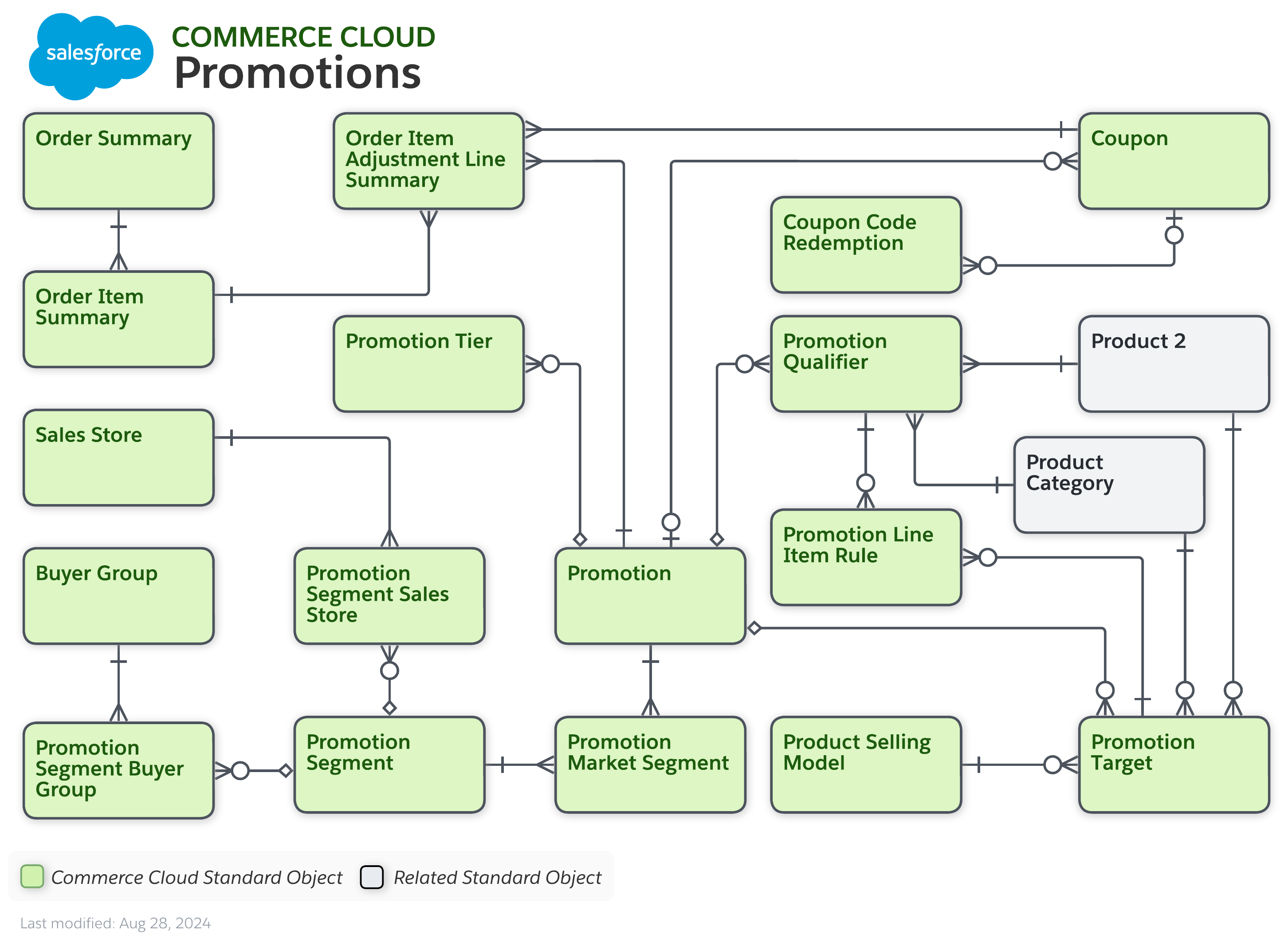

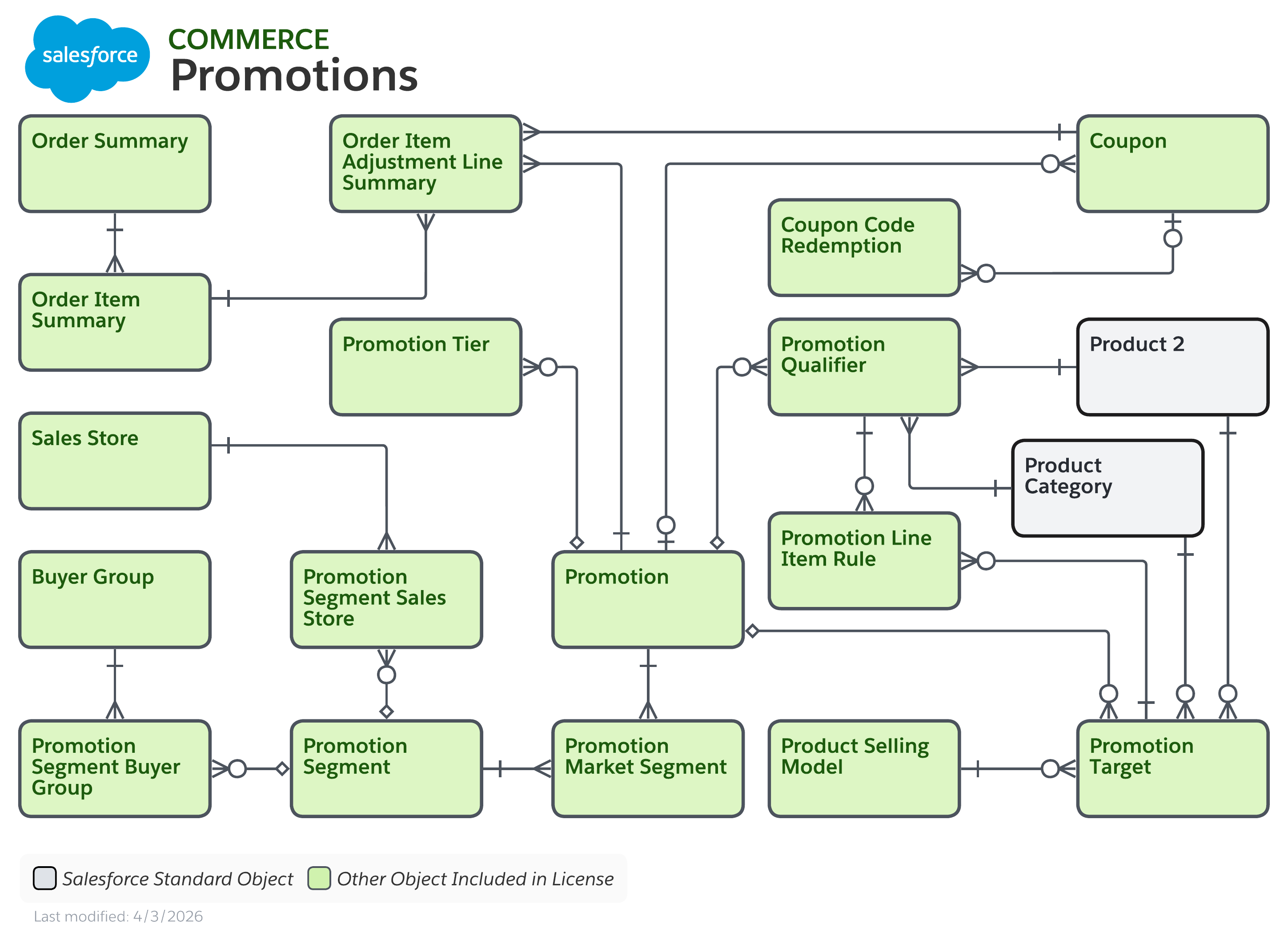

Promotions Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template (Note: May not reflect the most current version of the data model.)
Entities and relationships that govern how promotions are applied to products and cart items throughout the checkout cycle.
Buyer Group, Coupon, Coupon Code Redemption, Order Item Adjustment Line Summary, Order Item Summary, Order Summary, Product 2, Product Category, Product Selling Model, Promotion, Promotion Item Rule, Promotion Line Item Rule, Promotion Market Segment, Promotion Qualifier, Promotion Segment, Promotion Segment Buyer Group, Promotion Segment Sales Store, Promotion Target, Promotion Tier, Sales Store
