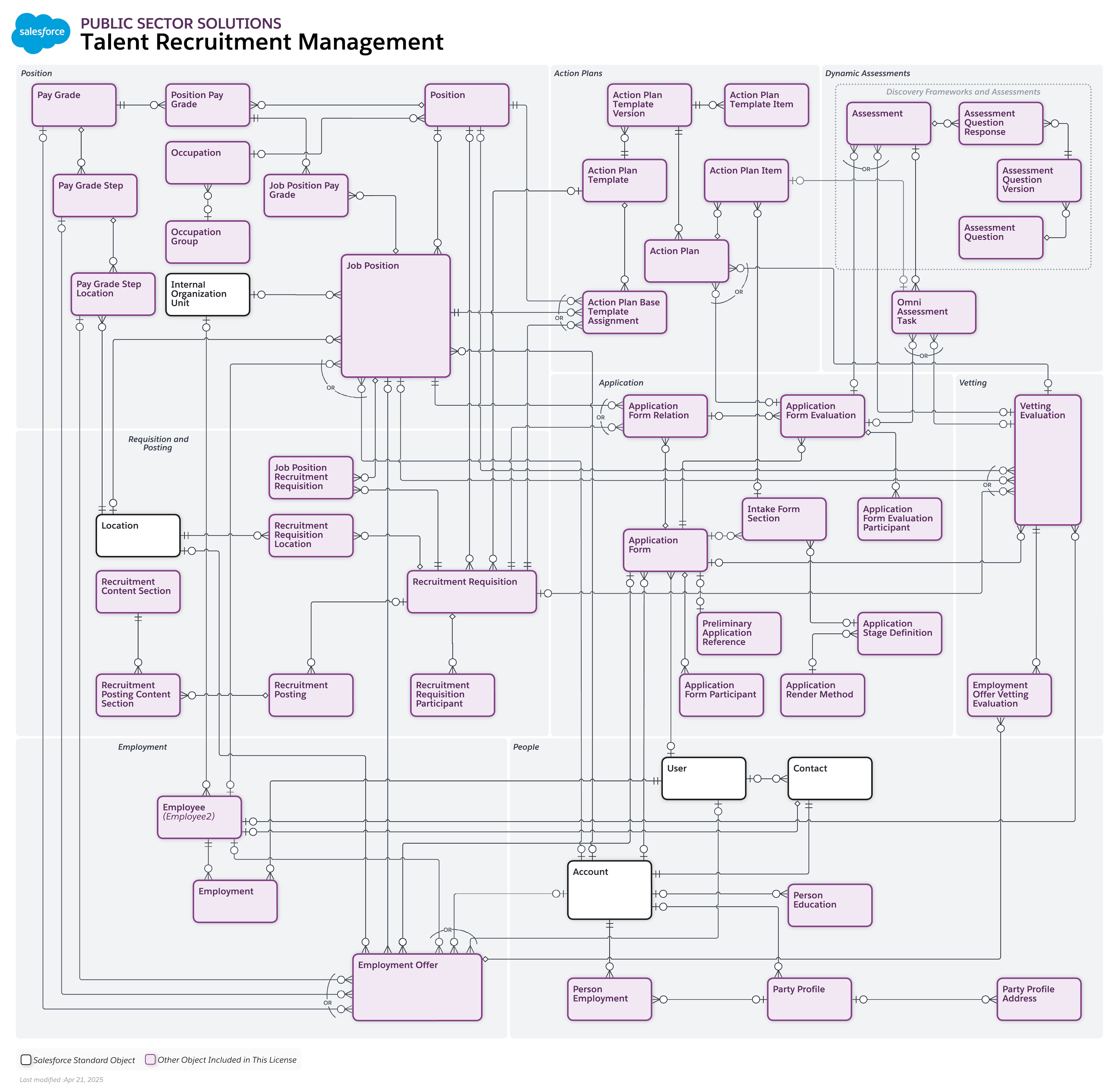

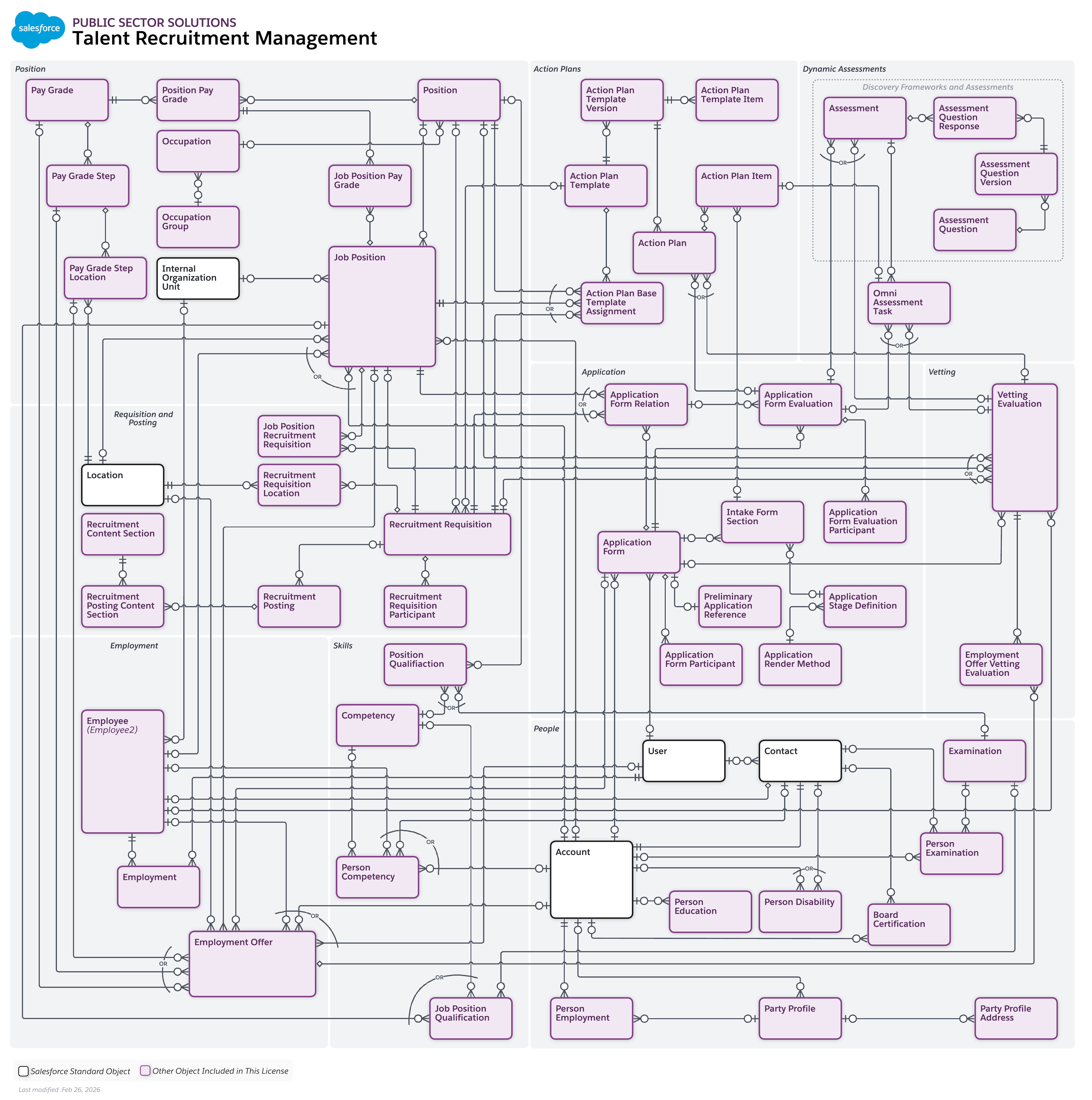

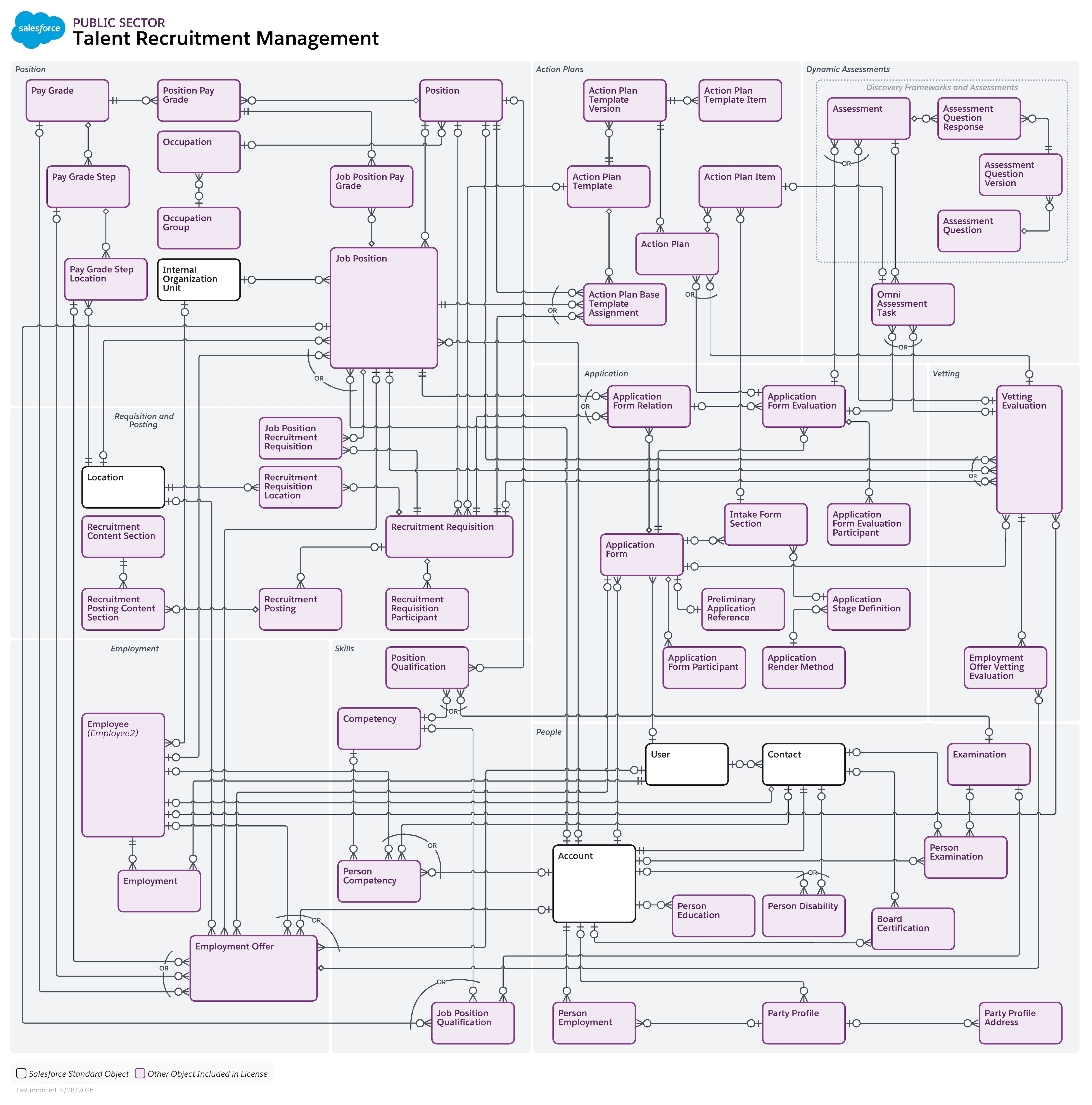

Talent Recruitment Management Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
entities and relationships for managing talent recruitment including job positions, requisitions, postings, applications, evaluation, vetting, and hiring
Account, Action Plan, Action Plan Base Template Assignment, Action Plan Item, Action Plan Template, Action Plan Template Version, Application, Application Form Evaluation, Application Form Evaluation Participant, Application Form Participant, Application Form Relation, Application Render Method, Application Stage Definition, Assessment, Assessment Question, Assessment Question Response, Assessment Question Version, Contact, Employee (Employee2), Employment, Employment Offer, Internal Organization Unit, Job Position, Job Position Pay Grade, Location, Occupation, Occupation Group, Omni Assessment Task, Party Profile, Party Profile Address, Pay Grade, Pay Grade Step, Pay Grade Step Location, Person Education, Person Employment, Preliminary Application Reference, Position, Position Pay Grade, Recruitment Content Section, Recruitment Posting, Recruitment Posting Content Section, Recruitment Requisition, Recruitment Requisition Location, Recruitment Requisition Participant, User, Vetting, Vetting Evaluation
