Deploy Third-Party SMS-Based Two-Factor Authentication

Configure the Flow

This example uses the Twilio Apex SDK to perform SMS delivery operations. However, you can use any cloud-based SMS or voice vendor that has a public API to access its services.

1. Go to the Cloud Flow Designer in Salesforce and create a flow.

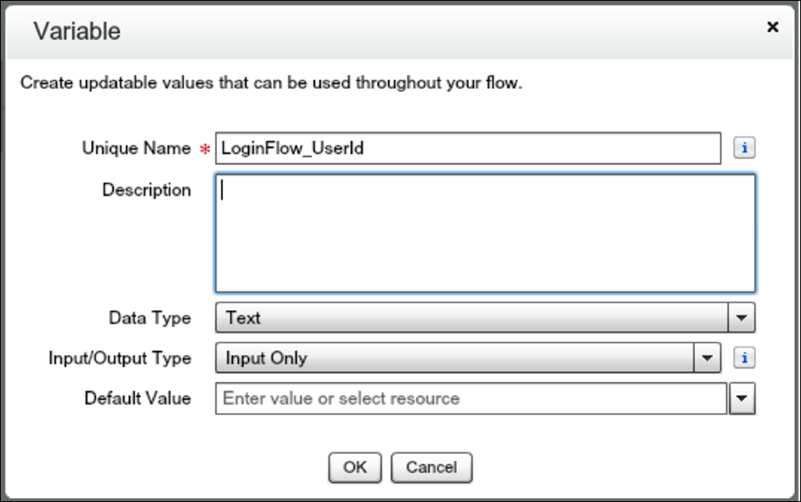

2. Create a LoginFlow_UserId input text variable. This variable is populated with the user ID during the login event.



3. Create text variables.
   • Mobile—The user’s mobile number
   • VerificationCode—The OTP generated by the Apex plug-in
   • Code—The OTP collected from the user
   • Status—The status returned when the plug-in executes
4. Create a record lookup that queries the UserObject based on the user ID and stores the mobile number in the Mobile input variable.



5. Install the Twilio Apex SDK from https://github.com/twilio/twilio-salesforce.
6. To allow the SMS plug-in to perform outbound API calls to Twilio web services, set up https://api.twilio.com as a remote site in Salesforce. In Setup, enter Remote Site Settings in the Quick Find box, select Remote Site Settings, and add the Twilio web services URL.



7. Create an Apex class.
   101    global class SMSPlugin implements Process.Plugin {
   202
   303    global Process.PluginDescribeResult describe() {
   404
   505        Process.PluginDescribeResult result = new Process.PluginDescribeResult();
   606        result.tag='Identity';
   707        result.name='SMS Plugin';
   808        result.description='Two factor authentication with SMS';
   909
   1010        result.inputParameters = new List<Process.PluginDescribeResult.InputParameter> {
   1111            new Process.PluginDescribeResult.InputParameter('AccountSid', Process.PluginDescribeResult.ParameterType.STRING, true),
   12
   1312            new Process.PluginDescribeResult.InputParameter('Token', Process.PluginDescribeResult.ParameterType.STRING, true),
   1413            new Process.PluginDescribeResult.InputParameter('To', Process.PluginDescribeResult.ParameterType.STRING, true),
   1514            new Process.PluginDescribeResult.InputParameter('From', Process.PluginDescribeResult.ParameterType.STRING, true),
   1615            new Process.PluginDescribeResult.InputParameter('Message', Process.PluginDescribeResult.ParameterType.STRING, true)
   1716        };
   1817
   1918        result.outputParameters = new List<Process.PluginDescribeResult.OutputParameter> {
   2019            new Process.PluginDescribeResult.OutputParameter('Status', Process.PluginDescribeResult.ParameterType.STRING),
   2120            new Process.PluginDescribeResult.OutputParameter('VerificationCode', Process.PluginDescribeResult.ParameterType.STRING)
   2221        };
   2322
   2423        return result;
   2524
   2625    }
   2726
   2827
   2928    global Process.PluginResult invoke(Process.PluginRequest request) {
   3029
   3130        Map<String, Object> result = new Map<String, Object>();
   3231        String AccountSid = (String)request.inputParameters.get('AccountSid');
   3332        String token = (String)request.inputParameters.get('Token');
   3433        String To = (String)request.inputParameters.get('To');
   3534        String From_a = (String)request.inputParameters.get('From');
   3635        String Message = (String)request.inputParameters.get('Message');
   3736        if (Message == null) Message = 'Your verification code is: ';
   3837
   3938        TwilioRestClient client = new TwilioRestClient(AccountSid, Token);
   4039        TwilioSMS sms;
   4140
   4241        Integer rand = Math.round(Math.random()*100000);
   4342        String VerificationCode = string.valueOf(rand);
   4443        String Body = Message + VerificationCode;
   4544
   4645        Map<String,String> params = new Map<String,String> {
   4746            'To'  => To,
   4847            'From' => From_a,
   4948            'Body' => Body
   5049        };
   5150
   5251        try {
   5352            sms = client.getAccount().getSMSMessages().create(params);
   5453            result.put('Status', sms.getStatus());
   5554        } catch(Exception ex) {
   5655            result.put('Status', 'Failure');
   5756        }
   5857            result.put('VerificationCode', VerificationCode);
   5958           return new Process.PluginResult(result);
   6059      }
   6160    }

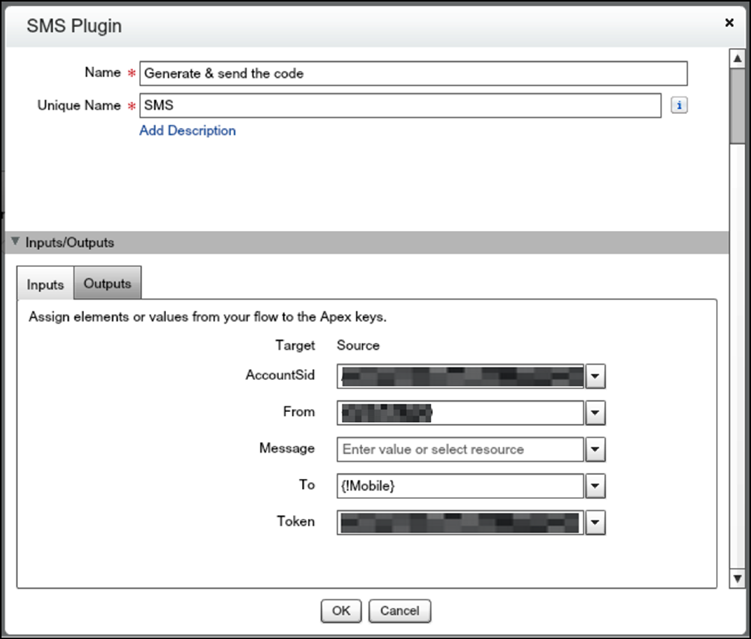

8. Create an SMS plug-in that generates an OTP code and sends it via SMS to the user’s mobile number. The plug-in takes these inputs.
   • AccountSid—Twilio Account SID (username from your Twilio account)
   • Token—Twilio Auth Token (password from your Twilio account)
   • From—The SMS From number
   • Message—The message sent to the user with the verification code
   • To—The user’s mobile phone number

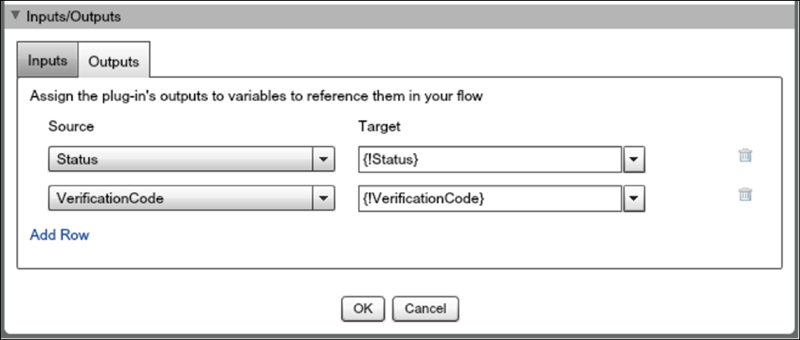

   The plug-in returns two values.

   • Status—The status of the SMS delivery operation
   • VerificationCode—The verification code generated and sent to the user

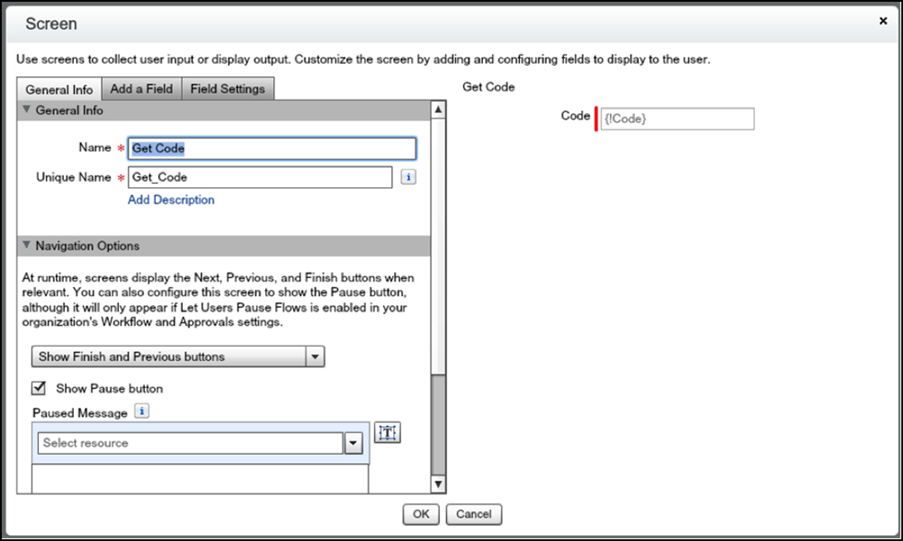

9. Create a screen element that prompts for the verification code received.

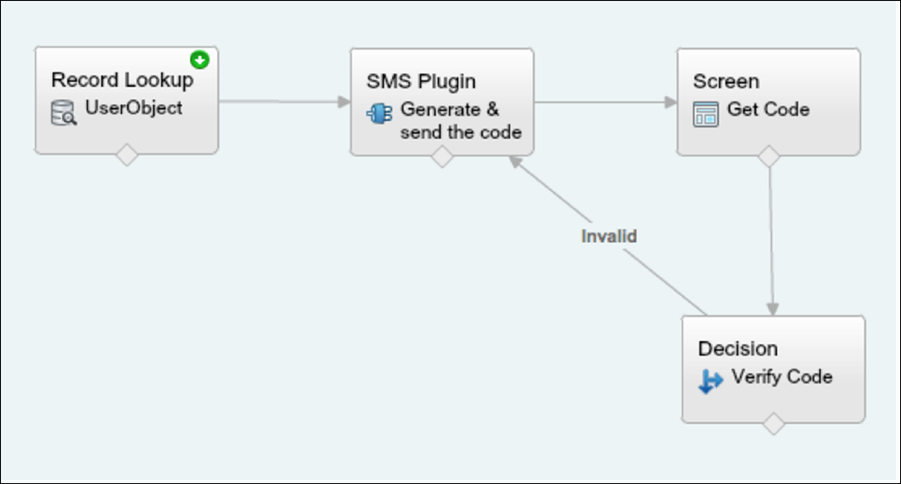

10. Create a decision element with two outcomes.
    • Valid—The verification code is the same as the code the user provided.
    • Invalid—The valid condition is not met, so the outcome is invalid.



11. Save and activate the flow.
12. Connect the login flow to a user profile.



13. Log out, and then log in as a test user that’s connected with a test profile.
