Deploy Third-Party, SMS-Based Multi-Factor Authentication

To implement MFA, you can take advantage of a third-party SMS or voice delivery service, like Twilio or TeleSign, together with a Salesforce login flow.

Let’s break down an SMS-based MFA process.

1. As the user logs in, the login flow generates a random OTP and sends it via voice or text message to the user’s phone.
2. The user provides the OTP to the Salesforce application.
3. Salesforce verifies the code.
4. If the code is valid, Salesforce permits user access.

The login flow has four steps.

1. Get Records—Queries the user record to get the mobile phone number.
2. Apex Action (Legacy)—Generates the OTP and uses a third-party SMS delivery service to send it to the user’s mobile device.
3. Screen—Prompts the user to provide the received OTP.
4. Decision—Compares the OTP generated by the Apex action with the one that the user provides. If equal, the flow is completed, and the user is redirected to the application. Otherwise, the flow generates another code and asks the user to re-verify.

Configure the Flow

This example uses the Twilio Apex SDK to perform SMS delivery operations. However, you can use any cloud-based SMS or voice vendor that has a public API to access its services.

1. Open Flow Builder. From Setup, enter Flows in the Quick Find box, select Flows, and then click New Flow.
2. Select Screen Flow, and click Create.
3. From the toolbox, open the Manager tab, and click New Resource.
4. Create a LoginFlow_UserId input text variable. This variable is populated with the user ID during the login event.
5. Create text variables.
   • Mobile—The user’s mobile number
   • VerificationCode—The OTP generated by the Apex plug-in
   • Code—The OTP collected from the user
   • Status—The status returned when the plug-in executes

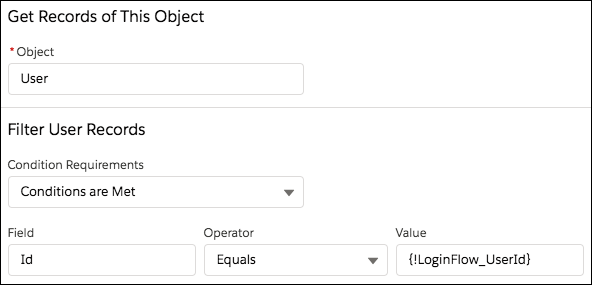

6. From the toolbox, open the Elements tab. Add a Get Records element to the canvas to look up the user who’s trying to log in.

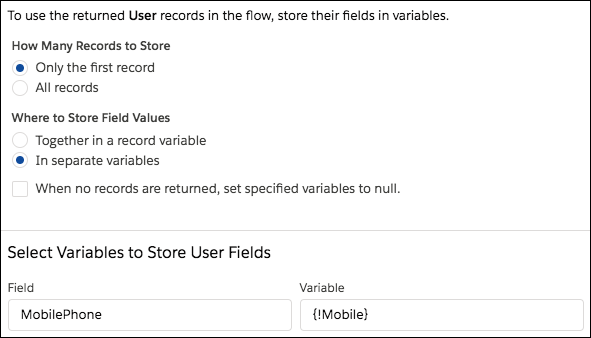

7. Store the user’s mobile number in the Mobile input variable.
8. Install the Twilio Apex SDK from https://github.com/twilio/twilio-salesforce.

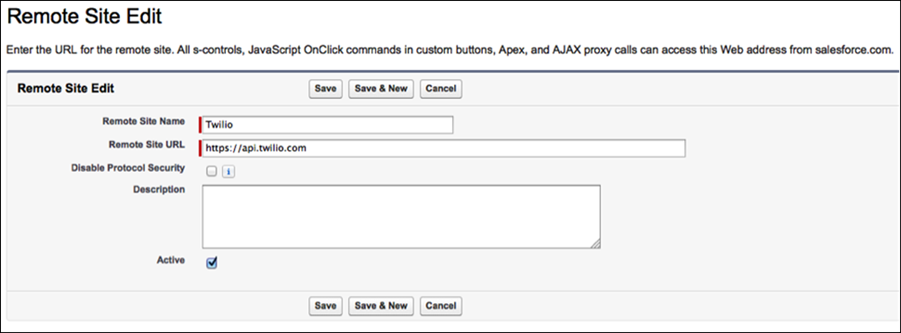

9. To allow the SMS plug-in to perform outbound API calls to Twilio web services, set up https://api.twilio.com as a remote site in Salesforce. In Setup, enter Remote Site Settings in the Quick Find box, select Remote Site Settings, and add the Twilio web services URL.
10. Create an Apex class.
    1global class SMSPlugin implements Process.Plugin {
    2
    3    global Process.PluginDescribeResult describe() {
    4
    5        Process.PluginDescribeResult result = new Process.PluginDescribeResult();
    6        result.tag='Identity';
    7        result.name='SMS Plugin';
    8        result.description='Multi-factor authentication with SMS';
    9
    10        result.inputParameters = new List<Process.PluginDescribeResult.InputParameter> {
    11            new Process.PluginDescribeResult.InputParameter('AccountSid', Process.PluginDescribeResult.ParameterType.STRING, true),
    12
    13            new Process.PluginDescribeResult.InputParameter('Token', Process.PluginDescribeResult.ParameterType.STRING, true),
    14            new Process.PluginDescribeResult.InputParameter('To', Process.PluginDescribeResult.ParameterType.STRING, true),
    15            new Process.PluginDescribeResult.InputParameter('From', Process.PluginDescribeResult.ParameterType.STRING, true),
    16            new Process.PluginDescribeResult.InputParameter('Message', Process.PluginDescribeResult.ParameterType.STRING, true)
    17        };
    18
    19        result.outputParameters = new List<Process.PluginDescribeResult.OutputParameter> {
    20            new Process.PluginDescribeResult.OutputParameter('Status', Process.PluginDescribeResult.ParameterType.STRING),
    21            new Process.PluginDescribeResult.OutputParameter('VerificationCode', Process.PluginDescribeResult.ParameterType.STRING)
    22        };
    23
    24        return result;
    25
    26    }
    27
    28
    29    global Process.PluginResult invoke(Process.PluginRequest request) {
    30
    31        Map<String, Object> result = new Map<String, Object>();
    32        String AccountSid = (String)request.inputParameters.get('AccountSid');
    33        String token = (String)request.inputParameters.get('Token');
    34        String To = (String)request.inputParameters.get('To');
    35        String From_a = (String)request.inputParameters.get('From');
    36        String Message = (String)request.inputParameters.get('Message');
    37        if (Message == null) Message = 'Your verification code is: ';
    38
    39        TwilioRestClient client = new TwilioRestClient(AccountSid, Token);
    40        TwilioSMS sms;
    41
    42        Integer rand = Math.round(Math.random()*100000);
    43        String VerificationCode = string.valueOf(rand);
    44        String Body = Message + VerificationCode;
    45
    46        Map<String,String> params = new Map<String,String> {
    47            'To'  => To,
    48            'From' => From_a,
    49            'Body' => Body
    50        };
    51
    52        try {
    53            sms = client.getAccount().getSMSMessages().create(params);
    54            result.put('Status', sms.getStatus());
    55        } catch(Exception ex) {
    56            result.put('Status', 'Failure');
    57        }
    58        result.put('VerificationCode', VerificationCode);
    59        return new Process.PluginResult(result);
    60    }
    61}

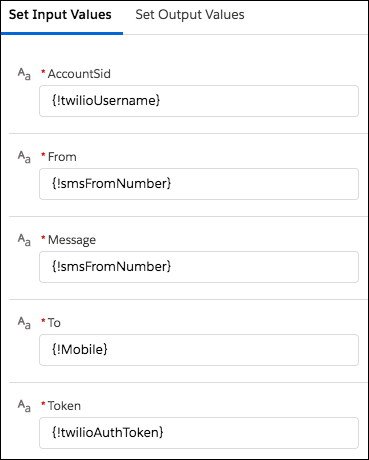

11. Create an SMS plug-in that generates an OTP code and sends it via SMS to the user’s mobile number. The plug-in takes these inputs.
    • AccountSid—Twilio Account SID (username from your Twilio account)
    • Token—Twilio Auth Token (password from your Twilio account)
    • From—The SMS From number
    • Message—The message sent to the user with the verification code
    • To—The user’s mobile phone number

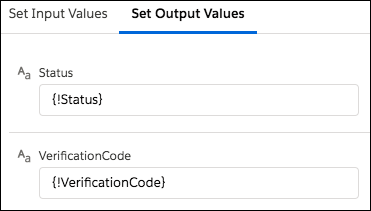

    The plug-in returns two values.

    • Status—The status of the SMS delivery operation
    • VerificationCode—The verification code generated and sent to the user
12. Create a Screen element that prompts for the verification code received.

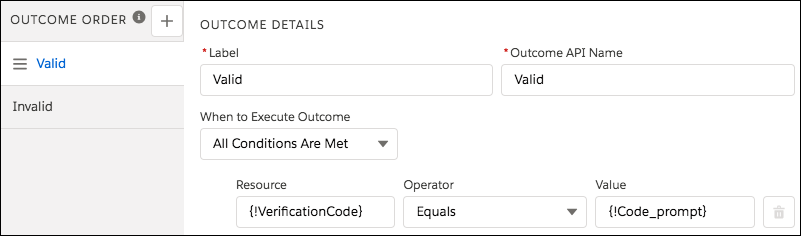

13. Create a Decision element with two outcomes.
    • Valid—The verification code (stored in {!VerificationCode}) is the same as the code the user entered in the Code screen component.
    • Invalid—The Valid outcome’s condition isn’t met, so the outcome is invalid. To create this outcome, change the label of the default outcome to Invalid.

14. Connect the elements together. When you connect the decision to the legacy Apex action, choose the Invalid outcome.
15. Save and activate the flow.

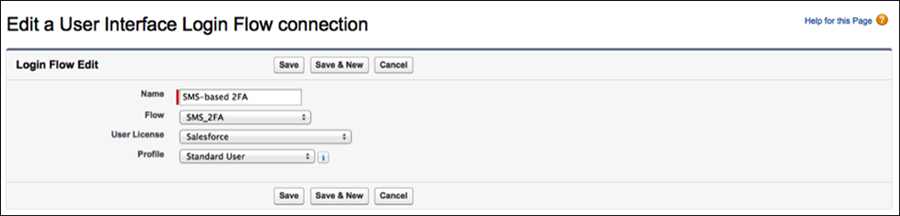

16. Connect the login flow to a user profile.
17. Log out, and then log in as a test user that’s connected with a test profile.
