Step 1: Create the Basic Theme Layout Structure

To create the basic structure of the theme layout component, add attributes to define two regions—search and sidebar. Then add the attributes to the markup to define where the regions appear.

1<aura:component implements="forceCommunity:themeLayout">
2    <aura:attribute name="search" type="Aura.Component[]"/>
3    <aura:attribute name="sidebarFooter" type="Aura.Component[]"/>
4
5    {!v.search}
6    {!v.sidebarFooter}
7    {!v.body}
8
9</aura:component>

Right now, all the regions flow vertically, so add some semantic structure using the SLDS grid system.

1<aura:component implements="forceCommunity:themeLayout">
2    <aura:attribute name="search" type="Aura.Component[]"/>
3    <aura:attribute name="sidebarFooter" type="Aura.Component[]"/>
4    <div class="slds-grid slds-grid--align-center">
5        <div class="slds-col">
6            <div class="slds-grid slds-grid--vertical">
7                <div class="slds-col">
8                <!-- placeholder for logo -->
9                </div>
10                <div class="slds-col">
11                    {!v.search}
12                </div>
13                <div class="slds-col">
14                <!-- placeholder for navigation -->
15                </div>
16                <div class="slds-col">
17                    {!v.sidebarFooter}
18                </div>
19            </div>
20        </div>
21        <div class="slds-col content">
22            {!v.body}
23        </div>
24    </div>
25</aura:component>

Add a design resource to the bundle to give the component a UI label.

1<design:component label="Condensed Theme Layout">
2
3</design:component>

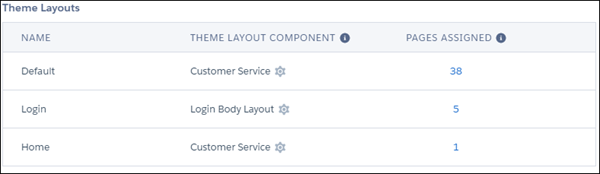

In Community Builder, you can see the theme layout’s semantic hierarchy by selecting it for the Home theme layout. Theme area in Community Builder

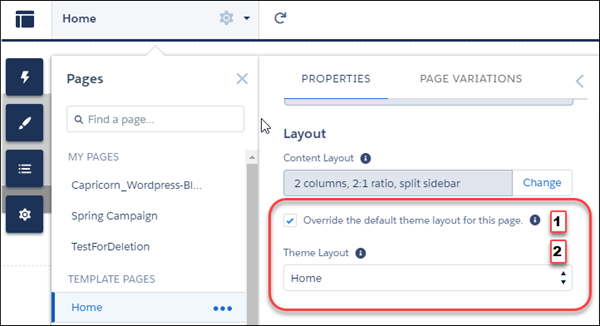

Open the Page Properties for the Home page. Select Override the default theme layout for this page. (1) to display Theme Layout. Select Home in the Theme Layout dropdown (2). Theme Layout property

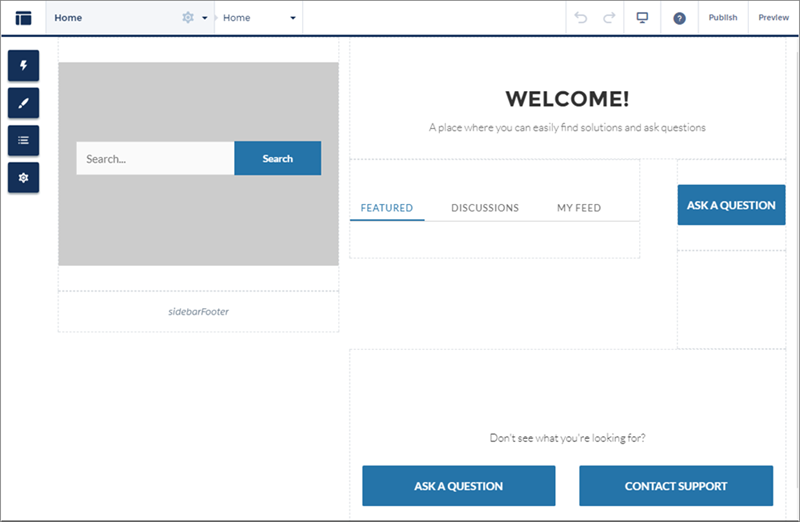

The page refreshes, and now you can see the new theme layout component in action. Let's inspect the layout of the page. You no longer have a header, which used to contain the navigation, search, profile menu, and logo. Some of those elements are being moved into the two left sidebar regions—search and sidebarFooter. However, until you create a swappable search component for the designated search region, the standard search component still appears. Sample theme layout
