Dynamically Update a Flow Screen with an Aura Component

To conditionally display a field on your screen, build an Aura component that uses aura:if to check when parts of the component should appear.

Example

This component (c:flowDynamicScreen) displays a custom script component and a group of radio buttons. The component gets the contact's existing phone number from the flow, and uses that value to fill in the script.

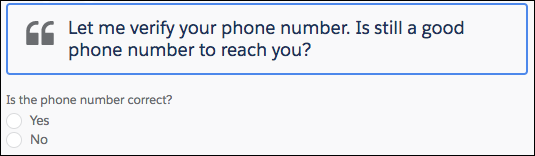

A flow screen that shows a script and a radio button field.

If the user selects the No radio button, the component displays an input, where the user can enter the new phone number.

When No is selected, the Phone field displays.

c:flowDynamicScreen Component

1<aura:component access="global" implements="lightning:availableForFlowScreens">
2   <aura:attribute name="oldPhone" type="String" />
3   <aura:attribute name="newPhone" type="String" />
4   <aura:attribute name="radioOptions" type="List" default="[
5      {'label': 'Yes', 'value': 'false'},
6      {'label': 'No', 'value': 'true'} ]"/>
7   <aura:attribute name="radioValue" type="Boolean" />
8
9   <!-- Displays script to guide the agent's call -->
10   <div class="script-container">
11      <div class="slds-card__header slds-grid slds-p-bottom_small slds-m-bottom_none">
12         <div class="slds-media slds-media_center slds-has-flexi-truncate" >
13            <div class="slds-media__figure slds-align-top">
14               <h2><lightning:icon iconName="utility:quotation_marks"
15                  title="Suggested script" /></h2>
16            </div>
17            <div class="slds-media__body">
18               <!-- Inserts the user’s current number, pulled from the flow, into the script -->
19               <ui:outputRichText class="script" value="{!'Let me verify your phone number.
20                  Is ' + v.oldPhone + ' still a good phone number to reach you?'}"/>
21            </div>
22         </div>
23      </div>
24   </div>
25   <!-- Displays a radio button group to enter the customer’s response -->
26   <div class="slds-p-top_medium slds-p-bottom_medium">
27      <lightning:radioGroup aura:id="rbg_correct" name="rbg_correct"
28         label="Is the phone number correct?"
29         options="{! v.radioOptions }" value="{! v.radioValue }" />
30      <!-- If the current number is wrong,
31         displays a field to enter the correct number -->
32      <aura:if isTrue="{!v.radioValue}">
33         <lightning:input type="tel" aura:id="phone_updated" label="Phone"
34            onblur="{!c.handleNewPhone}" class="slds-p-top_small"/>
35      </aura:if>
36   </div>
37</aura:component>

c:flowDynamicScreen Style

1.THIS.script-container {
2   border: t(borderWidthThick) solid t(colorBorderBrand);
3   border-radius: t(borderRadiusMedium);
4}
5
6.THIS .script {
7   font-size: 1.125rem; /*t(fontSizeTextLarge)*/
8   font-weight: t(fontWeightRegular);
9   line-height: t(lineHeightHeading);
10}

c:flowDynamicScreen Controller

When the user tabs out, or otherwise removes focus from the Phone input, the controller sets the newPhone attribute to the input value, so that you can reference the new number in the flow.

1({
2   handleNewPhone: function(cmp, event, helper) {
3      cmp.set("v.newPhone", cmp.find('phone_updated').get('v.value'));
4   }
5})

defaultTokens.tokens

The script in c:flowDynamicScreen uses tokens to stay in sync with the Salesforce Lightning Design System styles.

1<aura:tokens extends="force:base" >
2</aura:tokens>
