ExperienceBundle

File Suffix and Directory Location

ExperienceBundle components have the suffix .json and are stored in the experiences folder when retrieved. Each Experience Builder site in your org has its own folder. Each of these folders contains other folders for the supported properties.

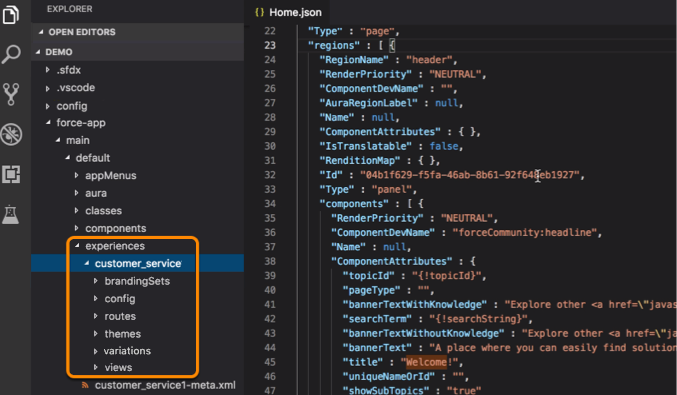

The ExperienceBundle can contain one or more site definitions under the experiences folder. Each site definition has resource folders for brandingSets, config, routes, themes, variations, and views, each with additional, related configuration information in JSON files. Here’s an example site definition, showing the resource folders.

Version

ExperienceBundle components are available in API version 46.0 and later.

Special Access Rules

To use the ExperienceBundle metadata type for Aura-based Experience Builder sites, from Setup, enter Digital Experiences in the Quick Find box, and then select Settings. Select Enable ExperienceBundle Metadata API, and save your changes. LWR sites use ExperienceBundle by default.

Fields

Field Name	Field Type	Description
experienceResources	ExperienceResources[]	The list of resources in this ExperienceBundle. Each resource represents an artifact of a site such as brandingSets, config, routes, themes, variations, and views.
label	string	Required. Represents the name of the ExperienceBundle.
type	SiteType (enumeration of type string)	Required. Identifies the kind of site. Only Experience Builder sites are supported, using the value `ChatterNetworkPicasso`.
urlPathPrefix	string	Specify a URL prefix for an Experience Builder site. For example, in the site URL SitesSubdomainName.force.com/customers, customers is the UrlPathPrefix. For Aura or authenticated LWR sites, the URL path prefix ends in /s and the part of the path without the /s must match the network metadata type’s URL. For unauthenticated LWR sites, this path doesn’t contain /s, and the path can be anything as long as there is no conflict. Note Sample meta.xml file `1<?xml version="1.0" encoding="UTF-8"?> 2<ExperienceBundle xmlns="http://soap.sforce.com/2006/04/metadata"> 3 <label>SampleStarterSite2</label> 4 <type>ChatterNetworkPicasso</type> 5 <urlPathPrefix>SampleStarterSite2/s</urlPathPrefix> 6</ExperienceBundle>`

ExperienceResources

Represents a list of sites in the bundle.

Field Name	Field Type	Description
experienceResource	ExperienceResource[]	The list of resources in this ExperienceBundle. Each resource represents a property for the site, such as brandingSets, config, routes, themes, and views.

ExperienceResource

Represents specific site information included in the ExperienceBundle.

Each type has a folder in the structure. Each folder contains one or more files providing information about that type and the site. Each corresponds to a specific folder and file in the ExperienceBundle.

Field Name	Field Type	Description
fileName	string	Required. Name of resource file.
format	string	Required. Only `JSON` is allowed.
source	base64	The `JSON` content of each file.
type	string	Required. The type of the resource. Valid values are: `brandingSets` `config` `routes` `themes` `views`

Folders and Bundled Definitions

Each ExperienceBundle includes folders and associated data that is contained in JSON files.

brandingSets Folder

This folder contains one JSON file per branding set, named brandingSets_name.json. Each file has the same structure and properties.

<brandingSets_name>.json

Property	Type	Description
brandingSetType	string	Required in LWR sites. Not applicable for Aura sites.. Represents whether the color palette stored in the branding set is for the entire site or a specific section. You can’t change one branding set type to another. Available in API Version 52.0 and later. Valid values are: `APP`: The branding set applies to the entire site. There can only be one branding set of this type. `SCOPED`: The branding set applies to a specific section.
definitionName	string	Required. Represents the name for the branding set that is used in grouping branding sets under a theme. Defined as `theme`:branding-`theme`. For example, if the site theme is Stella, the definitionName would be `stella:branding-stella`. In addition, there are several standard templates that have unique naming: Customer Account Portal uses `cpt:branding-cpt` Customer Service uses `service:branding-service` Help Center uses `helpCenter:branding-helpCenter` Partner Central uses `prm:branding-prm` Build Your Own uses `starter:branding-starter` The combination of definitionName + label must be unique in your org. Note
id	UUID	Represents the component's GUID.
label	string	Represents the name of the branding set. The combination of definitionName + label must be unique in your org. Note
type	string	Represents the component type. The only supported value is `brandingSet`.
values	map	Required. Represents a map of branding values that can be applied to a site.

1{
2  "values" : {
3    "HeaderBackgroundColor" : "#FFFFFF",
4    "TextTransformStyle" : "none",
5    "BorderColor" : "#D4D4D4",
6    "DetailTextColor" : "#5A5A5A",
7    "HeaderFonts" : "Ek Mukta",
8    "CardBackgroundColor" : "rgba(255, 255, 255, 0)",
9    "LoginBackgroundColor" : "#F4F4F4",
10    "_ActionColorTrans" : "rgba(25, 124, 190, 0.9)",
11    "LoginBackgroundImage" : "../../../../sfsites/picasso/core/external/salesforceIdentity/images/background.jpg?v=1",
12    "PageBackgroundColor" : "#F5F7FA",
13    "_HeaderTextColor" : "rgba(34,34,34,.8)",
14    "_NavigationMenuHoverColor" : "rgba(255,255,255,.2)",
15    "_HeaderInputBackgroundColor" : "rgba(255,255,255,.4)",
16    "TextColor" : "#222222",
17    "NavigationMenuTextColor" : "#222222",
18    "_HeaderPlaceholderTextColor" : "rgba(85,85,85,.8)",
19    "_OverlayTextColorShadow" : "#000000",
20    "ActionColor" : "#0099DE",
21    "CompanyLogo" : "",
22    "_LinkColorDarker" : "#135F90",
23    "_ActionColorDarker" : "#135F90",
24    "_HoverColor" : "rgba(25, 124, 190, 0.05)",
25    "ErrorFontColor" : "#ff9e9e",
26    "OverlayTextColor" : "#FFFFFF",
27    "PrimaryFont" : "Ek Mukta",
28    "LinkColor" : "#3558D6"
29    },
30  "definitionName" : "cpt:branding-cpt",
31  "label" : "Customer Account Portal",
32  "id" : "283407c3-5938-4a6b-b97f-621cda6968c8",
33  "type" : "brandingSet"
34 }

config Folder

The config folder contains several JSON files.

sitename.json
languages.json
page_name.json
One for each single-page application in the site: loginAppPage.json and mainAppPage.json
Note

sitename.json File Properties

Property	Type	Description
authenticationType	string	For LWR sites, indicates whether guest users have access to the site. For Aura sites, use isAvailableToGuests instead. Note Unlike Aura sites, when you create an LWR site, you can select the site’s authentication type—Authenticated or Unauthenticated—in the site creation wizard. Valid values are: `AUTHENTICATED`: The site isn’t public. Only authenticated users can access the site after logging in. `AUTHENTICATED_WITH_PUBLIC_ACCESS_ENABLED`: The site is an authenticated site, but the Public can access the site checkbox is enabled in Experience Builder in Settings \| General. Guest users can access the site. `UNAUTHENTICATED`: The unauthenticated site is publicly available to anyone on the web, and doesn’t support login or authentication. Guest users can access the site. Available in API version 51.0 and later.
forgotPasswordRouteId	UUID	Represents the ID of the route to use when a user forgets their password. Unsupported if the active Experience Builder template for the site doesn't support login (such as Help Center). Note
isAvailableToGuests	boolean	For Aura sites, indicates whether public users have access to the site (`true`) or not (`false`). The default value is `false`. For LWR sites, use authenticationType instead. Note
isFilteredComponentsView	boolean	Indicates whether the list of components is filtered based on the current page type (`true`) or not (`false`). Some components require specific parameters from the page and don't work unless you manually configure them. The default value is `false`.
isProgressiveRenderingEnabled	boolean	Indicates whether the display order of page components is prioritized (`true`) or not (`false`). The default value is `false`.
loginAppPageId	UUID	Represents the ID of the login page. Unsupported if the active Experience Builder template for the site doesn't support login (such as Help Center). Note
mainAppPageId	UUID	Required. Represents the ID of the main page.
preferredDomain	string	Represents the name of the domain to use for indexing a site’s pages. Improves search engine results. Available in API version 48.0 and later.
preferredDomainId	string	Represents the domain to use for indexing a site’s pages. Improves search engine results. Removed in API version 48.0. Use preferredDomain instead.
selfRegistrationRouteId	UUID	Represents the ID of the login route to use for self-registration. Unsupported if the active Experience Builder template for the site doesn't support login (such as Help Center). Note
type	string	Represents the component type. The only supported value is `site`.

trustedSitesForScript container

When implemented, there is one trustedSitesForScript container in sitename.json.

Property	Type	Description
id	UUID	Represents the component's GUID.
isActive	boolean	Indicates if allowlisted item is active (`true`) and should be respected or inactive (`false`) and should not be treated as an allowlisted source. Default is `false`.
trustedSiteName	string	Name of the allowlisted source as it appears in the UI.
trustedSiteUrl	string	The fully qualified URL of the allowlisted source.
type	string	Represents the component type. The only supported value is `trustedSitesForScripts`.

1{
2   "isAvailableToGuests" : false,
3   "isFilteredComponentsView" : false,
4   "mainAppPageId" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
5   "loginAppPageId" : "58e9939a-84b2-498d-bbc5-7a89d89087fa",
6   "selfRegistrationRouteId" : "ad5c8bf1-297f-4ad3-b47c-0e35d85f10ef",
7   "forgotPasswordRouteId" : "e3139f6f-44d8-4eec-be9d-3609ce063039",
8   "isProgressiveRenderingEnabled" : false,
9   "preferredDomain" : "none",
10   "selfRegistrationRouteId" : "b8fe8ab1-f266-41e1-a63b-4791165f3c1d",
11   "trustedSitesForScript" : [ {
12     "id" : "92c489e2-0b7b-4a48-9c88-bef7e8fe6f1b",
13     "isActive" : true,
14     "trustedSiteName" : "test",
15     "trustedSiteUrl" : "https://123.com",
16     "type" : "trustedSitesForScripts"
17   }, {
18     "id" : "92c489e2-0b7b-4a48-9c88-bef7e8fe6f1c",
19     "isActive" : true,
20     "trustedSiteName" : "test1",
21     "trustedSiteUrl" : "https://1234.com",
22     "type" : "trustedSitesForScripts"
23  } ],
24    "type" : "site"
25}

languages.json File Properties

Property	Type	Description
defaultCode	string	Required. Represents the base language code plus the country code where used.
defaultLabel	string	Required. Defines the display label for the language.
id	UUID	Represents the component's GUID.
type	string	Represents the component type. The only supported value is `languageContainer`.

There’s one section per supported language as a container in languages.json

language container

Property	Type	Description
countryCode	string	Represents the country code of the selected language. This string can be empty. It applies only when the selected language has variations depending on the country, like Arabic (Algeria) and Arabic (Bahrain). In this case, use `countryCode` to distinguish between them. For example:`{ languageCode" : "ar", "CountryCode" : "DZ", "Label" : "Arabic (Algeria) (DZ)",}, { "Code" : "ar", "CountryCode" : "BH", "Label" : "Arabic (Bahrain) (BH)",}`
fallbackLanguageId	UUID	Represents the language to use when no content is available for the selected language. For example, imagine that a site visitor chooses Japanese from the language selector, but there is no content for that page in Japanese. Content is displayed in the fallback language.
id	UUID	Represents the component's GUID.
isActive	boolean	Indicates whether a language is available to site visitors in the language selector (`true`) or not (`false`). The default value is `true`.
label	string	Defines the display label for a language. The display label appears in any language selector components that you add to your site and in the language selector in Experience Builder.
languageCode	string	Represents the language code for the selected language.
type	string	Represents the component type. The only supported value is `language`.

1{
2    "defaultCode" : "en_US",
3    "defaultLabel" : "English (US)",
4    "id" : "04597c83-0b9d-4f16-9f4d-4ec28bd553b4",
5    "type" : "languageContainer",
6    "languages" : [ {
7        "languageCode" : "af",
8        "countryCode" : "",
9        "isActive" : true,
10        "label" : "Afrikaans",
11        "fallbackLanguageId" : "c6e7fe67-55e0-47b3-ad58-bf49539249f0",
12        "id" : "22036d6f-11ce-4f7b-b7f0-f2c409f817ea",
13        "type" : "language"
14        }
15     ]
16 }

The page file represents single-page applications in the site. One file per page, named page_name.json.

Each Experience Builder site is actually a single-page application, which is a web app that loads a single HTML page. Single-page applications use multiple views to update the page dynamically as the user interacts with it.

Note

page_name.json File Properties

Property	Type	Description
cmsSettings	map	Settings for the CMS Connect header and footer. Valid values are: `headerName` `headerUrl` `headerPersonalization` `footerName` `footerUrl` `footerPersonalization` Both source and target org must have the CMSConnect and CMSPersonalization org perms enabled for settings to be retrieved.
currentThemeId	UUID	Required. Represents the UUID of the site's current theme. This field is available for mainAppPage.json and loginAppPage.json (where applicable).
headMarkup	string	Required. Allows the addition of custom markup to the site's main page `<head>` tag. Similar to using Experience Builder \| Setting \| Advanced \| Head Markup See Salesforce Help for markup guidance.
id	UUID	Required. Represents the component's GUID.
isRelaxedCSPLevel	boolean	Controls the ability to run scripts and script access to third-party hosts. The default is `false`. This field is available for mainAppPage.json and loginAppPage.json (where applicable).
label	string	Required. Represents the name of the page.
templateName	string	Required. The unique developer name of the template. Allowed values are: Help Center Template (which represents the Help Center template) CPT Community Template (which represents the Customer Account Portal template) Service Community Template (which represents the Customer Service template) Starter Template (which represents the Build Your Own template) PRM Community Template (which represents the Partner Central template) talon-template-byo (which represents the Build Your Own (LWR) template) `Custom_template_name` (which is the name of a customized template that was exported as a Bolt Solution)
type	string	Required. Represents the component type. The only supported value is `appPage`.

1{
2    "headMarkup" : null,
3    "isRelaxedCSPLevel" : false,
4    "templateName" : "Starter Template",
5    "cmsSettings" : { },
6    "currentThemeId" : "ff52089c-6ad9-4dd9-b5b5-251d4a117ce3",
7    "label" : "main",
8    "id" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
9    "type" : "appPage"
10}

routes Folder

The routes folder contains one JSON file per page, named <page_name>.json.

<page_name>.json

Property	Type	Description
activeViewId	UUID	Required. Represents the default view of the route. Used when there are no defined audiences or the user doesn’t match any audience. Available in API version 48.0 and later.
appPageId	UUID	Required. Represents the Single Page Application (SPA) page for the route. It points to either main.json or login.json.
configurationTags	string[]	Required. Represents the configuration tags for the route. The only supported value is `allow-in-static-site`. Available in API Version 51.0 and later. This is an internal property and should not be edited. Note

id	UUID	Required. Represents the component GUID. Inherited from the component.
label	string	Required. Represents the name of the route. Inherited from the component.
objectApiName	string	Required. The name of the custom object API. (Not available for standard objects.)
pageAccess	string	Required. Identifies the status of a route as public or private. When set to the default value `UseParent`, the status of the site determines the status of the route. Not editable from the user interface for routes that are always private. Valid values are `UseParent`, `Public`, and `RequiresLogin`.
routeType	string	Required. Identifies the type of route. Value is unique among all routes that share the same SPA page. The value in viewType must match.
type	string	Required. Represents the component type. The only supported value is `route`.
urlPrefix	string	Required. Represents the base URL for the route.

1{
2    "urlPrefix" : "",
3    "appPageId" : "b5fe94e2-071f-47b2-b76d-427a624cb407",
4    “configurationTags” : “allow-in-static-site”
5    "routeType" : "home",
6    "pageAccess" : "UseParent",
7    "label" : "Home",
8    "id" : "c7263124-7bc4-4147-a39a-25fe7e305b98",
9    "type" : "route"
10}

themes Folder

The themes folder contains one JSON file per theme named theme_name.json.

theme_name.json

Property	Type	Description
activeBrandingSetId	UUID	The id of the branding set currently in use. The branding set's `definitionName` must match the theme's `brandingSetReference`.
customCSS	string	Custom CSS for pages created in the Experience Builder template.
developerName	string	Required. The unique developer name of the theme. Most themes derive their names directly, for example Jepson uses `jespon` for its developerName. Standard templates have unique values: `cpt` for Customer Account Portal `service` for Customer Service `helpCenter` for Help Center `prm` for Partner Central `starter` for Build Your Own
id	UUID	Required. Represents the component's GUID.
label	string	Represents the name of the theme.
layouts	map	Required. Maps `ThemeLayoutType` to UUID, and contains the definition of the ThemeLayout. Login and Inner theme layouts are always required.
type	string	Required. Represents the component type. The only supported value is `theme`.

1{
2    "developerName" : "cpt",
3    "layouts" : {
4        "Login" : "12162c3e-06ac-43a9-adc7-db36ae5140b0",
5        "Inner" : "c09d58be-0622-4fc4-806a-ed34174929f9"
6    },
7    "customCSS" : "",
8    "activeBrandingSetId" : "283407c3-5938-4a6b-b97f-621cda6968c8",
9    "label" : "Customer Account Portal",
10    "id" : "ff52089c-6ad9-4dd9-b5b5-251d4a117ce3",
11    "type" : "theme",
12    "views" : [ {
13        "componentName" : "salesforceIdentity:loginBody2",
14        "label" : "Login",
15        "id" : "12162c3e-06ac-43a9-adc7-db36ae5140b0",
16        "type" : "view",
17        "regions" : [ {
18            "regionName" : "header",
19            "id" : "f8354922-11f2-495d-9d89-0a51943af2b0",
20            "type" : "region",
21            "components" : [ ]
22        } ]
23    } ]
24}

Views can be children of a theme. These children are structured the same as views in the views folder.

Note

variations Folder

Experience variations let you change the default behavior of the Experience Builder site based on the audience. The variations folder contains one JSON file per experience variation. The file is named experienceVariation_name.json.

Experience variations are available in API version 47.0 and later.
The name of your JSON file must match the developerName of your variation to avoid issues when deploying a site more than one time.

Note

Four distinct types of variations are supported: branding sets, page variations, component visibility, and component attributes. The different variations are indicated through the componentVariant container.

For example, you might want the site to show a page variation for the home page when a user meets certain audience criteria. To achieve this, create an audience and then target that audience to your experience variation using targetId in the componentVariant container of the experience variation definition file.

experienceVariation_name.json

Property	Type	Description
componentVariants	list	Required. A list of component variants that belong to this experience variation. Only one component variant per experience variation is allowed. Note
developerName	string	Required. The unique developer name of the experience variation. This name is used in the `targetValue` field of a Personalization API target and can’t be updated after it’s set. For more information, see Audience. Note
id	UUID	Required. Represents the GUID of the component.
type	string	Required. Represents the type of the component. The only supported value is `experienceVariation`.

When implemented, there is one container in each experienceVariation_name.json file describing the variation.

componentVariant container

Property	Type	Description
id	UUID	Required. Represents the GUID of the component.
propertyOverrides	map	Required. Defines the property overrides for the given theme, route, or component targetId. For example, if the targetId is pointing to a theme, you can override the defaultBrandingSet property of the theme to use a different branding set for this experience variation. Supported property overrides: `activeBrandingSetId` Defines which branding set to use when targetId is a theme. Uses the format: `1"activeBrandingSetId" : "ID_of_brandingset"` `activeViewId` Defines which page variation to use when targetId is a route. Uses the format: `1"activeViewId" : "ID_of_view"` `componentAttributes` Supported only for CMS Collection components and navigation components, such as Navigation Menu or Tile Menu. Components can be placed in header and footer regions, and also in the view body. Defines which navigation linkset to display when targetId is a navigation component. The value of the property is a JSON container with a single key-value pair denoting the attribute and the value of the attribute. `NavigationMenuEditorRefresh` is the only supported attribute. Uses the format: `1"componentAttributes" : { 2 "NavigationMenuEditorRefresh" : "linkset_name" 3}` Defines which content collection to display when targetId is a CMS Collection component. The value of the property is a JSON container with a single key-value pair denoting the path to the attribute and the value of the attribute. `config/dataProviderDefinition/attributes/dataProviderInfo/apiName` is the only supported attribute. Uses the format: `1"componentAttributes" : { 2 "config/dataProviderDefinition/attributes 3/dataProviderInfo/apiName":"collection_name" 4}` `isVisible` Defines whether a component is visible for the audience when targetId is a component. Unsupported for components in header or footer regions. Uses the format: `1"isVisible": boolean` Only one entry in the map is allowed. For a component, you can vary either its visibility or attributes but not both together. Note
targetId	UUID	Required. The UUID of the item whose properties you’re overriding. Must be the ID of a theme, route, or component.
type	string	Required. Represents the type of the component. The only supported value is `experienceVariation`.

Example of an experience variation for a branding set

1{
2   "id": "64e93604-78fa-11e9-8f9e-2a86e4085a59",
3   "developerName": "BrandingVariation",
4   "type": "experienceVariation",
5   "componentVariants": [{
6      "id": "4bf0af78-8d73-11e9-bc42-526af7764f64",
7      "type": "componentVariant",
8      // Theme UUID
9      "targetId": "c810858e-78fa-11e9-8f9e-2a86e4085a59",
10      "propertyOverrides": {
11         // Brandingset UUID
12         "activeBrandingSetId": "be9f4760-78fa-11e9-8f9e-2a86e4085a59"
13      }
14   }]
15}

Example of an experience variation for a page variation

1{
2   "id": "64e93604-78fa-11e9-8f9e-2a86e4085a59",
3   "developerName": "PageVariation",
4   "type": "experienceVariation",
5   "componentVariants": [{
6      "id": "4bf0af78-8d73-11e9-bc42-526af7764f64",
7      "type": "componentVariant",
8      // Route UUID
9      "targetId": "c810858e-78fa-11e9-8f9e-2a86e4085a59",
10      "propertyOverrides": {
11         // View UUID
12         "activeViewId": "be9f4760-78fa-11e9-8f9e-2a86e4085a59"
13      }
14   }]
15}

Example of an experience variation for component visibility

1{
2   "id": "64e93604-78fa-11e9-8f9e-2a86e4085a59",
3   "developerName": "ComponentVisibilityVariation",
4   "type": "experienceVariation",
5   "componentVariants": [{
6      "id": "4bf0af78-8d73-11e9-bc42-526af7764f64",
7      "type": "componentVariant",
8      // Component UUID
9      "targetId": "c810858e-78fa-11e9-8f9e-2a86e4085a59",
10      "propertyOverrides": {
11         "isVisible": true
12      }
13   }]
14}

Example of a component variation for a CMS Collection component

1{
2   "id" : "6ce1260f-cb01-45a0-8947-f2d85602a3db"
3   "developerName": "Home_CMS_Collection_Component_Properties",
4   "type": "experienceVariation",
5   "componentVariants": [{
6      "id" : "3gh1260f-cb01-45a0-8947-f2d92037a4db"
7      "type": "componentVariant",
8      "targetId": "d77369e6-7230-43e7-9b59-6e91c47b3273",
9      "propertyOverrides": {
10         "componentAttributes": {
11            "config/dataProviderDefinition/attributes/dataProviderInfo/apiName":"SilverCollection"
12         }
13      },
14   }],
15}

Example of a component variation for Navigation Menu component

1{
2   "id" : "8cf943b8-525d-4c13-a719-6ebc7d61a81e",
3   "developerName" : "Default_Navigation_Menu_Component_Properties",
4   "type" : "experienceVariation",
5   "componentVariants" : [{
6      "id" : "5be1260f-cb01-45a0-8947-f2d85602a4db",
7      "type" : "componentVariant",
8      "targetId" : "fdf9eb51-ddc5-4e79-9ea8-5b94f5ca8db4",
9      "propertyOverrides" : {
10         "componentAttributes" : {
11            "NavigationMenuEditorRefresh" : "NavMenu1"
12         }
13      },
14   }],
15}

views Folder

The views folder contains several JSON files that each define a view. Each Experience Builder site is built from single-page applications, which are web apps that load a single HTML page. Single-page applications consist of multiple views that update the page dynamically as the user interacts with it.

A view is made up of regions that contain other regions or components in the rendered page for the user. Within the views folder there is one file per view, named view_name.json.

Single-page applications in your site are defined in the page files of the config folder.

Note

view_name.json

Property	Type	Description
appPageId	UUID	Required. Single Page Application (SPA) page ID of the view. It points to either main.json or login.json.
componentName	string	Required. The FQN of the layout component. The component must implement `forceCommunity:layout` or, for theme layouts, `forceCommunity:themeLayout`
id	UUID	Required. Represents the GUID of the component.
label	string	Required. The name that appears in Experience Builder \| Settings \| Theme \| Configure.
themeLayoutType	string	Theme layout type of the view (exposed only for views).
type	string	Required. Represents the type of the component. The only supported value is `view`.
viewType	string	Required. Matches routeType for the route.

There are one or more regions as a container in each <view_name>.json

region container

Property	Type	Description
id	UUID	Required. Represents the component GUID.
regionLabel	string	Specifies region labels for tabs. This property is present only for tab regions that are children of a component. Note
regionName	string	Required. Matches the design attribute in the design file of the layout component.
type	string	Required. Represents the component type. The only supported value is `region`.

There are one or more components as a container in the region section of each <view_name>.json

component container

Property	Type	Description
componentAttributes	HashMap	Required. The design attribute values of the component.
componentName	string	Required. The FQN of the component. Only components that can be used in the component panel in Experience Builder can be used in this field.
id	UUID	Required. Represents the component GUID. If you add a component to ExperienceBundle, you can enter any value because the system automatically generates a UUID for the component when deployed. Note
renderPriority	enums.priority	Sets priority value for progressive rendering of the component. Possible Values: `HIGHEST`, `HIGH`, `NEUTRAL` Only evaluated if the site has progressive rendering turned on in Experience Builder \| Settings \| Advanced. Note
renditionMap	HashMap	Map of different rendition keys to UUIDs of RenditionComponents.
scopedBrandingSetID	UUID	Required for LWR sites. Not applicable for Aura sites. Represents the ID of a branding set for a specific `community_layout:section` component. Available in API Version 52.0 and later.
type	string	Required. Represents the component type. The only supported value is `component`.

Each component can have a rendition container in each <view_name>.json

rendition container

Property	Type	Description
id	UUID	Required. Represents the component GUID.
renditionValue	map	Map of different variations of a component, such as different languages of text.
type	string	Required. Represents the component type. The only supported value is `renditionComponent`.

1{
2    "themeLayoutType" : "Inner",
3    "viewType" : "account-management",
4    "appPageId" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
5    "componentName" : "siteforce:sldsOneColLayout",
6    "label" : "Account Management",
7    "id" : "9ca8fa47-8e87-4915-a6f7-c2d8d37f3076",
8    "type" : "view",
9    "regions" : [ {
10         "regionName" : "content",
11         "id" : "969ada98-7d72-4e45-8a10-7db51fae247c",
12         "type" : "region",
13         "components" : [ {
14            "componentName" : "forceCommunity:tabset",
15            "componentAttributes" : {
16                "tabsetConfig" : "{\"UUID\":\"4711850e-ffdc-4375-a45e-f716bcdbbb1c\",\"activeTab\":\"tab1\",
17                \"useOverflowMenu\":false,\"tabs\":[{\"UUID\":\"bc8fb51f-4783-43d4-9376-60c07677a367\",\"tabName\":\"Members\",
18                \"tabKey\":\"tab1\",\"locked\":false,\"allowGuestUser\":false,\"seedComponents\":[{\"fqn\":\"forceCommunity:relatedList\",
19                \"attributes\":{\"parentRecordId\":\"{!CurrentUser.accountId}\",\"relatedListName\":\"Users\",\"customTitle\":\"Members\",
20                \"showCustomTitle\":\"true\",\"showBreadCrumbs\":\"false\",\"showRowNumbers\":\"false\",\"showManualRefreshButton\":\"false\"}}]},
21                {\"UUID\":\"f2793a99-b757-4be4-846f-dc98a13a8139\",\"tabName\":\"Branding\",\"tabKey\":\"tab2\",\"locked\":false,
22                \"allowGuestUser\":false,\"seedComponents\":[{\"fqn\":\"forceCommunity:accountBrandRecord\",
23                \"attributes\":{\"recordId\":\"{!CurrentUser.accountId}\"}}]}]}",
24                "regions" : ""
25            },
26            "renderPriority" : "NEUTRAL",
27            "renditionMap" : { },
28            "id" : "4711850e-ffdc-4375-a45e-f716bcdbbb1c",
29            "type" : "component",
30            "renditions" : [ {
31               "renditionValue" : {
32                  "LumenInstanceAttributes" : {
33                  "richTextValue" : "<p>new text</p>"
34                  }
35               },
36              "id" : "9d8878df-f520-4010-861c-57b930a3daab",
37              "type" : "renditionComponent"
38            } ]
39        } ]
40    } ]
41}

Declarative Metadata Sample Definition

Here’s an example of an ExperienceBundle declaration. For individual folder and file examples for the bundled code, see brandingSets, config, routes, themes, variations, and views.

1<xsd:complexType name="ExperienceBundle">
2    <xsd:complexContent>
3        <xsd:extension base="tns:Metadata">
4            <xsd:sequence>
5                <xsd:element name="experienceResources" minOccurs="0" type="tns:ExperienceResources"/>
6                <xsd:element name="label" type="xsd:string"/>
7                <xsd:element name="type" type="tns:SiteType"/>
8            </xsd:sequence>
9        </xsd:extension>
10    </xsd:complexContent>
11</xsd:complexType>
12    <xsd:complexType name="ExperienceResources">
13        <xsd:sequence>
14            <xsd:element name="experienceResource" minOccurs="0" maxOccurs="unbounded" type="tns:ExperienceResource"/>
15        </xsd:sequence>
16    </xsd:complexType>
17<xsd:complexType name="ExperienceResource">
18    <xsd:sequence>
19        <xsd:element name="fileName" type="xsd:string"/>
20        <xsd:element name="format" type="xsd:string"/>
21        <xsd:element name="source" minOccurs="0" type="xsd:base64Binary"/>
22        <xsd:element name="type" type="xsd:string"/>
23    </xsd:sequence>
24</xsd:complexType>

Usage

Before you update the .json files of an Experience Builder site, we recommend making a copy of the site’s folder as a backup.

Tip

When you add a component to ExperienceBundle, you can enter any value for the id, because the system automatically generates a UUID for the component when deployed.

When deploying an Experience Builder site with ExperienceBundle, ensure that the SiteDotCom type isn’t included in the manifest file.

ExperienceBundle doesn’t support retrieving and deploying across different API versions. If you’re trying to upgrade ExperienceBundle metadata from an earlier API version to a later one—for example, from API version 48.0 to 49.0—take the following steps:

Set the API version in the package.xml manifest file to 48.0 and deploy the package.
Then, set the API version in package.xml to 49.0.
Retrieve the package to get the latest ExperienceBundle updates.

Wildcard Support in the Manifest File

This metadata type supports the wildcard character * (asterisk) in the package.xml manifest file. For information about using the manifest file, see Deploying and Retrieving Metadata with the Zip File.

Metadata API Developer Guide

File Suffix and Directory Location

Version

Special Access Rules

Fields

ExperienceResources

ExperienceResource

Folders and Bundled Definitions

brandingSets Folder

config Folder

routes Folder

themes Folder

variations Folder

views Folder

Declarative Metadata Sample Definition

Usage

Wildcard Support in the Manifest File

See Also
