ExperienceBundle (Developer Preview)

ExperienceBundle is available as a developer preview. ExperienceBundle isn’t generally available unless or until Salesforce announces its general availability in documentation or in press releases or public statements. All commands, parameters, and other features are subject to change or deprecation at any time, with or without notice. Don't implement functionality developed with these commands or tools.

File Suffix and Directory Location

ExperienceBundle components have the suffix .json and are stored in the experiences folder when retrieved. Each community in your org has its own folder. Each of these folders contains other folders for the supported properties.

The ExperienceBundle can contain one or more community definitions under the experiences folder. Each community definition has resource folders for brandingSets, config, routes, themes, and views each with additional, related configuration information in JSON files. Here’s an example community definition.

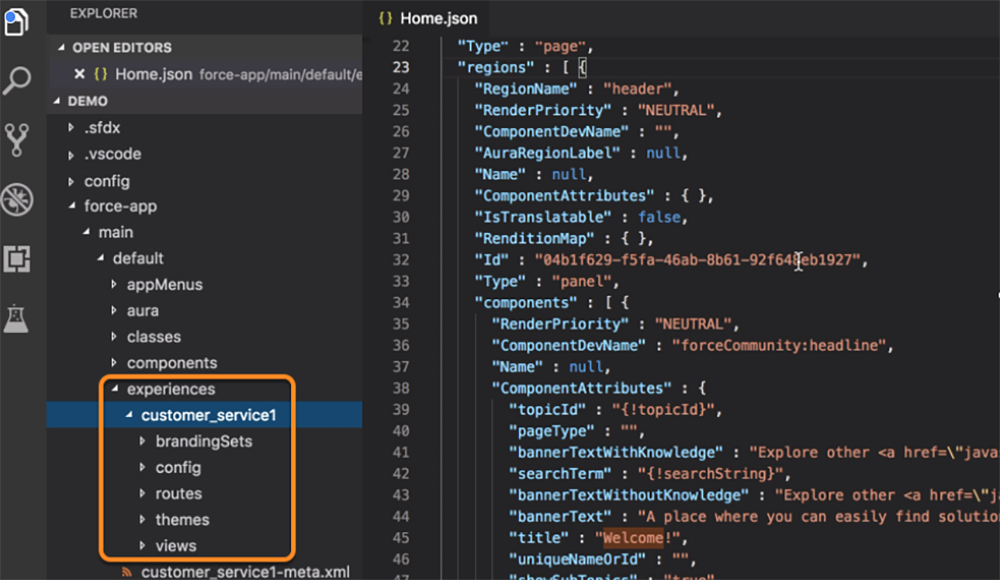

ExperienceBundle folder structure with example JSON file open.

Version

ExperienceBundle components are available in API version 46.0 and later.

This release contains a Developer Preview version of ExperienceBundle Metadata API that is production quality but has known limitations. To provide feedback and suggestions, go to IdeaExchange.

Note

Special Access Rules

While in Developer Preview, ExperienceBundle is available only in Developer Edition orgs. To access ExperienceBundle, select "Enable ExperienceBundle Metadata API" in the Community Management Settings section under Settings | Community Settings.

Fields

Field Name	Field Type	Description
experienceResources	ExperienceResources	The list of resources in this ExperienceBundle. Each resource represents an artifact of a community such as brandingSets, config, routes, themes, and views.
label	string	Required. Represents the name of the ExperienceBundle.
type	SiteType	Required. Identifies the kind of site. Only Lightning communities are supported, using the value `ChatterNetworkPicasso`.

ExperienceResources

Represents a list of communities in the bundle.

Field Name	Field Type	Description
experienceResource	ExperienceResource	The list of resources in this ExperienceBundle. Each resource represents a property for the community, such as brandingSets, config, routes, themes, and views.

ExperienceResource

Represents specific community information included in the ExperienceBundle.

Each type has a folder in the structure. Each folder contains one or more files providing information about that type and the site. Each corresponds to a specific folder and file in the ExperienceBundle.

Field Name	Field Type	Description
fileName	string	Required. Name of resource file.
format	string	Required. Only `JSON` is allowed.
source	base64	The `JSON` content of each file.
type	string	Required. The type of the resource. Valid values are: `brandingSets` `config` `routes` `themes` `views`

Folders and Bundled Definitions

Each ExperienceBundle includes five folders and associated data that is contained in JSON files.

brandingSets Folder

This folder contains one JSON file per brandingset, named brandingSets_name.json. Each file has the same structure and properties.

<brandingSets_name>.json

Property	Type	Description
definitionName	string	Required. Represents the name for the branding set that is used in grouping branding sets under a theme. Defined as `theme`:branding-`theme`. For example, if the community theme is Stella, the definitionName would be `stella:branding-stella`. In addition, there are several standard templates that have unique naming: Customer Account Portal uses `cpt:branding-cpt` Customer Service uses `service:branding-service` Help Center uses `helpCenter:branding-helpCenter` Partner Central uses `prm:branding-prm` Build Your Own uses `starter:branding-starter` The combination of definitionName + label must be unique in your org. Note
id	UUID	Represents the component's GUID.
label	string	Represents the name of the branding set. The combination of definitionName + label must be unique in your org. Note
type	string	Represents the component type. The only supported value is `brandingSet`.
values	map	Required. Represents a map of branding values that can be applied to a community.

1{
2  "values" : {
3    "HeaderBackgroundColor" : "#FFFFFF",
4    "TextTransformStyle" : "none",
5    "BorderColor" : "#D4D4D4",
6    "DetailTextColor" : "#5A5A5A",
7    "HeaderFonts" : "Ek Mukta",
8    "CardBackgroundColor" : "rgba(255, 255, 255, 0)",
9    "LoginBackgroundColor" : "#F4F4F4",
10    "_ActionColorTrans" : "rgba(25, 124, 190, 0.9)",
11    "LoginBackgroundImage" : "../../../../sfsites/picasso/core/external/salesforceIdentity/images/background.jpg?v=1",
12    "PageBackgroundColor" : "#F5F7FA",
13    "_HeaderTextColor" : "rgba(34,34,34,.8)",
14    "_NavigationMenuHoverColor" : "rgba(255,255,255,.2)",
15    "_HeaderInputBackgroundColor" : "rgba(255,255,255,.4)",
16    "TextColor" : "#222222",
17    "NavigationMenuTextColor" : "#222222",
18    "_HeaderPlaceholderTextColor" : "rgba(85,85,85,.8)",
19    "_OverlayTextColorShadow" : "#000000",
20    "ActionColor" : "#0099DE",
21    "CompanyLogo" : "",
22    "_LinkColorDarker" : "#135F90",
23    "_ActionColorDarker" : "#135F90",
24    "_HoverColor" : "rgba(25, 124, 190, 0.05)",
25    "ErrorFontColor" : "#ff9e9e",
26    "OverlayTextColor" : "#FFFFFF",
27    "PrimaryFont" : "Ek Mukta",
28    "LinkColor" : "#3558D6"
29    },
30  "definitionName" : "cpt:branding-cpt",
31  "label" : "Customer Account Portal",
32  "id" : "283407c3-5938-4a6b-b97f-621cda6968c8",
33  "type" : "brandingSet"
34 }

config Folder

The config folder contains several JSON files.

sitename.json
languages.json
page_name.json
One for each single-page application in the site: loginAppPage.json and mainAppPage.json
Note

sitename.json File Properties

Property	Type	Description
forgotPasswordRouteId	UUID	Represents the ID of the route to use when a user forgets their password. Not supported if the active template for the community doesn't support login (such as Help Center). Note
isAvailableToGuests	boolean	Indicates whether public users have access to the site (`true`) or not (`false`). The default value is `false`. Not supported if the active template for the community doesn't support login (such as Help Center). Note
isFilteredComponentsView	boolean	Indicates whether the list of components is filtered based on the current page type (`true`) or not (`false`). Some components require specific parameters from the page and don't work unless you manually configure them. The default value is `false`.
isProgressiveRenderingEnabled	boolean	Indicates whether the display order of page components is prioritized (`true`) or not (`false`). The default value is `false`.
loginAppPageId	UUID	Represents the ID of the login page. Not supported if the active template for the community doesn't support login (such as Help Center). Note
mainAppPageId	UUID	Required. Represents the ID of the main page.
preferredDomainId	string	Represents the domain to use for indexing a community’s pages. Improves search engine results.
selfRegistrationRouteId	UUID	Represents the ID of the login route to use for self-registration. Not supported if the active template for the community doesn't support login (such as Help Center). Note
type	string	Represents the component type. The only supported value is `site`.

1{
2   "isAvailableToGuests" : false,
3   "isFilteredComponentsView" : false,
4   "mainAppPageId" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
5   "loginAppPageId" : "58e9939a-84b2-498d-bbc5-7a89d89087fa",
6   "selfRegistrationRouteId" : "ad5c8bf1-297f-4ad3-b47c-0e35d85f10ef",
7   "forgotPasswordRouteId" : "e3139f6f-44d8-4eec-be9d-3609ce063039",
8   "isProgressiveRenderingEnabled" : false,
9   "preferredDomainId" : "none",
10   "type" : "site"
11}

languages.json File Properties

Property	Type	Description
defaultCode	string	Required. Represents the base language code plus the country code where used.
defaultLabel	string	Required. Defines the display label for the language.
id	UUID	Represents the component's GUID.
type	string	Represents the component type. The only supported value is `languageContainer`.

There is one section per supported language as a container in languages.json

language container

Property	Type	Description
countryCode	string	Represents the country code of the selected language. This string can be empty. It applies only when the selected language has variations depending on the country, like Arabic (Algeria) and Arabic (Bahrain). In this case, use `countryCode` to distinguish between them. For example:`{ languageCode" : "ar", "CountryCode" : "DZ", "Label" : "Arabic (Algeria) (DZ)",}, { "Code" : "ar", "CountryCode" : "BH", "Label" : "Arabic (Bahrain) (BH)",}`
fallbackLanguageId	UUID	Represents the language to use when no content is available for the selected language. For example, imagine that a community visitor chooses Japanese from the language selector, but there is no content for that page in Japanese. Content is displayed in the fallback language.
id	UUID	Represents the component's GUID.
isActive	boolean	Indicates whether a language is available to community visitors in the language selector (`true`) or not (`false`). The default value is `true`.
label	string	Defines the display label for a language. The display label appears in any language selector components that you add to your community and in the language selector in Community Builder.
languageCode	string	Represents the language code for the selected language.
type	string	Represents the component type. The only supported value is `language`.

1{
2    "defaultCode" : "en_US",
3    "defaultLabel" : "English (US)",
4    "id" : "04597c83-0b9d-4f16-9f4d-4ec28bd553b4",
5    "type" : "languageContainer",
6    "languages" : [ {
7        "languageCode" : "af",
8        "countryCode" : "",
9        "isActive" : true,
10        "label" : "Afrikaans",
11        "fallbackLanguageId" : "c6e7fe67-55e0-47b3-ad58-bf49539249f0",
12        "id" : "22036d6f-11ce-4f7b-b7f0-f2c409f817ea",
13        "type" : "language"
14        }
15     ]
16 }

The page file represents single-page applications in the community. One file per page, named page_name.json.

Each Lightning community is actually a single-page application, which is a web app that loads a single HTML page. Single-page applications use multiple views to update the page dynamically as the user interacts with it.

Note

page_name.json File Properties

Property	Type	Description
cmsSettings	map	Settings for the CMS Connect header and footer. Allowed values: headerName headerUrl headerPersonalization footerName footerUrl footerPersonalization Both source and target org must have the CMSConnect and CMSPersonalization org perms enabled for settings to be retrieved. Not supported if the active template for the community doesn't support login (such as Help Center). Note
currentThemeId	UUID	Required. Represents the UUID of the site's current theme. This field is available only for the site's main page. Not supported if the active template for the community doesn't support login (such as Help Center). Note
headMarkup	string	Required. Allows the addition of custom markup to the community's main page `<head>` tag. Similar to using Community Builder \| Setting \| Advanced \| Head Markup See Salesforce Help for markup guidance. Not supported if the active template for the community doesn't support login (such as Help Center). Note
id	UUID	Required. Represents the component's GUID.
isRelaxedCSPLevel	boolean	Controls the ability to run scripts and script access to third-party hosts. The default is `false`. Not supported if the active template for the community doesn't support login (such as Help Center). Note
label	string	Required. Represents the name of the page.
templateName	string	Required. Represents the unique developer name of the template page. Allowed values are: Help Center Customer Account Portal Community Template Customer Service Build Your Own Partner Central `Custom template` (name which was used during the template creation)
type	string	Required. Represents the component type. The only supported value is `appPage`.

1{
2    "headMarkup" : null,
3    "isRelaxedCSPLevel" : false,
4    "templateName" : "CPT Community Template",
5    "cmsSettings" : { },
6    "currentThemeId" : "ff52089c-6ad9-4dd9-b5b5-251d4a117ce3",
7    "label" : "main",
8    "id" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
9    "type" : "appPage"
10}

routes Folder

The routes folder contains one JSON file per page, named <page_name>.json.

<page_name>.json

Property	Type	Description
appPageId	UUID	Required. Represents the Single Page Application (SPA) page for the route. It points to either main.json or login.json.
id	UUID	Required. Represents the component GUID. Inherited from the component.
label	string	Required. Represents the name of the route. Inherited from the component.
objectApiName	string	Required. The name of the custom object API. (Not available for standard objects.)
pageAccess	string	Required. Identifies the status of a route as public or private. When set to the default value `UseParent`, the status of the site determines the status of the route. Not editable from the user interface for routes that are always private. Valid values are `UseParent`, `Public`, and `RequireLogin`.
routeType	string	Required. Identifies the type of route. Value is unique among all routes that share the same RoutePage.
type	string	Required. Represents the component type. The only supported value is `route`.
urlPrefix	string	Required. Represents the base URL for the route.

1{
2    "urlPrefix" : "",
3    "appPageId" : "b5fe94e2-071f-47b2-b76d-427a624cb407",
4    "routeType" : "home",
5    "pageAccess" : "UseParent",
6    "label" : "Home",
7    "id" : "c7263124-7bc4-4147-a39a-25fe7e305b98",
8    "type" : "route"
9}

themes Folder

The themes folder contains one JSON file per theme named theme_name.json.

theme_name.json

Property	Type	Description
activeBrandingSetId	UUID	The id of the branding set currently in use. The branding set's `definitionName` must match the theme's `brandingSetReference`.
customCSS	string	Custom CSS for pages created from Lightning community template.
developerName	string	Required. The unique developer name of the theme. Most themes derive their names directly, for example Jepson uses `jespon` for its developerName. Standard templates have unique values: `cpt` for Customer Account Portal `service` for Customer Service `helpCenter` for Help Center `prm` for Partner Central `starter` for Build Your Own
id	UUID	Required. Represents the component's GUID.
label	string	Represents the name of the theme.
layouts	map	Required. Maps `ThemeLayoutType` to UUID, and contains the definition of the ThemeLayout. Login and Inner theme layouts are always required.
type	string	Required. Represents the component type. The only supported value is `theme`.

1{
2    "developerName" : "cpt",
3    "layouts" : {
4        "Login" : "12162c3e-06ac-43a9-adc7-db36ae5140b0",
5        "Inner" : "c09d58be-0622-4fc4-806a-ed34174929f9"
6    },
7    "customCSS" : "",
8    "activeBrandingSetId" : "283407c3-5938-4a6b-b97f-621cda6968c8",
9    "label" : "Customer Account Portal",
10    "id" : "ff52089c-6ad9-4dd9-b5b5-251d4a117ce3",
11    "type" : "theme",
12    "views" : [ {
13        "componentName" : "salesforceIdentity:loginBody2",
14        "label" : "Login",
15        "id" : "12162c3e-06ac-43a9-adc7-db36ae5140b0",
16        "type" : "view",
17        "regions" : [ {
18            "regionName" : "header",
19            "id" : "f8354922-11f2-495d-9d89-0a51943af2b0",
20            "type" : "region",
21            "components" : [ ]
22        } ]
23    } ]
24}

Views can be children of a theme. These children are structured the same as views in the views folder.

Note

views Folder

The views folder contains several JSON files that each define a view. Each Lightning community is built from single-page applications, which are web apps that load a single HTML page. Single-page applications consist of multiple views that update the page dynamically as the user interacts with it.

A view is made up of regions that contain other regions or components in the rendered page for the user. Within the views folder there is one file per view, named view_name.json.

Single-page applications in your community are defined in the page files of the config folder.

Note

view_name.json

Property	Type	Description
appPageId	UUID	Required. Single Page Application (SPA) page ID of the view. It points to either main.json or login.json.
componentName	string	Required. The FQN of the layout component. The component must implement `forceCommunity:layout` or, for theme layouts, `forceCommunity:themeLayout`
id	UUID	Required. Represents the GUID of the component.
label	string	Required. The name that appears in Community Builder \| Settings \| Theme \| Configure.
themeLayoutType	string	Theme layout type of the view (exposed only for views).
type	string	Required. Represents the type of the component. The only supported value is `view`.
viewType	string	Required. Matches `routeType` for the route.

There are one or more regions as a container in each <view_name>.json

region container

Property	Type	Description
id	UUID	Required. Represents the component GUID.
regionLabel	string	Specifies region labels for tabs. This property is present only for tab regions that are children of a component. Note
regionName	string	Required. Matches the design attribute in the design file of the layout component.
type	string	Required. Represents the component type. The only supported value is `region`.

There are one or more components as a container in the region section of each <view_name>.json

component container

Property	Type	Description
componentAttributes	HashMap	Required. The design attribute values of the component.
componentName	string	Required. The FQN of the component. Only components that can be used in the component panel in Community Builder can be used in this field.
id	UUID	Required. Represents the component GUID.
renderPriority	enums.priority	Sets priority value for progressive rendering of the component. Possible Values: `HIGHEST`, `HIGH`, `NEUTRAL` Only evaluated if the community has progressive rendering turned on in Community Builder \| Settings \| Advanced. Note
renditionMap	HashMap	Map of different rendition keys to UUIDs of RenditionComponents.
type	string	Required. Represents the component type. The only supported value is `component`.

Each component can have a rendition container in each <view_name>.json

rendition container

Property	Type	Description
id	UUID	Required. Represents the component GUID.
renditionValue	map	Map of different variations of a component, such as different languages of text.
type	string	Required. Represents the component type. The only supported value is `renditionComponent`.

1{
2    "themeLayoutType" : "Inner",
3    "viewType" : "account-management",
4    "appPageId" : "df9907cb-6e68-4ca1-8bb2-51173ca5374e",
5    "componentName" : "siteforce:sldsOneColLayout",
6    "label" : "Account Management",
7    "id" : "9ca8fa47-8e87-4915-a6f7-c2d8d37f3076",
8    "type" : "view",
9    "regions" : [ {
10         "regionName" : "content",
11         "id" : "969ada98-7d72-4e45-8a10-7db51fae247c",
12         "type" : "region",
13         "components" : [ {
14            "componentName" : "forceCommunity:tabset",
15            "componentAttributes" : {
16                "tabsetConfig" : "{\"UUID\":\"4711850e-ffdc-4375-a45e-f716bcdbbb1c\",\"activeTab\":\"tab1\",\"useOverflowMenu\":false,\"tabs\":[{\"UUID\":\"bc8fb51f-4783-43d4-9376-60c07677a367\",\"tabName\":\"Members\",\"tabKey\":\"tab1\",\"locked\":false,\"allowGuestUser\":false,\"seedComponents\":[{\"fqn\":\"forceCommunity:relatedList\",\"attributes\":{\"parentRecordId\":\"{!CurrentUser.accountId}\",\"relatedListName\":\"Users\",\"customTitle\":\"Members\",\"showCustomTitle\":\"true\",\"showBreadCrumbs\":\"false\",\"showRowNumbers\":\"false\",\"showManualRefreshButton\":\"false\"}}]},{\"UUID\":\"f2793a99-b757-4be4-846f-dc98a13a8139\",\"tabName\":\"Branding\",\"tabKey\":\"tab2\",\"locked\":false,\"allowGuestUser\":false,\"seedComponents\":[{\"fqn\":\"forceCommunity:accountBrandRecord\",\"attributes\":{\"recordId\":\"{!CurrentUser.accountId}\"}}]}]}",
17                "regions" : ""
18            },
19            "renderPriority" : "NEUTRAL",
20            "renditionMap" : { },
21            "id" : "4711850e-ffdc-4375-a45e-f716bcdbbb1c",
22            "type" : "component",
23            "renditions" : [ {
24               "renditionValue" : {
25                  "LumenInstanceAttributes" : {
26                  "richTextValue" : "<p>new text</p>"
27                  }
28               },
29              "id" : "9d8878df-f520-4010-861c-57b930a3daab",
30              "type" : "renditionComponent"
31            } ]
32        } ]
33    } ]
34}

Declarative Metadata Sample Definition

Here’s an example of an ExperienceBundle declaration. For individual folder and file examples for the bundled code, see brandingSets, config, routes, themes, and views.

1<xsd:complexType name="ExperienceBundle">
2    <xsd:complexContent>
3        <xsd:extension base="tns:Metadata">
4            <xsd:sequence>
5                <xsd:element name="experienceResources" minOccurs="0" type="tns:ExperienceResources"/>
6                <xsd:element name="label" type="xsd:string"/>
7                <xsd:element name="type" type="tns:SiteType"/>
8            </xsd:sequence>
9        </xsd:extension>
10    </xsd:complexContent>
11</xsd:complexType>
12    <xsd:complexType name="ExperienceResources">
13        <xsd:sequence>
14            <xsd:element name="experienceResource" minOccurs="0" maxOccurs="unbounded" type="tns:ExperienceResource"/>
15        </xsd:sequence>
16    </xsd:complexType>
17<xsd:complexType name="ExperienceResource">
18    <xsd:sequence>
19        <xsd:element name="fileName" type="xsd:string"/>
20        <xsd:element name="format" type="xsd:string"/>
21        <xsd:element name="source" minOccurs="0" type="xsd:base64Binary"/>
22        <xsd:element name="type" type="xsd:string"/>
23    </xsd:sequence>
24</xsd:complexType>

This metadata type supports the wildcard character * (asterisk) in the package.xml manifest file. For information about using the manifest file, see Deploying and Retrieving Metadata with the Zip File.

Metadata API Developer Guide

File Suffix and Directory Location

Version

Special Access Rules

Fields

ExperienceResources

ExperienceResource

Folders and Bundled Definitions

brandingSets Folder

config Folder

routes Folder

themes Folder

views Folder

Declarative Metadata Sample Definition

See Also
