Unbundled Promotions: A Deeper Look

Now that we know the main custom objects involved in an unbundled promotion, let’s step through the different phases of the promotion and check the status of these objects at each phase.

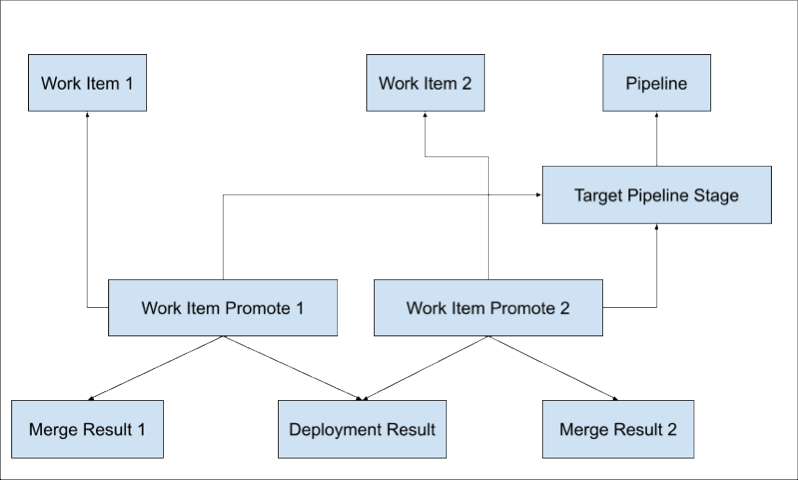

Here’s a graphic that shows an unbundled promotion of two work items and how the associated objects are connected.

Relationship diagram for the objects involved in unbundled promotions, such as Work Item, Work Item Promote, Merge Result, Deployment Result, and more.

When a user initiates an unbundled promotion, DevOps Center creates a record of Work Item Promote for every work item in the promotion. Each work item is still associated with a feature branch in the user’s source control repository, so each of these branches must be merged into the branch associated with the target stage environment. This relationship means that every Work Item Promote record has an associated Merge Result record. But there’s only one metadata deployment for the entire promotion (to the associated stage environment), so each Work Item Promote record points to a shared record of Deployment Result.

Let’s start! For our example, assume a user promotes a single work item (WI-000003) from the Integration stage to UAT. In this example, the promotion is initiated in the DevOps Center UI.

State Before a Promotion

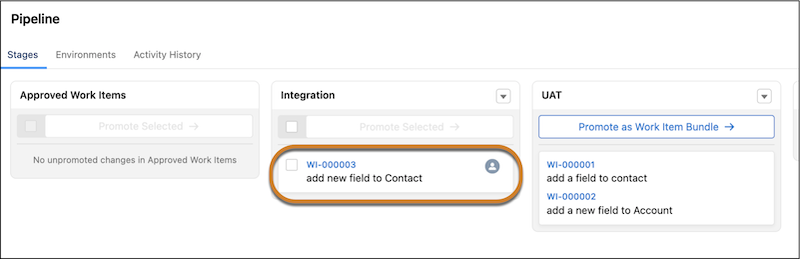

Here’s WI-000003 in DevOps Center, ready to be promoted.

DevOps Center showing work item WI-000003 ready to be promoted from the Integration stage to UAT stage.

This table lists the state of the existing custom object records associated with the unbundled promotion before it begins. Not all objects and fields are listed, only the ones that are interesting and relevant.

Custom Object	Relevant Field	Value	Notes
Work Item	Status	NULL	See How DevOps Center Uses Asynchronous Operations for more information.
	Promoted	TRUE
	Review Remote Reference	Unique ID of the change request between this work item’s feature branch and the target stage.
Pipeline Stage	Status	NULL	See How DevOps Center Uses Asynchronous Operations for more information.
Work Item Promote DevOps Center created this record when the work item was previously promoted from the Approved Work Item stage to Integration.	Work Item	WI-000003
	Pipeline Stage	Integration
	Status	A reference to an Async Operation Result record in the Completed status.

State During a Promotion

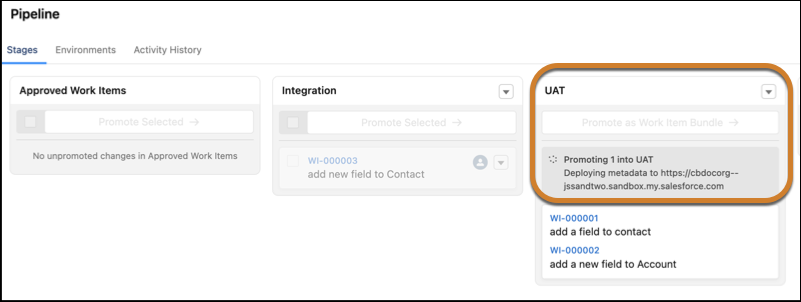

The user now promotes the work item from the Integration stage to the UAT stage by selecting the item and clicking Promote Selected. Here’s the promotion in progress:

DevOps Center showing a promotion into the UAT stage in progress.

Let’s further split this phase into two subphases:

Immediately after a user clicks Promote Selected.
The moment when the Heroku application takes over.

Immediately after the user clicks Promote Selected, DevOps Center queues the promotion and updates the object model, as shown in this table. The New or Existing? column specifies whether DevOps Center creates a record of the object in this promotion phase or if a record exists.

Custom Object	New or Existing?	Relevant Field	Value	Notes
Async Operation Result	New	Status	In Progress
		Operation	AD_HOC_PROMOTE
		Message		The asynchronous process regularly updates this field with the current status.
Work Item	Existing	Status	ID of the new Async Operation Result record.
Pipeline Stage	Existing	Status	ID of the new Async Operation Result record.
Work Item Promote This new record represents the current promotion from the Integration stage to UAT.	New	Work Item	WI-000003
		Pipeline Stage	UAT
		Status	ID of the new Async Operation Result record.
Deployment Result	New	n/a
Merge Result	New	Source Branch	The feature branch associated with the work item.
Merge Result	New	Target Branch	The branch associated with the UAT stage.

DevOps Center then fires off a request to Heroku to perform the async processing, such as deploying metadata to the appropriate environment and merging branches. Here’s what the object model looks like when Heroku takes over.

Custom Object	Relevant Field	Value (Changed by Heroku)	Notes
Async Operation Result	Message	Status messages based on the state of the promotion.
Deployment Result	Deployment Id	The metadata deployment ID for this promotion.	DevOps Center sets this value as soon as the user initiates the promotion.
Merge Result	Remote Reference	Merge ID (called a SHA in GitHub) of the merge commit from the feature branch to the target stage’s branch.
Merge Result	Previous Remote Reference	The SHA of the target stage’s branch before this work item was merged.

State When a Promotion Succeeds

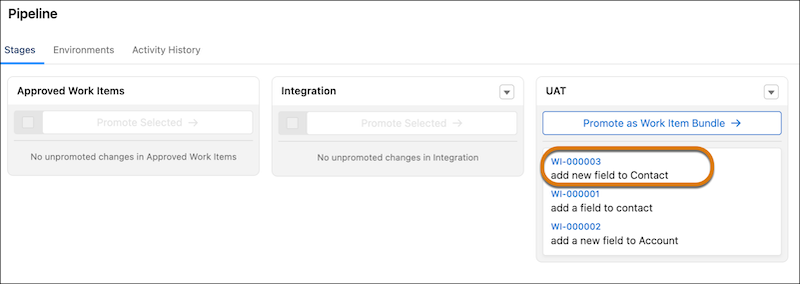

Hurray, the promotion succeeded, and our work item has been promoted to the UAT stage!

DevOps Center showing a successful promotion of WI-000003 to the UAT stage.

Here’s the final state of the objects after a successful promotion.

After a successful promotion, DevOps Center also performs a rebase of the feature branch associated with the work item. This table doesn’t go into detail about rebasing; we plan to provide this information in the future. After a successful promotion, DevOps Center often performs other operations, such as rebasing or deleting feature branches. These details aren’t discussed in this section; stay tuned for more information at a later date.

Note

Custom Object	Relevant Field	Value	Notes
Async Operation Result	Status	Completed
Async Operation Result	Message	Promotion Completed
Deployment Result	Completion Date	The date and time when the deployment completed.
Merge Result	Merge Date	The date and time when the merge was completed.
Work Item	Status	NULL
	Branch	Updated with start and end SHAs of the branch after it has been rebased.
	Rebase Branch	Updated with the start and end SHAs of the feature branch after the initial promotion into the pipeline	This is only created after the initial promotion.
Pipeline Stage	Status	NULL

State When a Promotion Fails

Sadly, promotions occasionally encounter an error and fail. Let’s see what the state of the custom objects look like in this case

Custom Object	Relevant Field	Value
Async Operation Result	Status	ERROR
	Message	Error message from the async processing.
	Error Details	If available, a stack trace or other detailed error information.
Deployment Result	Deployment Id	NULL
Deployment Result	Completion Date	NULL
Merge Result	Merge Date	NULL
	Remote Reference	NULL
	Previous Remote Reference	NULL
Work Item	Status	NULL
Pipeline Stage	Status	NULL

Variation: Multiple Work Items

In the previous unbundled promotion flow, only one work item was promoted. But you can also perform an unbundled promotion of multiple work items at the same time. The resulting flow is similar to the single work item flow, but with these differences:

For each Work Item record, DevOps Center creates a unique Work Item Promote record and a unique Merge Result record.
But all Work Item Promotes records that are being promoted together share a single Deployment Result and Async Operation Result.

Variation: Externally Merged Change Request

In the previous unbundled promotion flow, DevOps Center merged the change request in the source control repository. But a developer can also merge a change request externally, such as through the GitHub UI. The resulting flow is similar to the non-external merge flow, but with a few key differences.

The beginning state of the custom objects, before the promotion, is the same as described in this section. But then the user decides to externally merge the change (pull) request in the source control repository.

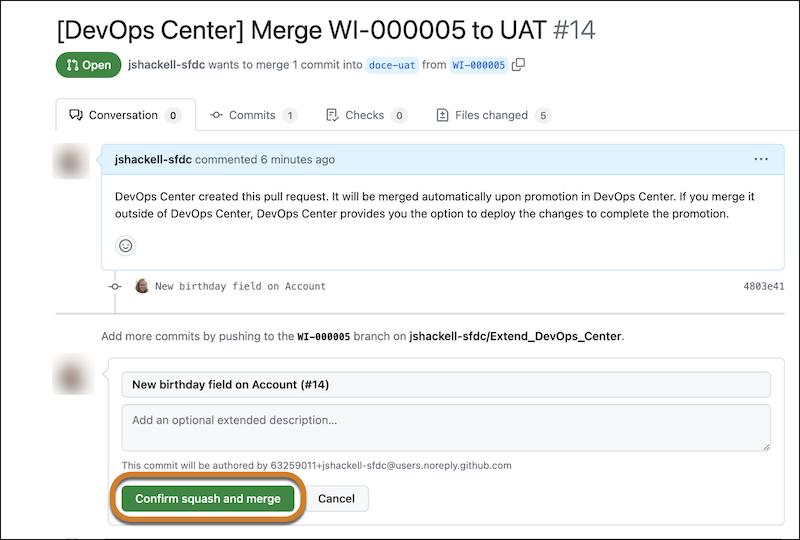

This screenshot shows the user merging changes from the GitHub feature branch for WI-000005 to the doce-uat branch (which is associated with the UAT pipeline stage) using the recommended Squash and Merge option. DevOps Center created this pull request in GitHub when WI-000005 was promoted to the Integration stage.

GitHub UI showing a pull request to merge the WI-000003 feature branch into a stage branch, with Confirm Squash and Merge button circled.

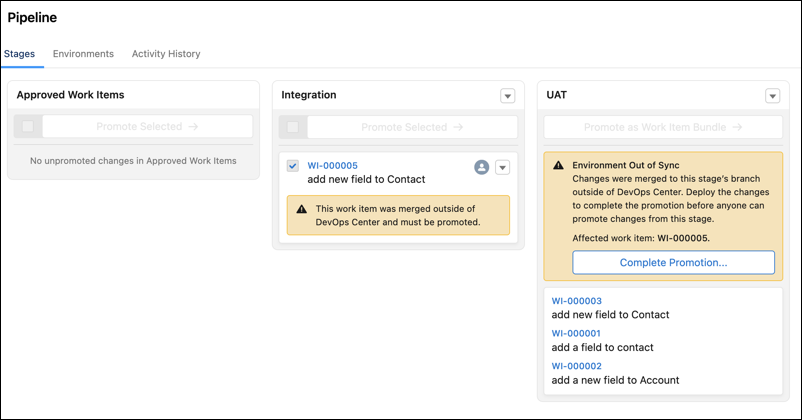

At this point, the changes are in a partially promoted state because they’ve been merged but not yet deployed. DevOps Center alerts the user both in the work item itself and in the pipeline:

DevOps Center alerting the user that their environment is out of sync because a merge was made outside of DevOps Center.

This table shows the state of the object model after the external merge but before the user clicks Complete Promotion in DevOps Center. Both records are new.

Custom Object	Relevant Field	Value
Work Item Promote This new record represents the current undeployed promotion from the Integration stage to UAT.	Work Item	WI-000005
	Pipeline Stage	UAT
Merge Result	Source Branch	The feature branch associated with the work item.
	Target Branch	The branch associated with the UAT stage.
	Remote Reference	Merge ID (called a SHA in GitHub) of the merge commit from the feature branch to the target stage’s branch.
	Previous Remote Reference	ID of the commit in the target stage’s branch before the merge happened.
	Remote Reference Date	The date the external merge occurred.

After the user clicks Complete Promotion, DevOps Center continues processing as described in State During a Promotion, except that some records exist, such as Work Item Promote and Merge Result. The rest of the promotion is the same.
