Territory Management Data Model

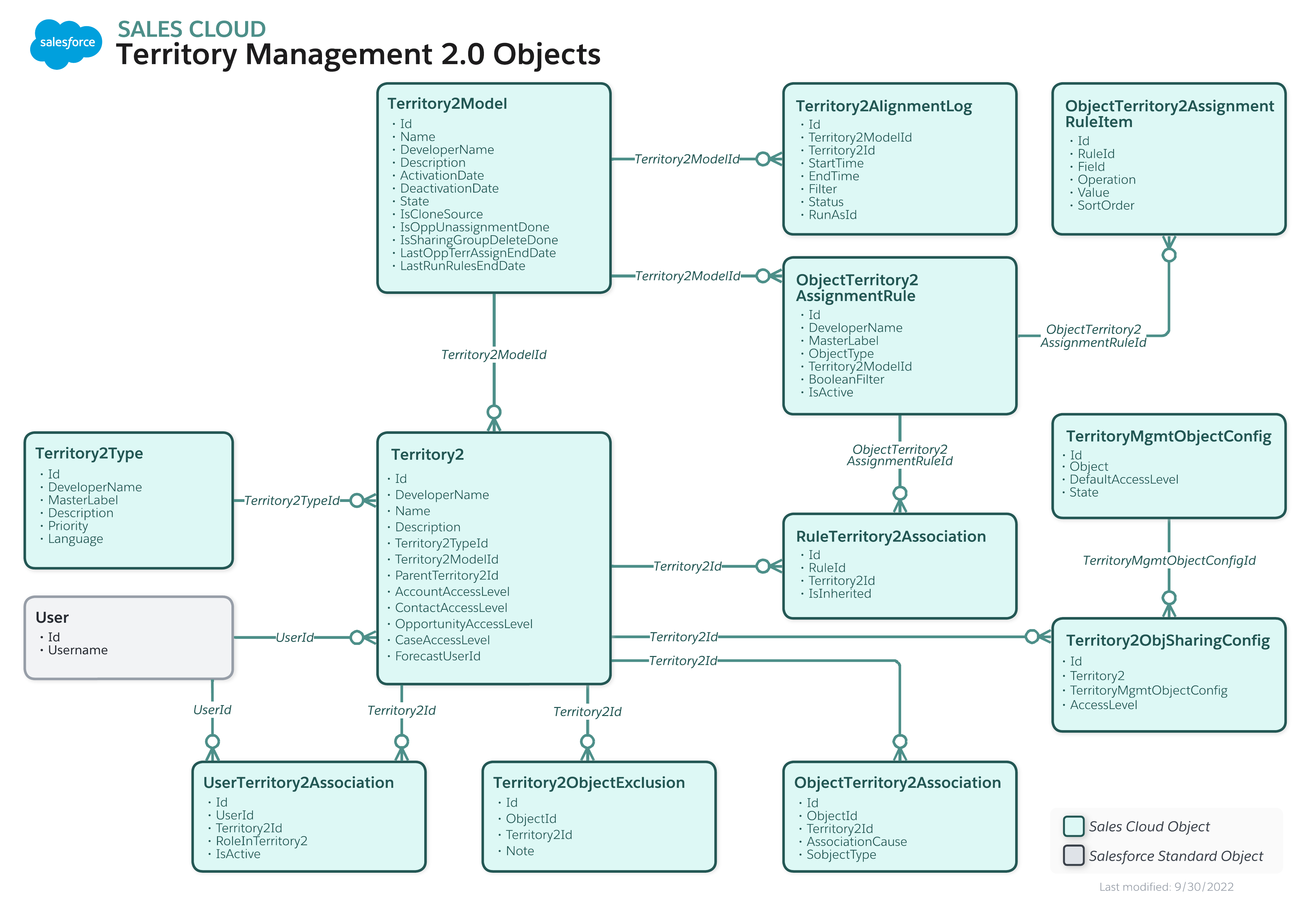

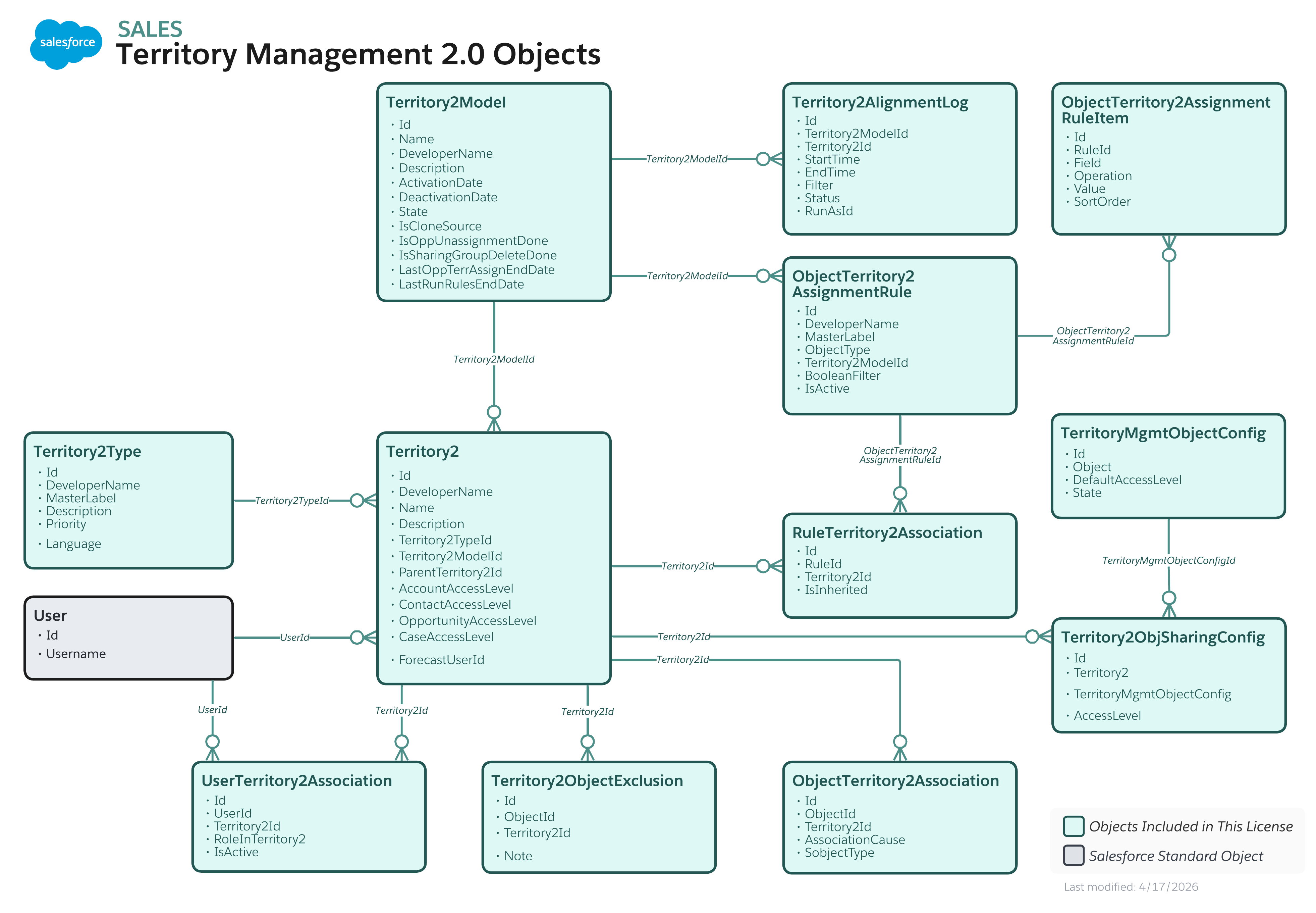

Data model diagram for Territory Management

To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."

Customizable Lucidchart template

Diagram Scope

Captures Sales Cloud objects and relationships used in planning and managing territories in Salesforce

Entities (objects) Included

ObjectTerritory2AssignmentRule, ObjectTerritory2AssignmentRuleItem, ObjectTerritory2Association, RuleTerritory2Association, Territory2, Territory2AlignmentLog, Territory2Model, Territory2ObjectExclusion, Territory2ObjSharingConfig, Territory2Type, TerritoryMgmtObjectConfig, User, UserTerritory2Association

More Info

How Do I Read These Diagrams?

See Salesforce Data Model Notation.
