Use HXL Widgets as Agentforce Action Output

Present structured output from an Agentforce action as a Headless Experience Layer (HXL) widget in the conversation.

Agentforce actions can return structured output from Flow, Apex, a Prompt Template, or another supported action type. The action implementation can also call an API, retrieve information from Data Cloud, or run automation before returning structured output.

With HXL, you can present that output as an HXL widget rather than relying on the default output presentation. A custom Lightning type (CLT) represents the structured output and connects it to the HXL widget. The renderer associated with the CLT maps properties from the structured output to attributes accepted by the widget.

Let’s use the Apex-backed Get Hotel Info action to show how the same action output appears first in the default output presentation and then as the Hotel Card widget. The same process applies to other supported Agentforce actions that return structured output.

CLTs support Lightning Web Components (LWC) UI overrides to customize how output is displayed. With HXL widget support, a CLT can also use an HXL widget as its renderer. The following table shows the differences between these two configurations.

For the complete widget-reference workflow, including the CLT folder structure, widget reference, and attribute mapping, see Connect Your Widget to a Custom Lightning Type.

Before you configure output rendering, complete the following prerequisites. The HXL widget and CLT must be available in the target org for HXL to render the action output.

1. Enable Agentforce and create an agent.

   You need an Agentforce agent in which you can invoke the action and view its response. To enable Agentforce and create an Agentforce Employee Agent, see Get Started with Agentforce.

2. Create an Agentforce action that returns structured output.

   The action must return the data that you want to display. Use the documentation for the Reference Action Type that corresponds to the underlying asset.

   • For a Flow-backed action, see Extend Agents with Flow Actions.
   • For an Apex-backed action, see Extend Agents with Apex Actions.
   • For a Prompt Template-backed action, see Extend Agents with Prompt Template Actions.

3. Create a subagent and make the action available to it.

   The subagent defines the job that it performs and contains the reasoning instructions that determine when Agentforce invokes the action.

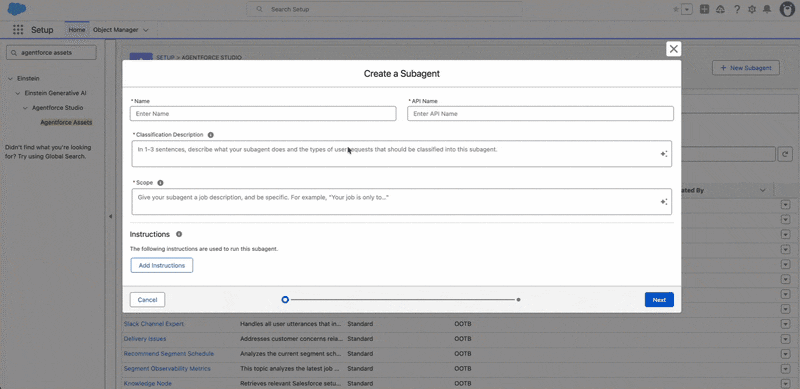

   • To create a subagent, see Create a Custom Subagent.
   • To add the action to the subagent, see Add an Action to a Subagent from the Asset Library.
   • To add a reusable subagent to the agent, see Add a Subagent to Your Agent from the Asset Library.

4. Create an HXL widget.

   The widget defines how the structured output is presented. Its UiWidgetBundle contains the widget configuration, attribute schema, and visual composition. For widget concepts, metadata structure, file types, and authoring guidance, see Build Rich UI Experiences with HXL Widgets.

   Optionally, use Salesforce formulas in the widget composition to calculate values and apply conditional logic. For formula syntax and examples, see Use Salesforce Formulas in Widgets.

5. Create or reuse a CLT and connect it to the widget.

   The CLT defines the schema for the structured action output. Its renderer references the HXL widget and maps action-output properties to attributes in the widget schema. For the configuration pattern, see Connect Your Widget to a CLT in Build Rich UI Experiences with HXL Widgets.

   For more information about CLT and the LightningTypeBundle metadata type, see Core Concepts of CLTs.

6. Deploy the widget and CLT.

   Both components must be available in the target org before you can select the CLT in Output Rendering. For deployment guidance, see the following in Build Rich UI Experiences with HXL Widgets. Both components must be available in the target org before you can select the CLT when you Configure Output Rendering. For deployment guidance, see the following:

   • Use Salesforce CLI or Metadata API to Deploy UiWidgetBundles
   • Package Deployment Management
   • Deployment Order

Before you continue, confirm that:

• The action is added to the subagent.
• The subagent is added to the agent.
• The subagent’s description and reasoning instructions identify when to invoke the action.
• The action returns the structured output that you want to display.
• The CLT schema represents the action output.

Select an Agentforce action that returns the structured data that you want to present in the widget. The action output provides the data that the CLT maps to the widget.

When you create an Agentforce action, select the Reference Action Type that corresponds to the underlying asset.

Depending on your org, additional Reference Action Type options can be available. These options can include API, Predictive Model, and Retriever. Select the type that corresponds to the asset used by your action.

The action implementation can also call an API, retrieve information from Data Cloud, run automation, or use another supported data source before returning structured output.

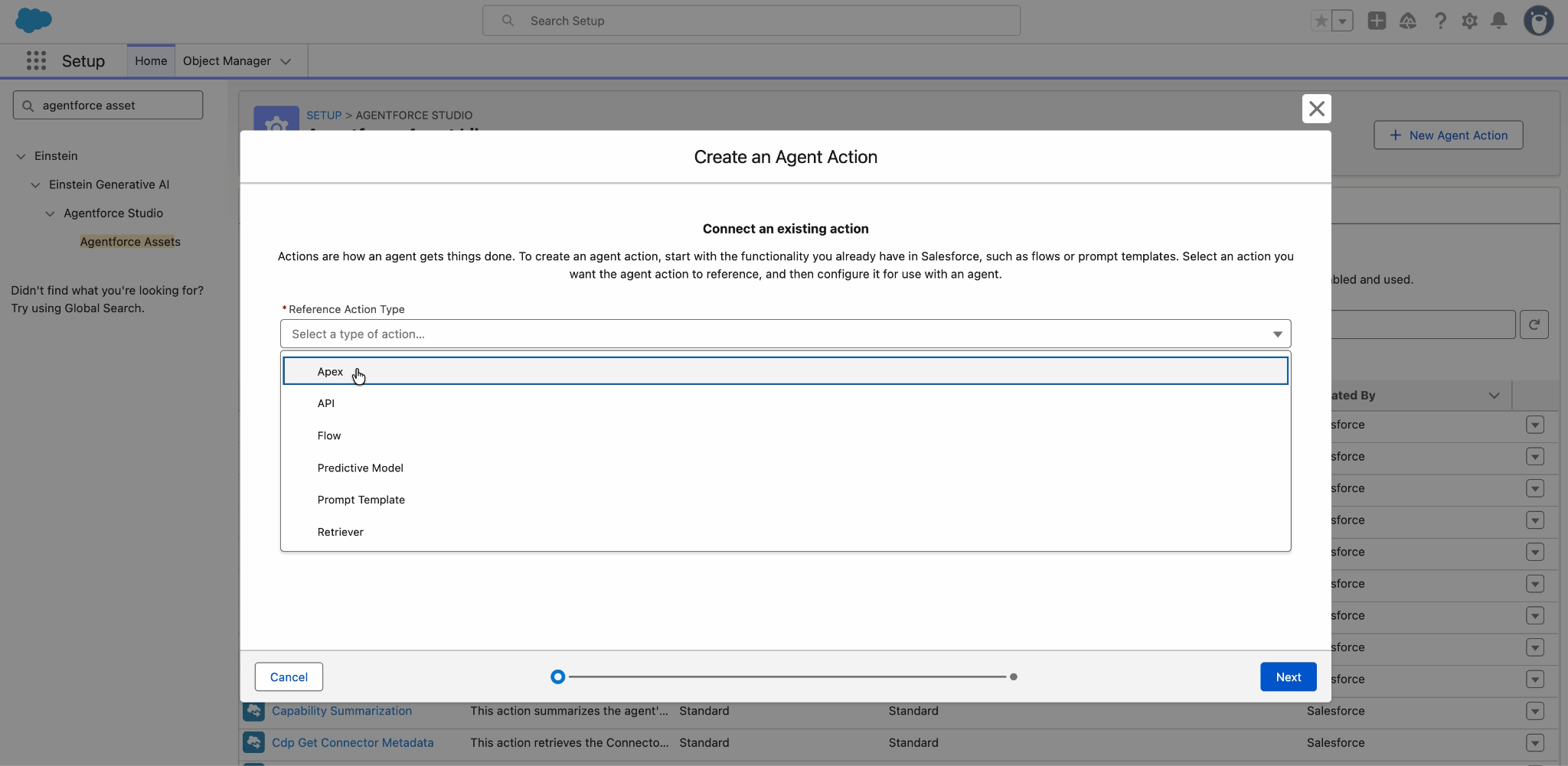

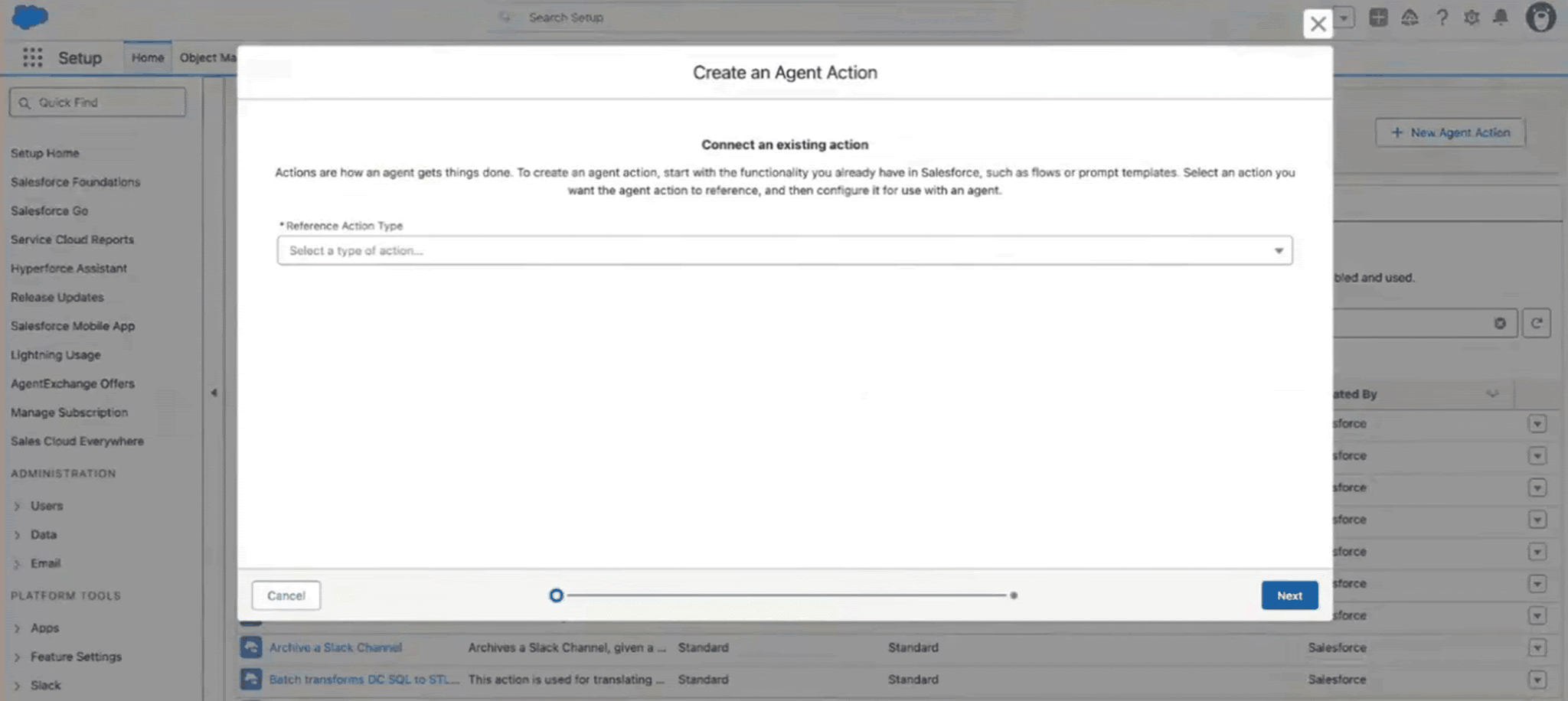

Here’s an image that shows the Reference Action Type options.

For the running example, this page uses an Apex-backed action named Get Hotel Info. The action returns structured hotel information, but the HXL output-rendering process isn’t specific to Apex or the Hotel Card example.

To create an Apex-backed action, see Create the Apex Action.

Use these values for the running scenario.

The action returns structured hotel information through an output named Hotel Info Response.

For the running example, HotelInfoResponse is the CLT used to present the action output through the Hotel Card widget.

Before you continue, confirm that the action:

• Is available to the agent.
• Can be invoked from the conversation preview.
• Returns the values that the widget displays.
• Returns an output structure represented by the deployed CLT.

Apply the deployed CLT to the action output. This association tells Agentforce to use the renderer associated with the CLT when it presents the structured output. The renderer maps properties from the action output to attributes accepted by the HXL widget.

1. From Setup, in the Quick Find box, enter Agentforce Assets, and then select Agentforce Assets.
2. Select the Actions tab.
3. Open Get Hotel Info.
4. Locate the output named Hotel Info Response.
5. Edit the output.
6. Select Show in conversation.

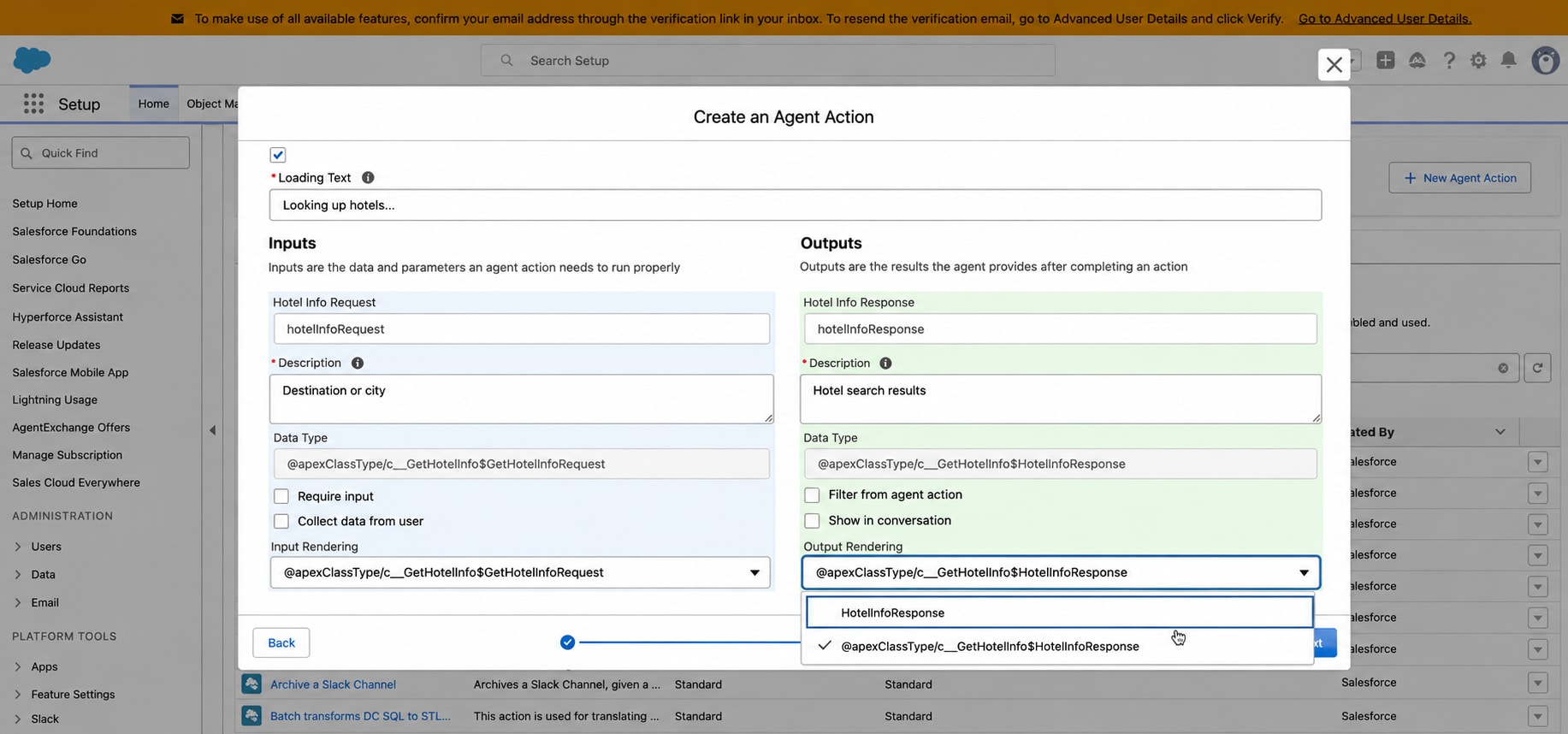

7. In Output Rendering, select HotelInfoResponse.
8. Save the action.
9. Reload the agent page.

For the running scenario, the output configuration uses these values.

After you save the action, Agentforce uses the renderer associated with the HotelInfoResponse CLT to display the action’s structured output in the Hotel Card widget.

Use the configured subagent to route a matching user request to Get Hotel Info.

The subagent’s description defines the job it handles. Its reasoning instructions tell Agentforce how and when to use the actions added to the subagent. This section assumes that the subagent was created, added to the agent, and associated with Get Hotel Info as described in Before You Begin.

For the running scenario, use this configuration.

Configure the subagent’s description and reasoning instructions so that hotel-related requests are routed to Hotel Search and the subagent can invoke Get Hotel Info.

When the request contains all the information required by the action, the reasoning instructions can direct the subagent to invoke the action. If the action requires more information, configure the instructions so that the subagent obtains the required input before invoking it.

Before you continue, confirm that:

• Hotel Search is added to the agent.
• Get Hotel Info appears in the subagent’s actions available for reasoning.
• The subagent’s description distinguishes its job from the jobs of other subagents.
• The subagent’s reasoning instructions identify when to invoke Get Hotel Info.
• A hotel-related request is routed to Hotel Search.

Here’s an image that shows Hotel Search added to the agent.

Run the action before you apply custom output rendering. This verifies that Agentforce routes the request to the expected subagent, the subagent invokes the action, and the action returns the expected response.

1. Open the agent in Agentforce Builder.

2. Open the conversation preview.

3. Enter a request that invokes the action.

   For the running example: Get me details of {hotel name} in San Francisco.

   Replace {hotel name} with a hotel name supported by the target org.

4. Confirm that Agentforce selects Hotel Search.

5. Confirm that the subagent invokes Get Hotel Info.

6. Review the response in the conversation.

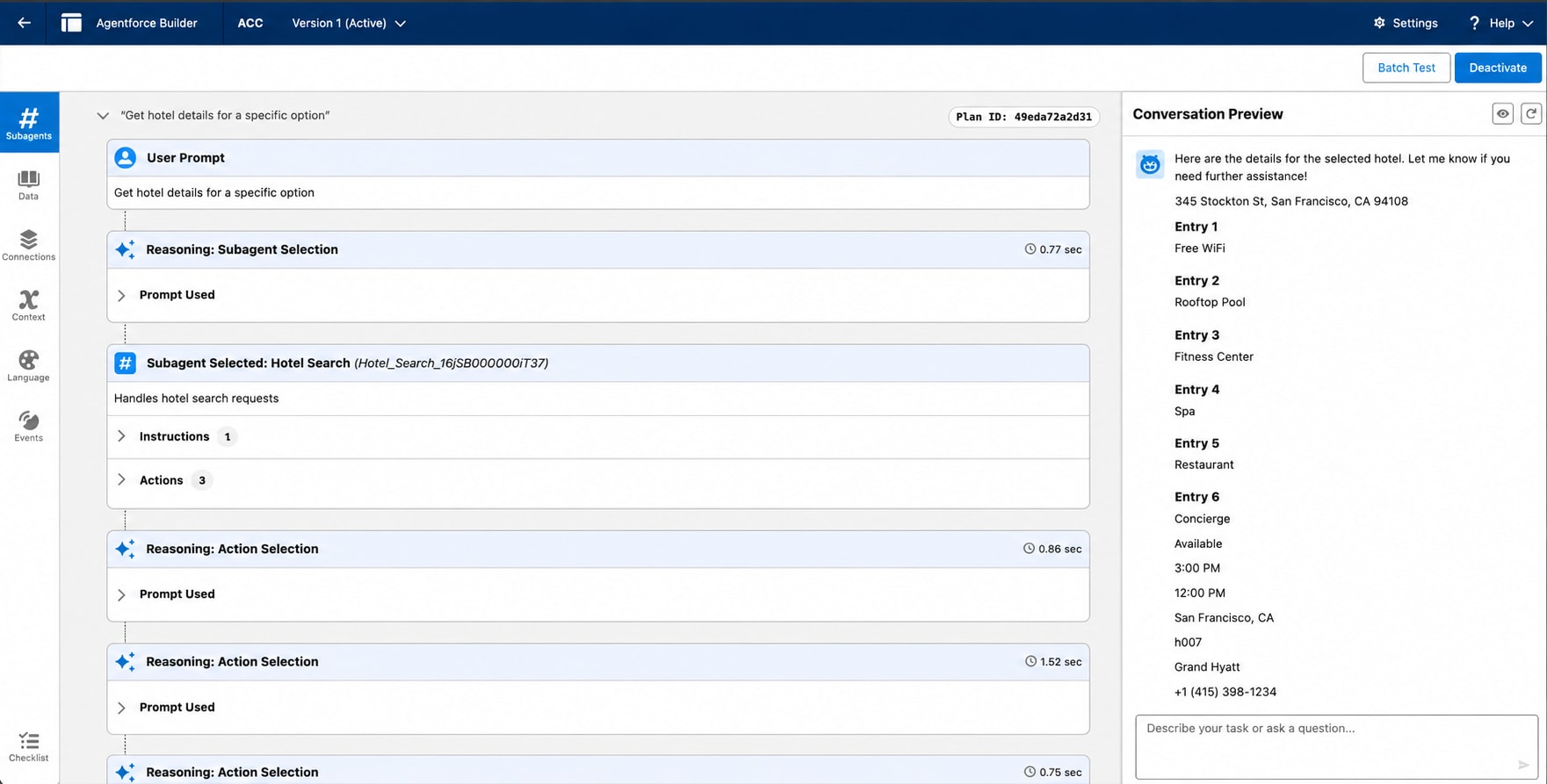

Before you apply the CLT, Agentforce presents the action result by using its default output presentation.

The structured output contains hotel information such as:

1Hotel Name
2Hotel Image
3Nightly rate
4Summary

Use the same request and action response when you verify the rendered widget.

Run the same request again to verify the configuration.

1. Open the agent in Agentforce Builder.
2. Open the conversation preview.
3. Enter the same request that you used to view the default output: Get me details of {hotel name} in San Francisco.
4. Confirm that Agentforce selects Hotel Search.
5. Confirm that the subagent invokes Get Hotel Info.
6. Confirm that the action returns the expected structured hotel output.

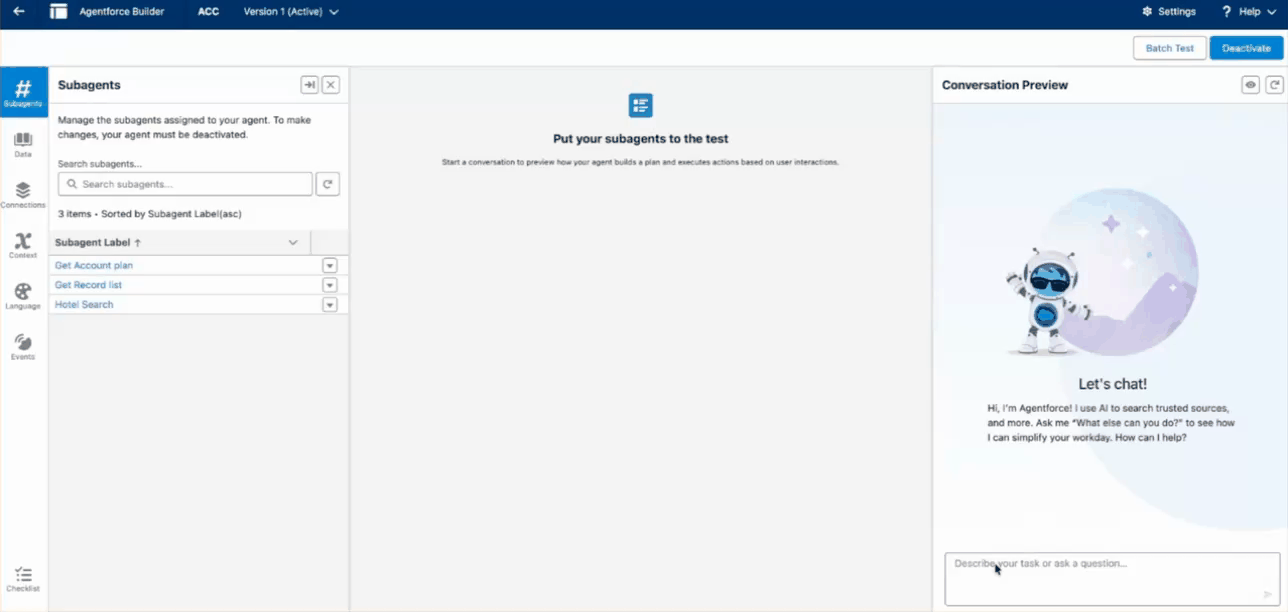

7. Confirm that Agentforce presents the action output as the Hotel Card widget.
8. Verify that the hotel information displayed by the widget corresponds to the action output.

The action continues to return the same structured output. The CLT and its renderer determine how that output is mapped to the widget and presented in the conversation.

In the running example, the Hotel Card widget displays the hotel name, hotel image, nightly rate, and summary.

The Get Hotel Info action output is now presented through the configured HXL widget.

HXL widgets support button actions that send follow-up requests to the agent. In the running example, the Hotel Card includes Confirm Reservation and Cancel Reservation buttons. Each button uses action/sendMessage to send a follow-up request to the agent.

Before you test the buttons, make Book Hotel and Cancel Reservation available to the Hotel Search subagent. Configure the subagent’s reasoning instructions to handle booking and cancellation requests.

This example configures the Confirm Reservation button.

1{
2  "definition": "tile/button",
3  "attributes": {
4    "label": "Confirm Reservation",
5    "variant": "primary",
6    "actions": {
7      "click": [
8        {
9          "definition": "action/sendMessage",
10          "attributes": {
11            "content": "Confirm this reservation."
12          }
13        }
14      ]
15    }
16  }
17}

The Cancel Reservation button uses the same actions.click pattern with a cancellation request as its message content. When a user selects either button, action/sendMessage sends the configured message to the agent. The Hotel Search subagent’s reasoning instructions determine whether Agentforce invokes Book Hotel or Cancel Reservation.

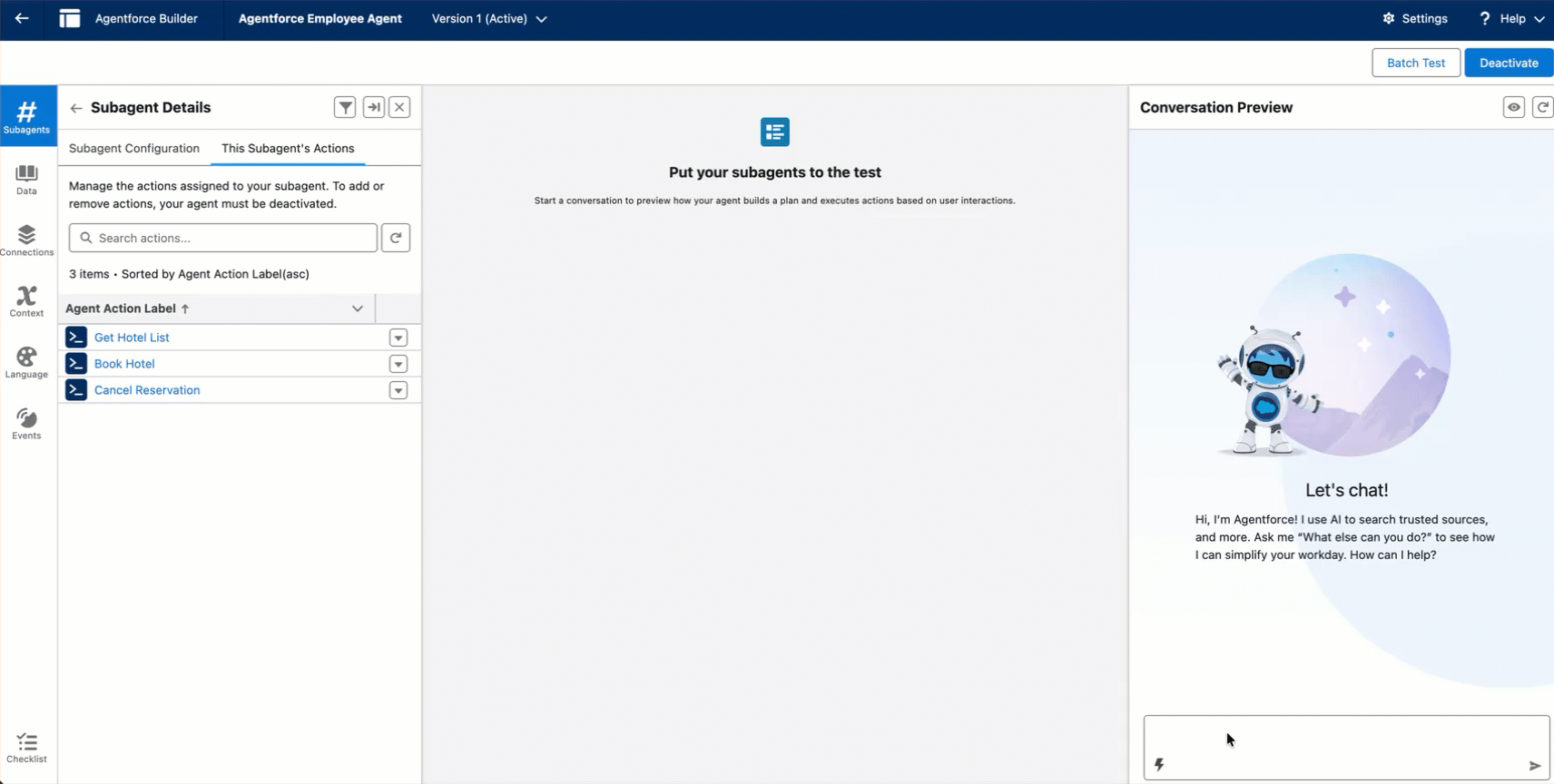

The animation shows the reservation buttons sending follow-up requests in Conversation Preview.

For complete button properties, variants, examples, and surface support, see Button. For predefined action definitions and their attributes, see lightning__actionType.
