EDA + K12 (Managed Package) Data Model

Entities and relationships of the community-driven EDA, supporting the K-12 student journey.

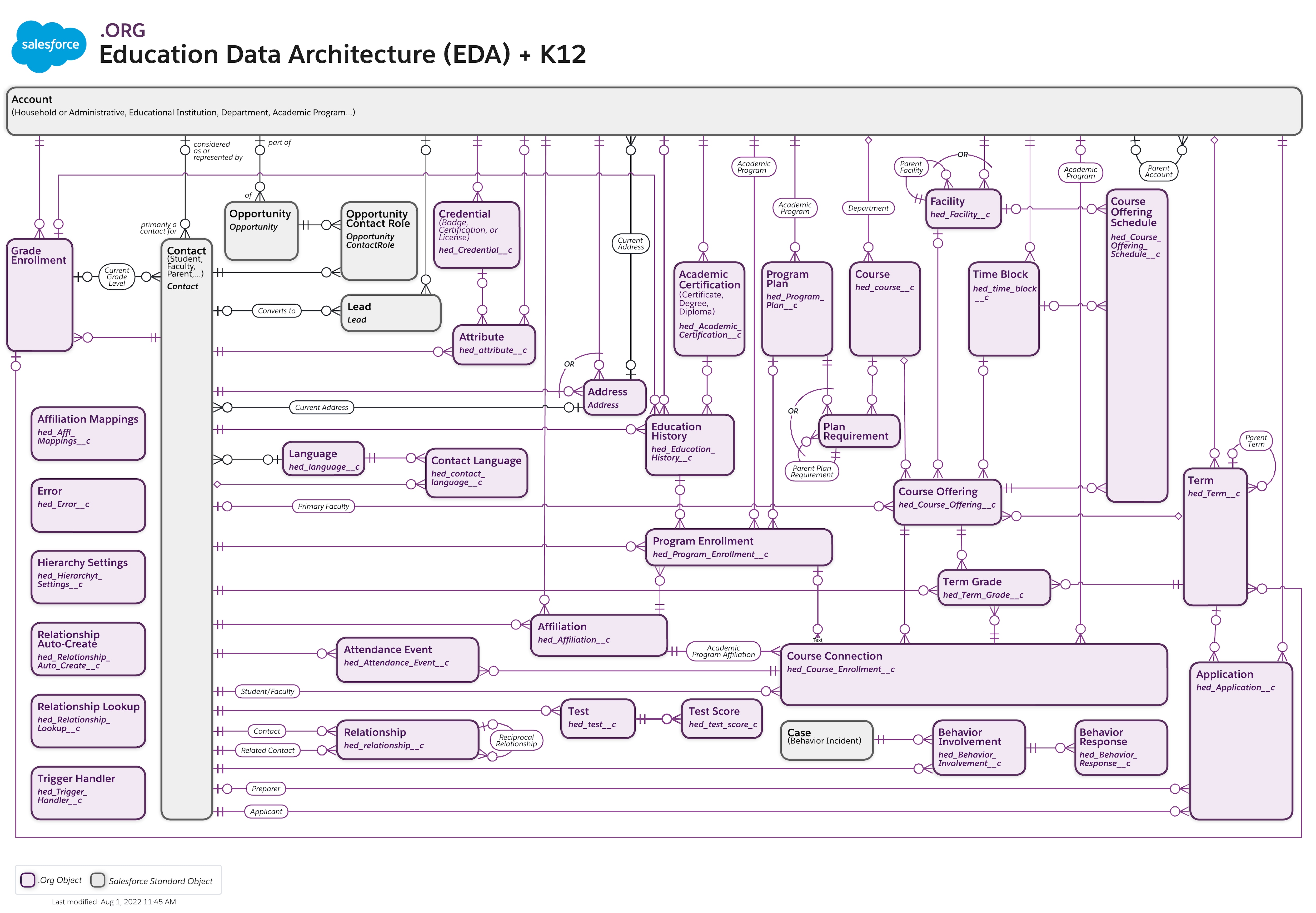

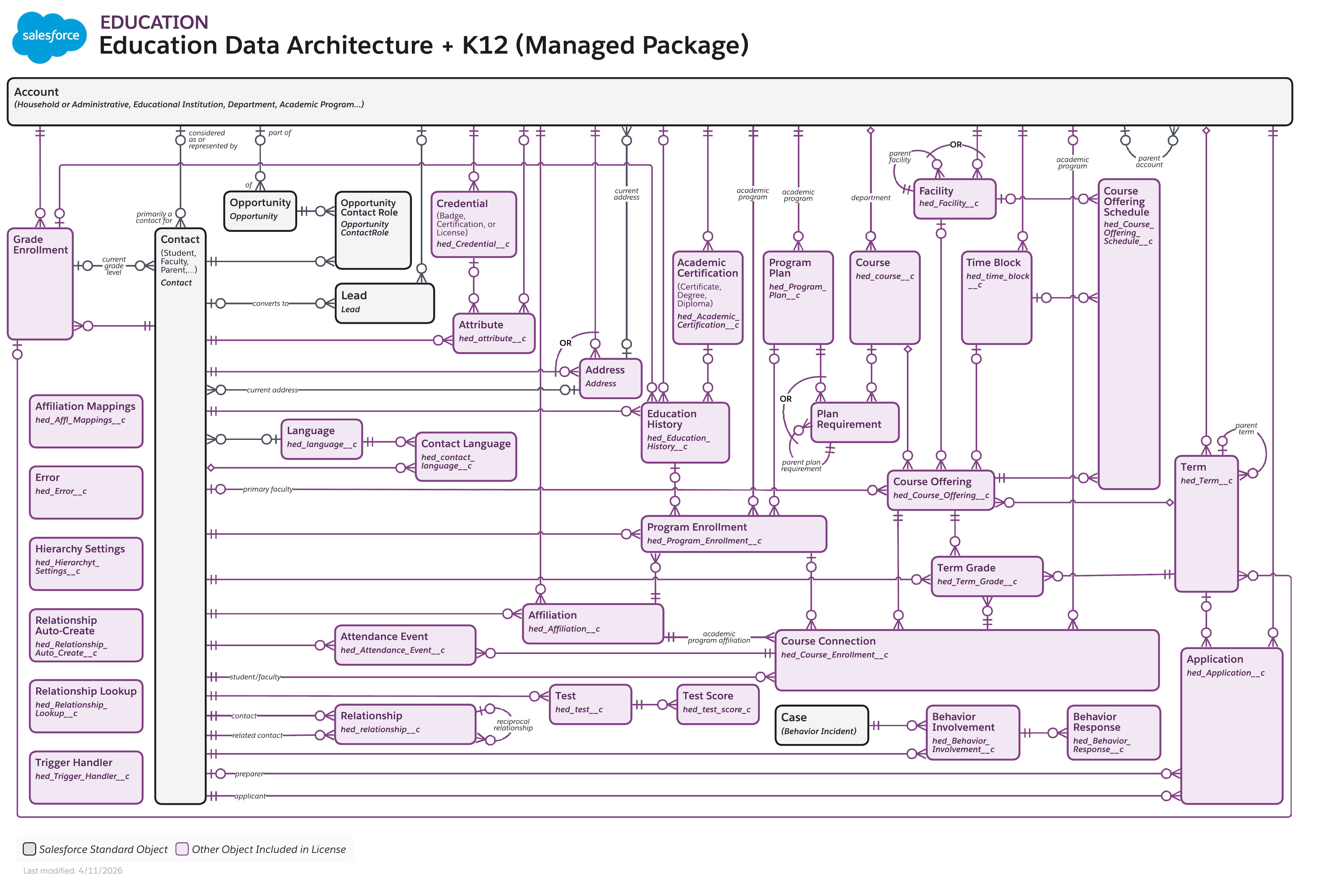

Data model diagram for EDA + K12 (Managed Package)

To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select “Open Image in New Tab.”

Customizable Lucidchart Template

Entities/Objects Included

Academic Certification, Account, Address, Affiliation, Affiliation Mappings, Application, Attendance Event, Attribute, Behavior Involvement, Behavior Response, Case, Contact, Contact Language, Course, Course Connection, Course Offering, Course Offering Schedule, Credential, Education History, Error, Facility, Grade Enrollment, Hierarchy Settings, Language, Lead, Opportunity, Opportunity Contact Role, Plan Requirement, Program Enrollment, Program Plan, Relationship, Relationship Auto-Create, Relationship Lookup, Term, Term Grade, Test, Test Score, Time Block, Trigger Handler

More Info

Model Your Data in Education

How Do I Read These Diagrams?

See Salesforce Data Model Notation.
