Retail Execution Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template

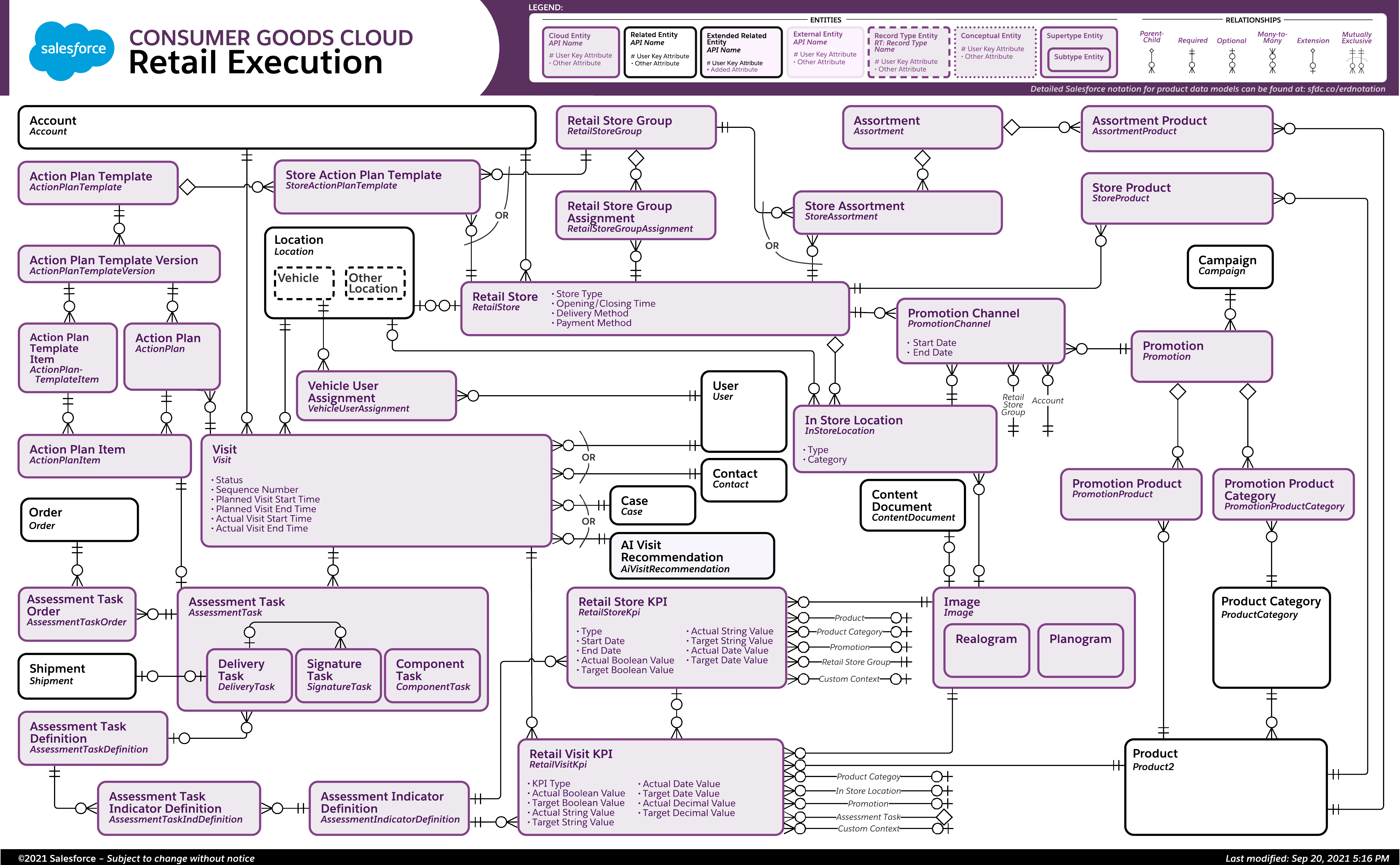

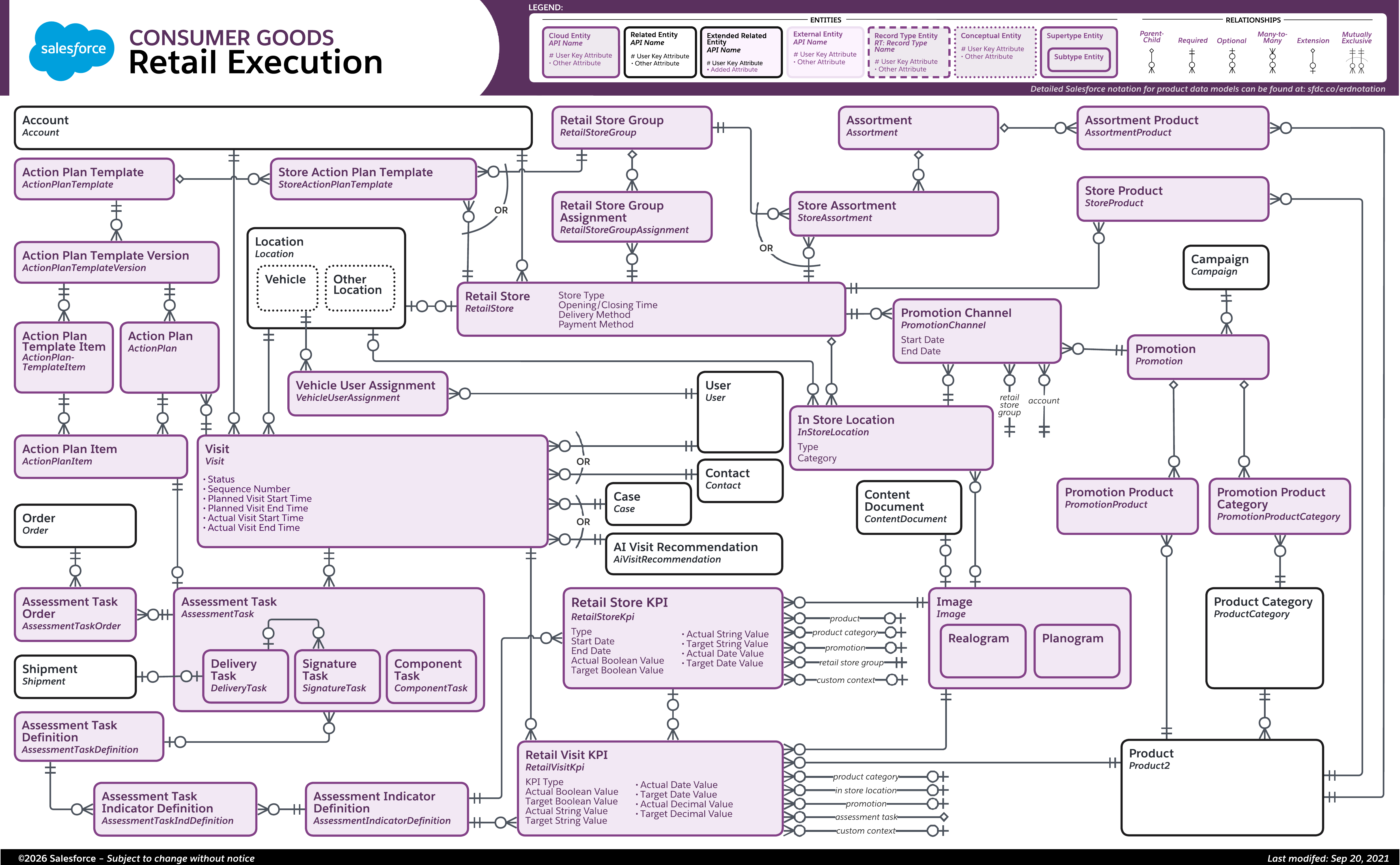

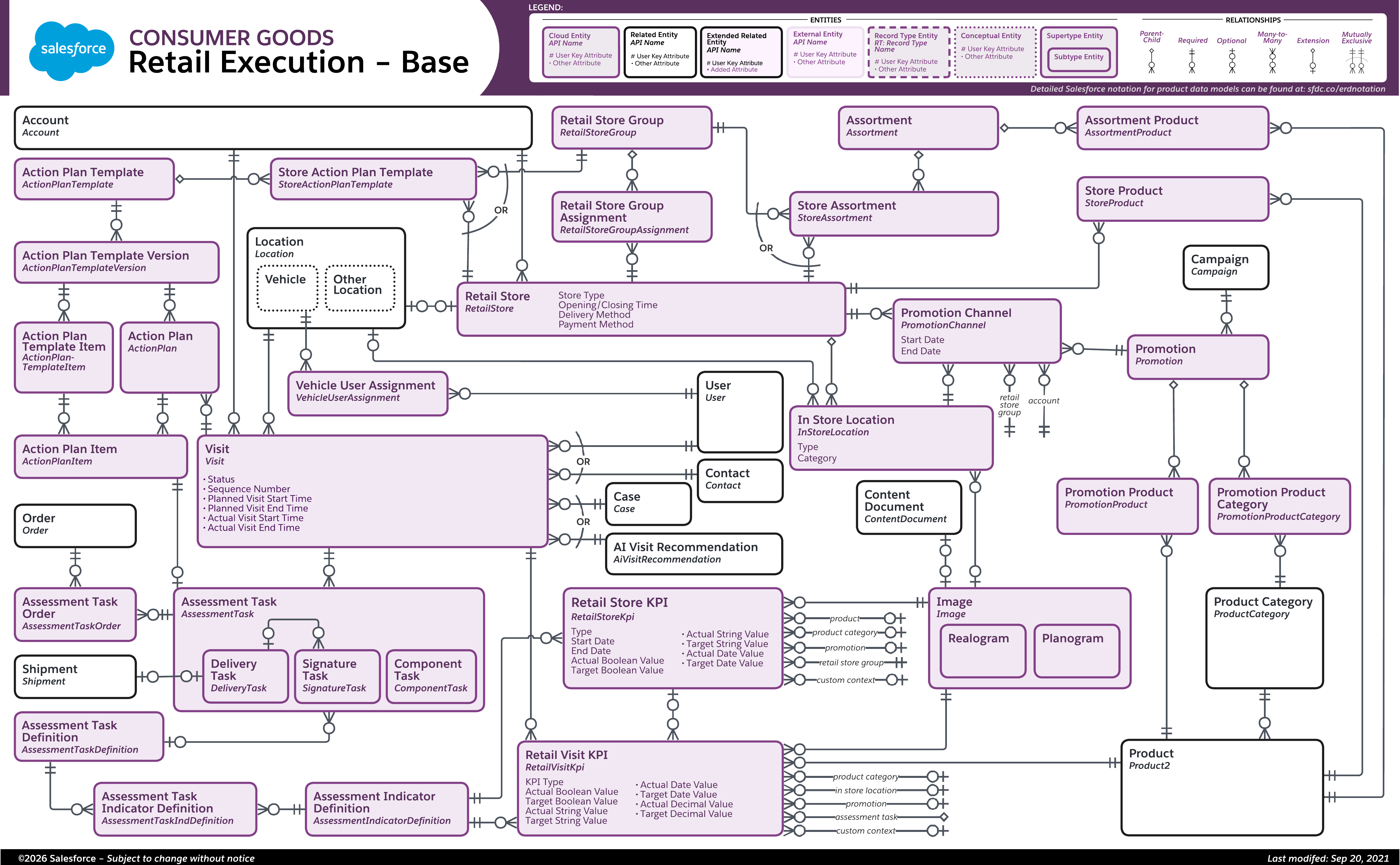

Entities and relationships supporting activities involved in the execution of retail store operations
Account, Action Plan, Action Plan Item, Action Plan Template, Action Plan Template Item, Action Plan Template Version, AI Visit Recommendation, Assessment Task Definition, Assessment Indicator Definition, Assessment Task, Assessment Task Indicator Definition, Assessment Task Order, Assortment, Assortment Product, Campaign, Case, Component Task, Contact, Content Document, Delivery Task, Image, In Store Location, Location, Planogram, Product, Product Category, Promotion, Promotion Channel, Promotion Product, Promotion Product Category, Realogram, Retail Store, Retail Store Group, Retail Store Group Assignment, Retail Store KPI, Retail Visit KPI, Shipment, Shipment, Signature Task, Store Action Plan Template, Store Assortment, Store Product, User, Vehicle User Assignment, Visit
