Route, Tour, and Warehouse Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template (Note: May not reflect the most current version of the data model.)

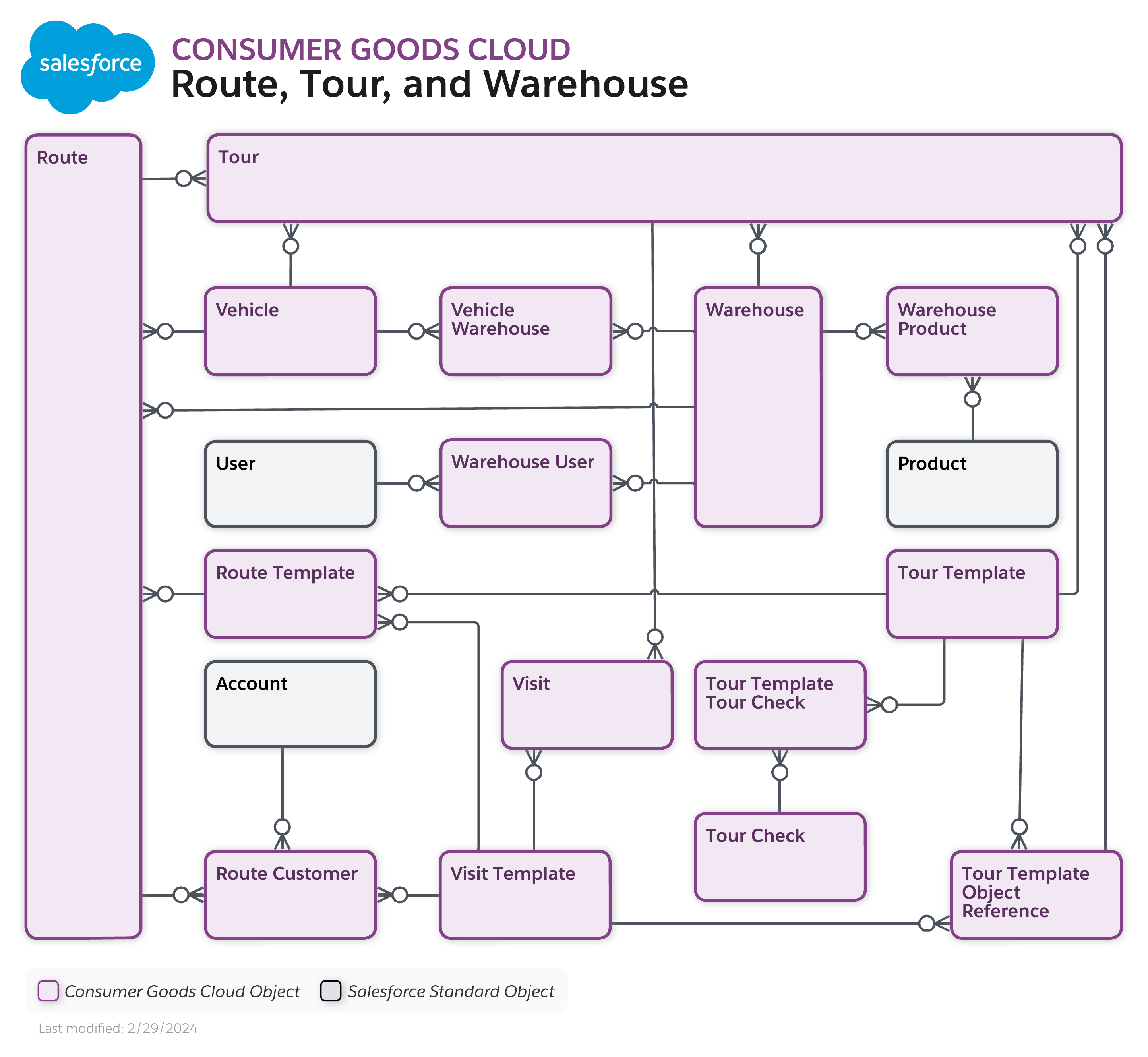

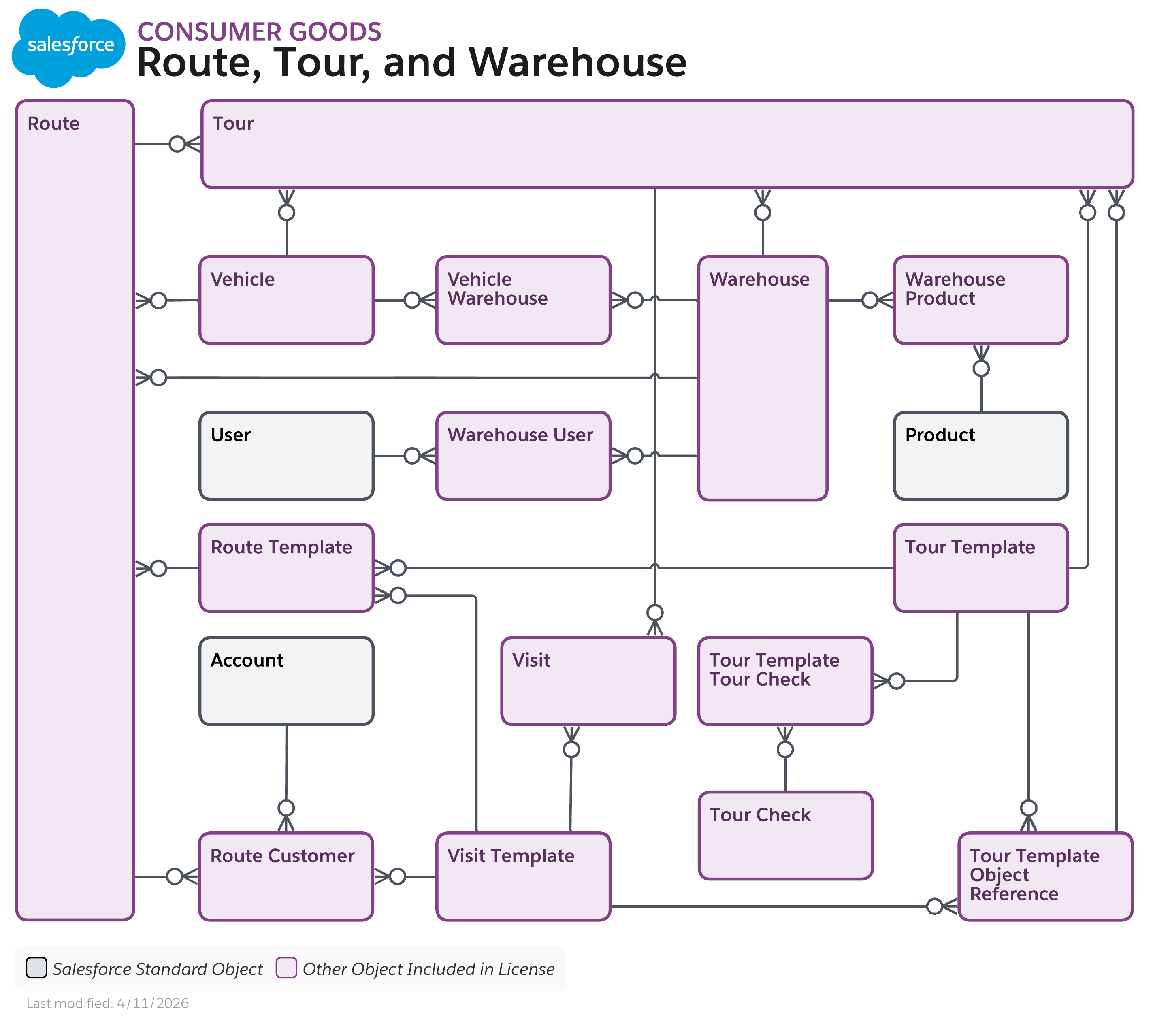

Entity and relationships for tour planning and managing routes for sales visits and deliveries involving the warehouse.
Account, Product, Route, Route Customer, Route Template, Tour, Tour Check, Tour Template, Tour Template Object Reference, Tour Template Tour Check, User, Vehicle, Vehicle Warehouse, Visit, Visit Template, Warehouse, Warehouse Product, Warehouse User
