Salesforce Files Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template (Note: May not reflect the most current version of the data model.)

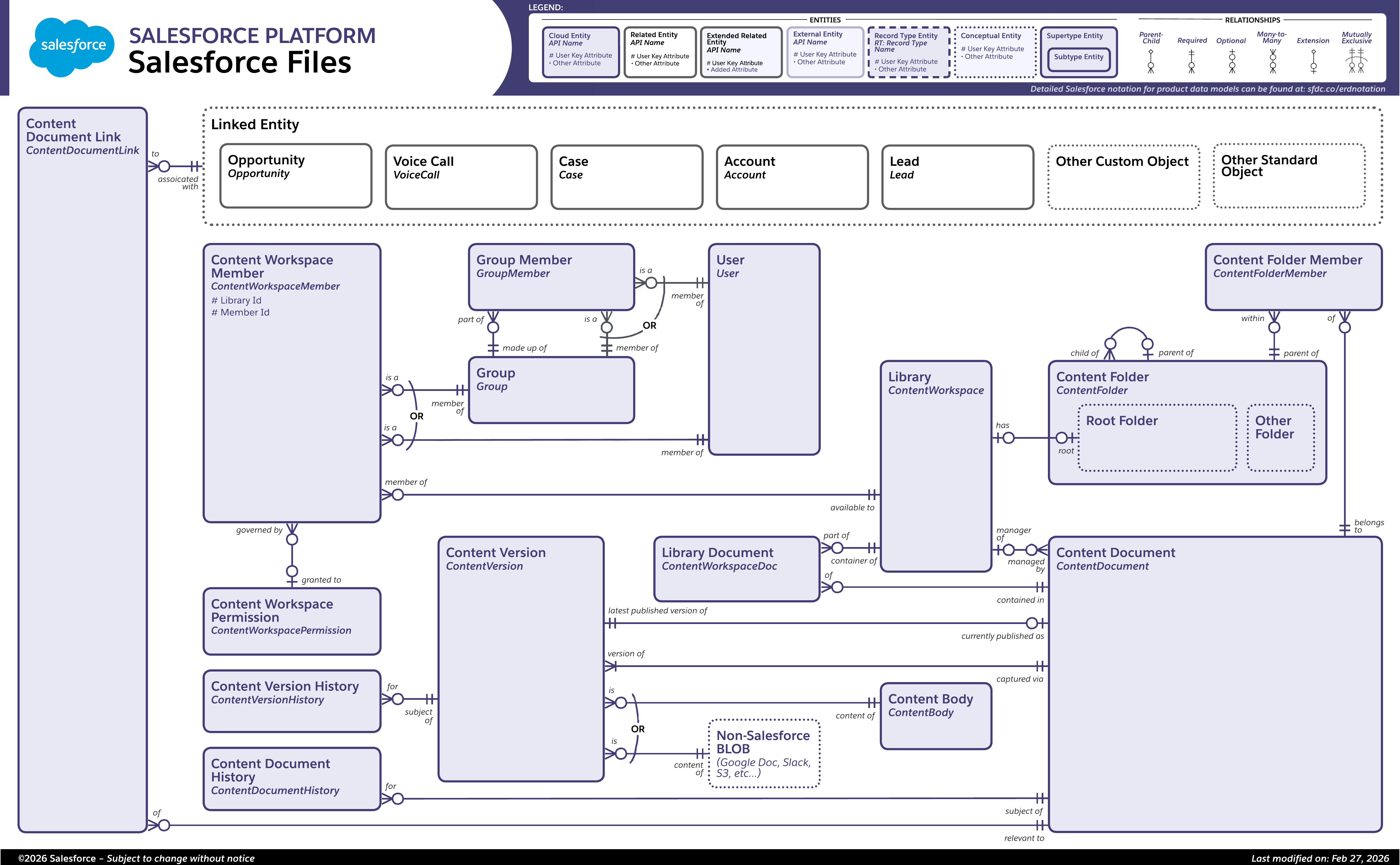

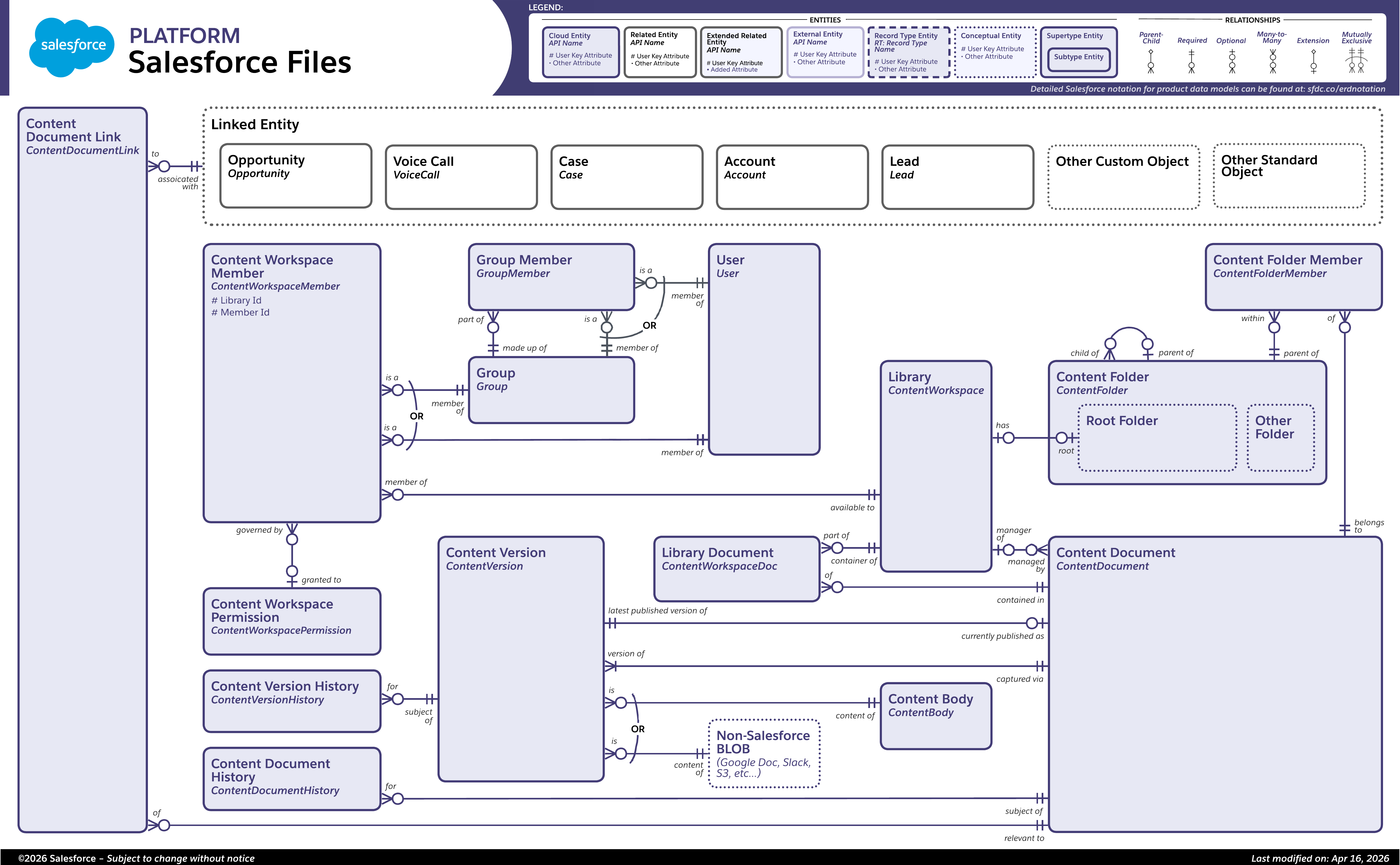

Entities and relationships depicting how Salesforce Files manages files, including content documents, versions, libraries, folders, and their associations to Salesforce records.
Account, Case, Content Body, Content Document, Content Document History, Content Document Link, Content Folder, Content Folder Member, Content Version, Content Version History, Content Workspace Member, Content Workspace Permission, Group, Group Member, Lead, Library, Library Document, Non-Salesforce BLOB, Opportunity, Other Custom Object, Other Folder, Other Standard Object, Root Folder, User, Voice Call
