Customer Model Data Model

Entities and relationships for the persons, accounts, services, and locations associated with energy and utilities customers.

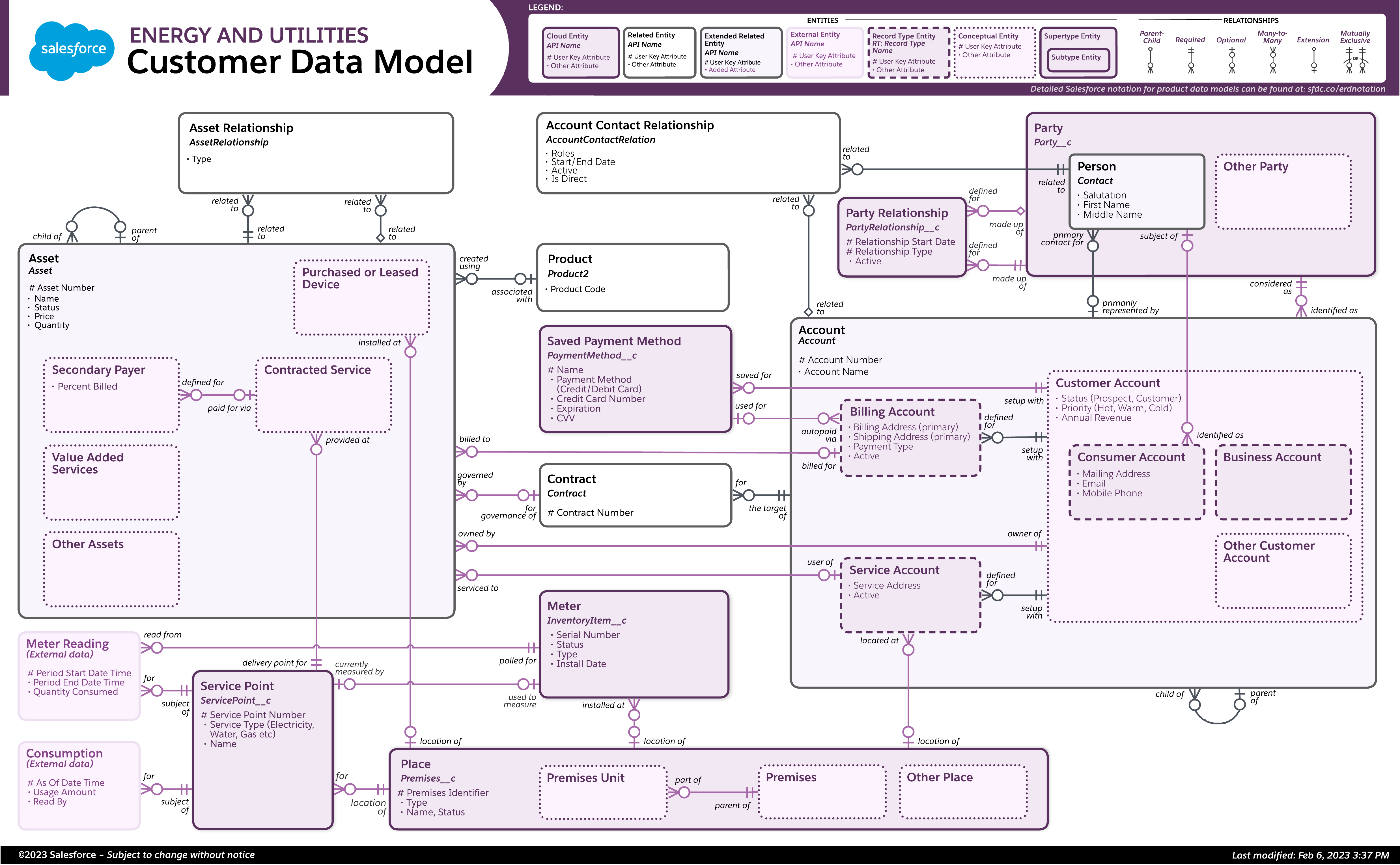

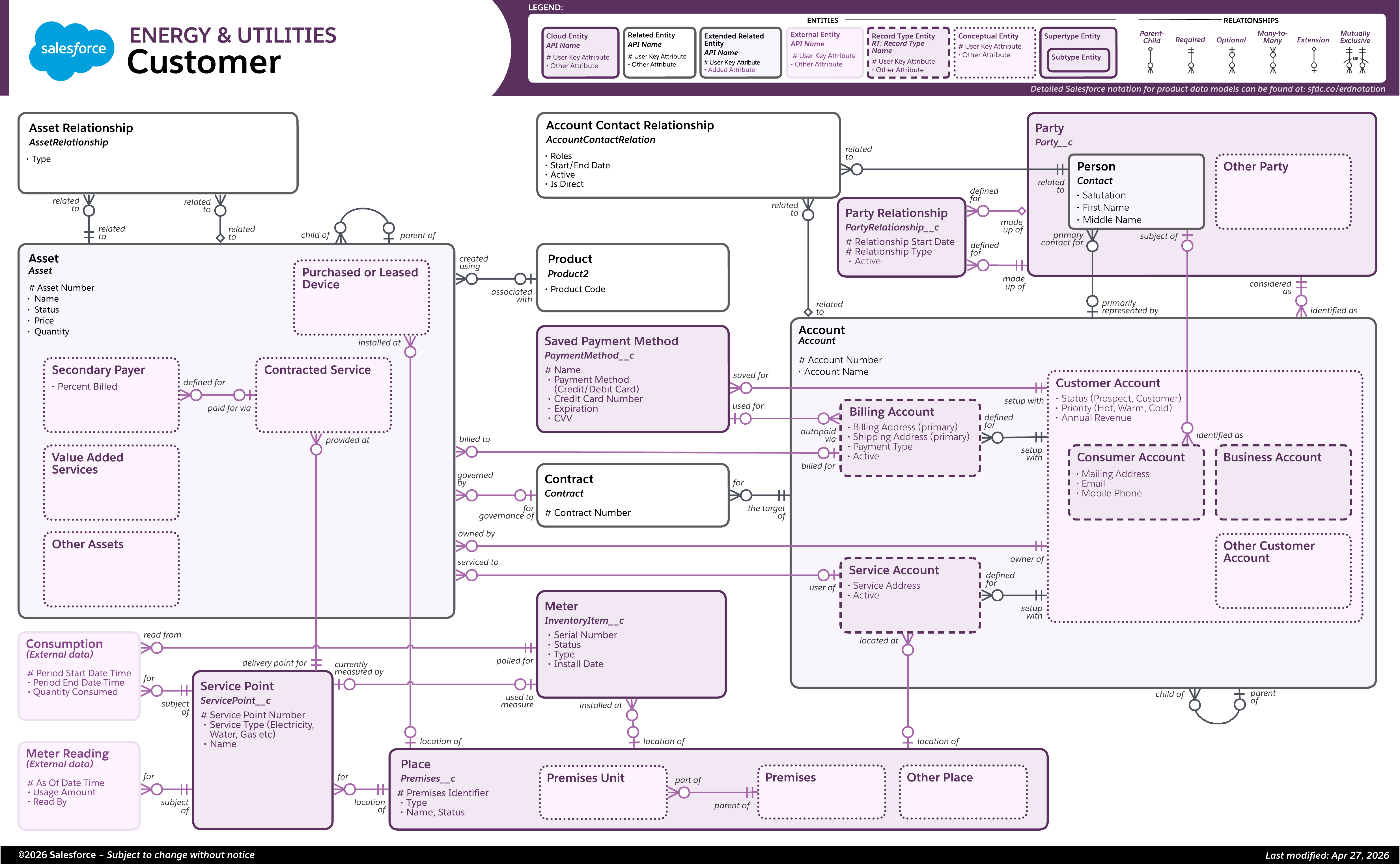

Data model diagram for Customer Model

To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select “Open Image in New Tab.”

Customizable Lucidchart Template

Entities/Objects Included

Account, Account Contact Relationship, Asset, Asset Relationship, Billing Account, Business Account, Consumer Account, Consumption, Contract, Meter, Meter Reading, Party, Party Relationship, Person, Place, Product, Saved Payment Method, Service Account, Service Point

More Info

Energy & Utilities
Energy and Utilities Standard Objects | Energy and Utilities Developer Guide | Salesforce Developers

How Do I Read These Diagrams?

See Salesforce Data Model Notation.
