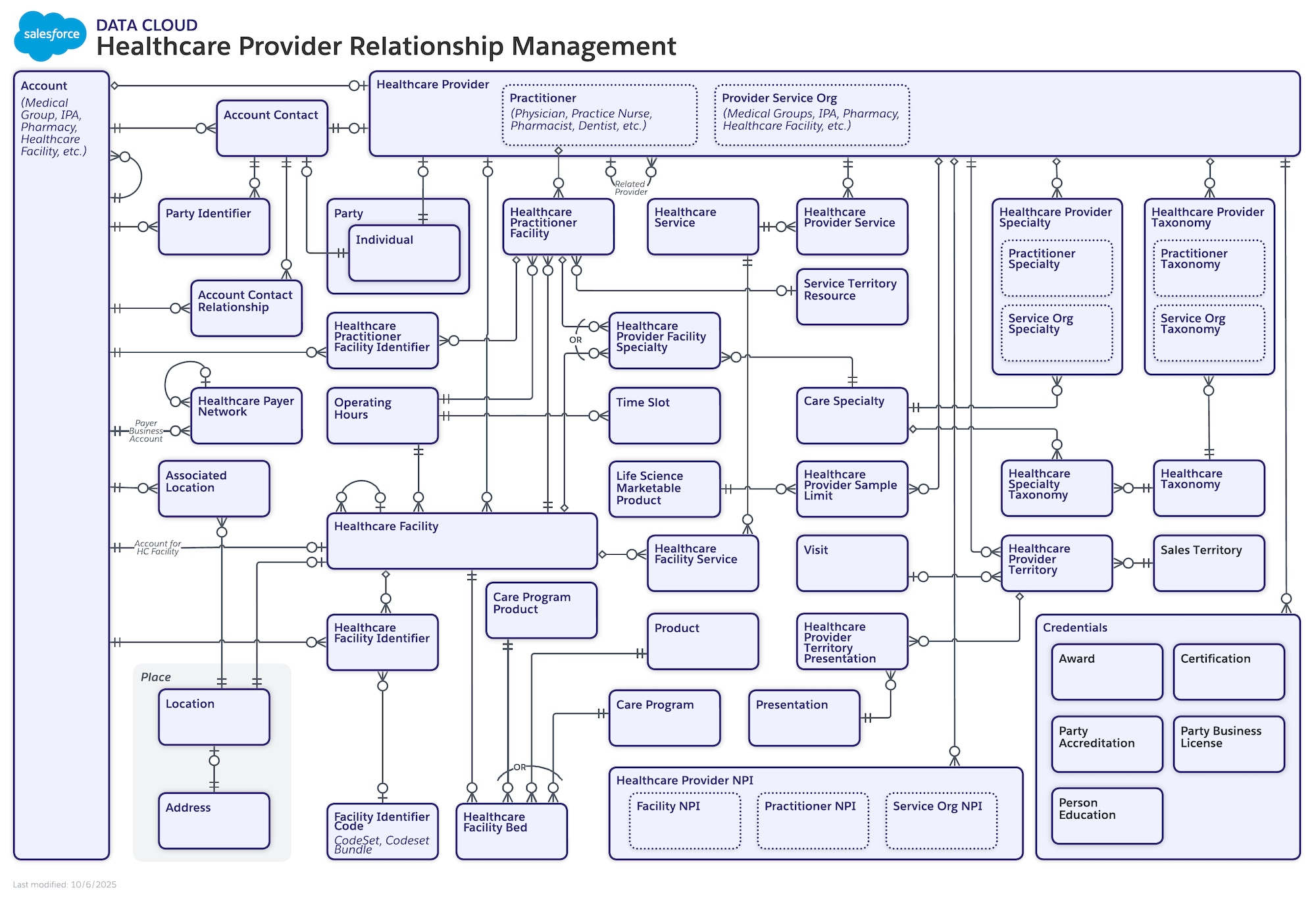

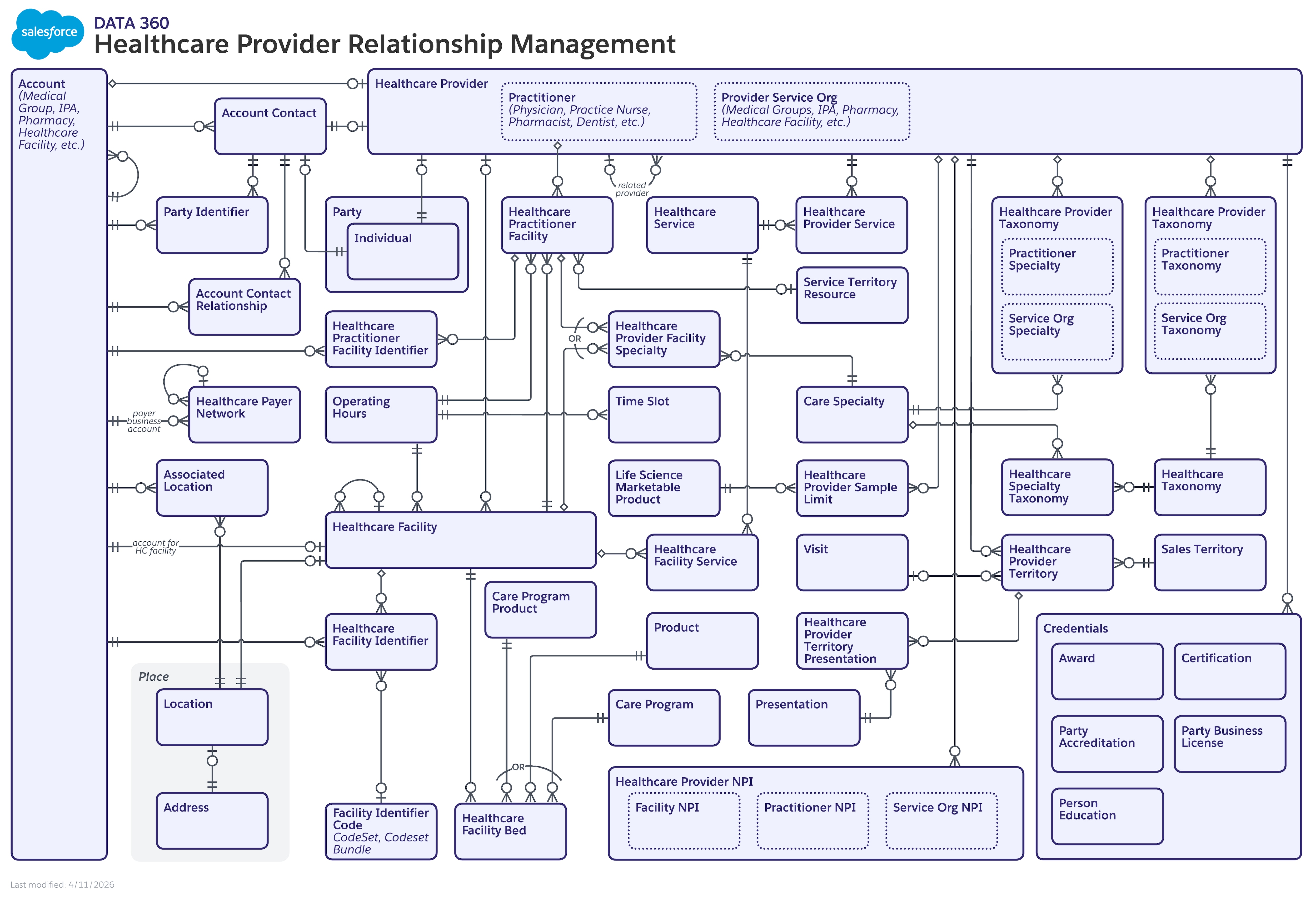

Entities and relationships representing the practitioners, facilities, physician relationships, specialties, and organizational hierarchy for a healthcare provider network.
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select “Open Image in New Tab.”
Customizable Lucidchart Template
Account, Account Contact, Account Contact Relationship, Account for HC Facility, Address, Associated Location, Award, Business Account, Care Program, Care Program Product, Care Specialty, Certification, CodeSet, Codeset Bundle, Credentials, Facility Identifier Code, Facility NPI, Healthcare Facility, Healthcare Facility Bed, Healthcare Facility Identifier, Healthcare Facility Service, Healthcare Payer Network, Healthcare Practitioner Facility, Healthcare Practitioner Facility Identifier, Healthcare Provider, Healthcare Provider Facility Specialty, Healthcare Provider NPI, Healthcare Provider Sample Limit, Healthcare Provider Service, Healthcare Provider Territory, Healthcare Provider Territory Presentation, Healthcare Service, Healthcare Specialty Taxonomy, Healthcare Taxonomy, Life Science Marketable Product, Location, Operating Hours, Party Accreditation, Party Business License, Party Identifier, Payer, Person Education, Place, Practitioner, Practitioner NPI, Presentation, Product, Provider Service Org, Related Provider, Sales Territory, Service Org NPI, Service Territory Resource, Time Slot, Visit
See Salesforce Data Model Notation.
