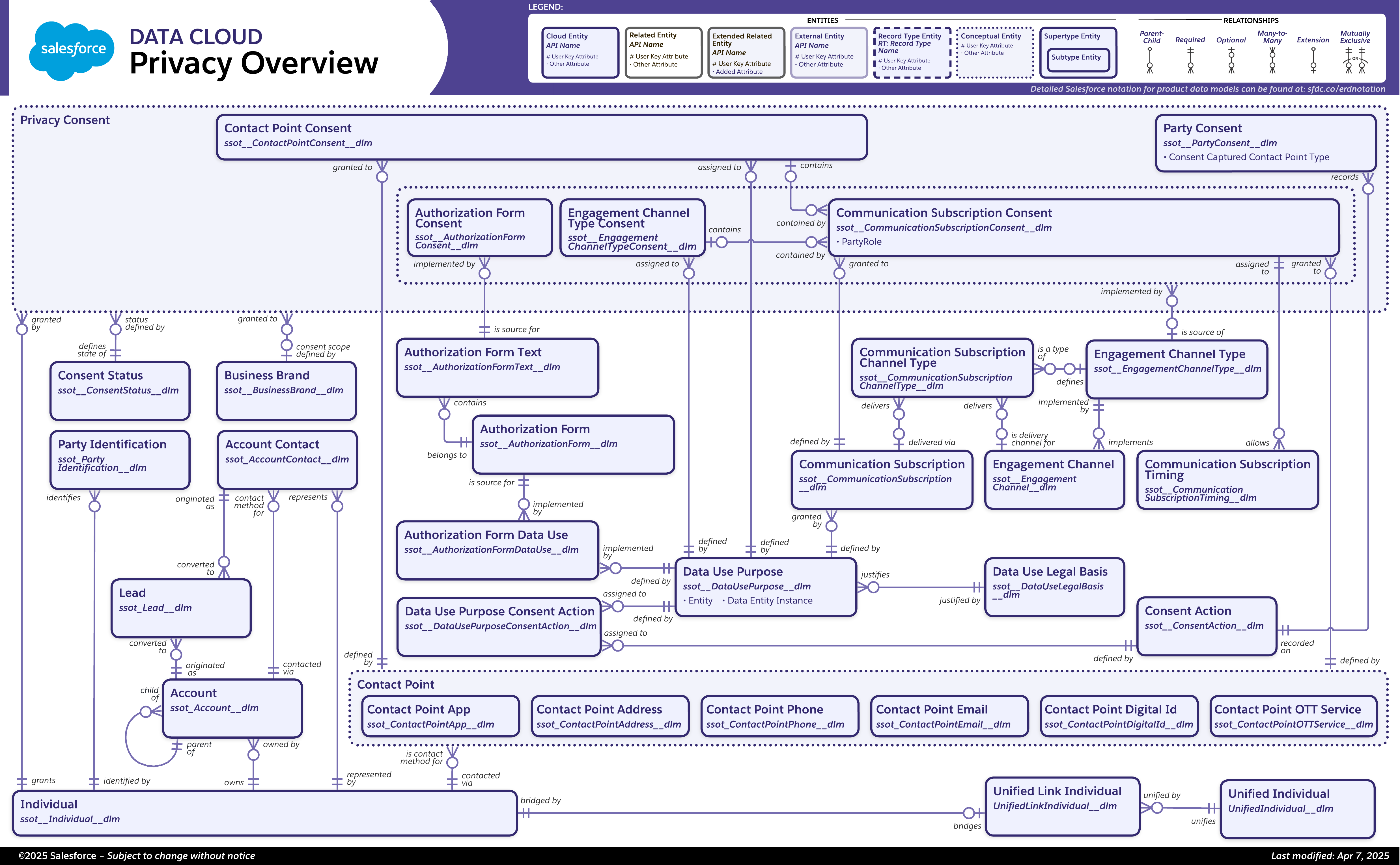

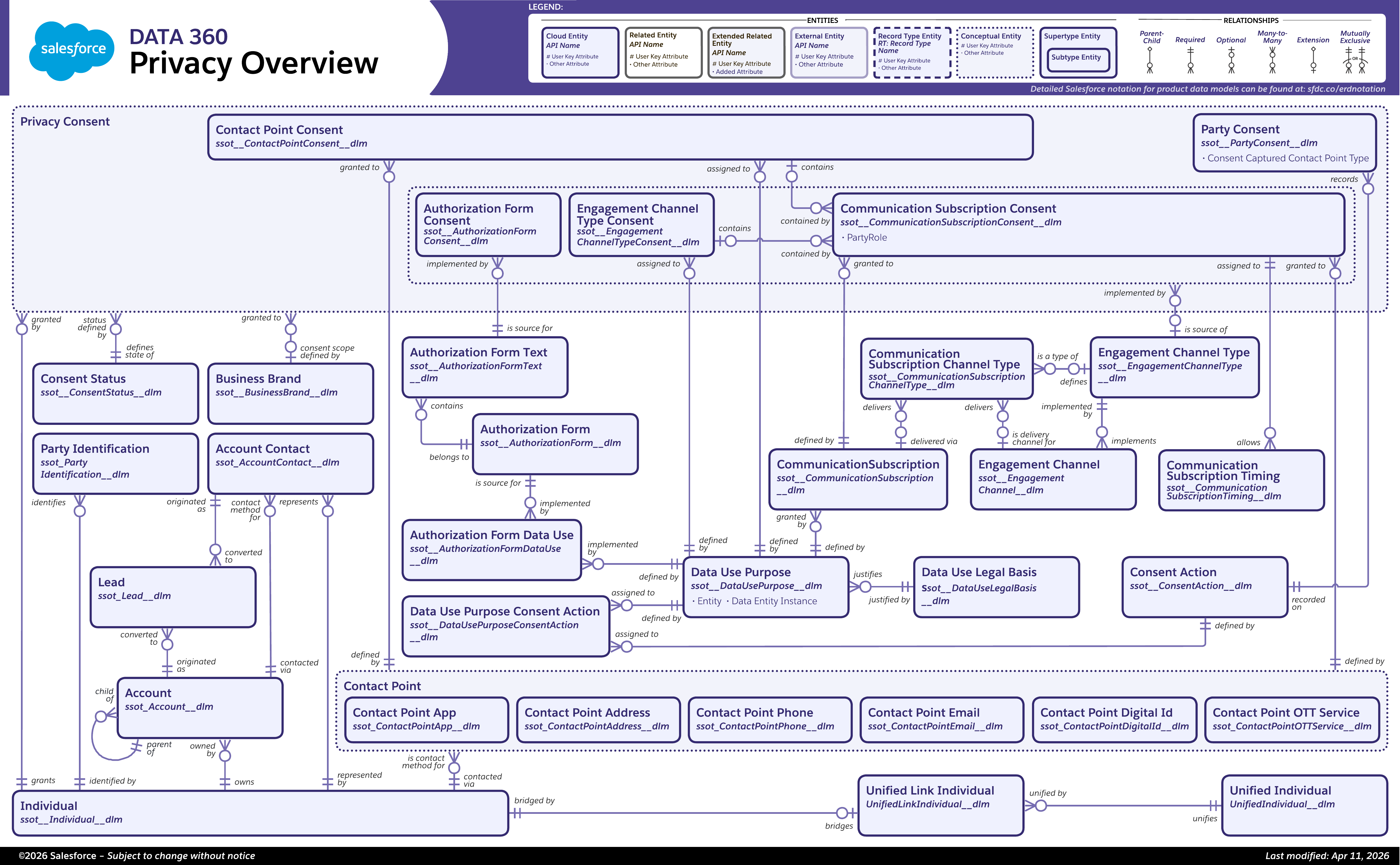

Privacy Overview Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template
Conceptual entities for Privacy Consent and Contact point, along with entities and relationships for tracking and managing data privacy preferences
Account, Account Contact, Authorization Form, Authorization Form Consent, Channel, ChannelType, Communication Subscription, Communication Subscription Channel Type, Communication Subscription Consent, Communication Subscription Timing, Consent Action, Consent Captured Contact Point Type, Consent Status, Contact Point, Contact Point Address, Contact Point App, Contact Point Digital Id, Contact Point Email, Contact Point OTT Service, Contact Point Phone, Data Entity Instance, Data Use Legal Basis, Data Use Purpose, Data Use Purpose Consent Action, Engagement Channel, Engagement Channel Type, Engagement Channel Type Consent, Entity, Identification, Individual, Lead, Party Consent, Party Identification, PartyRole, SubscriptionTiming, Unified Individual, Unified Link Individual
