Inventory Management Data Model

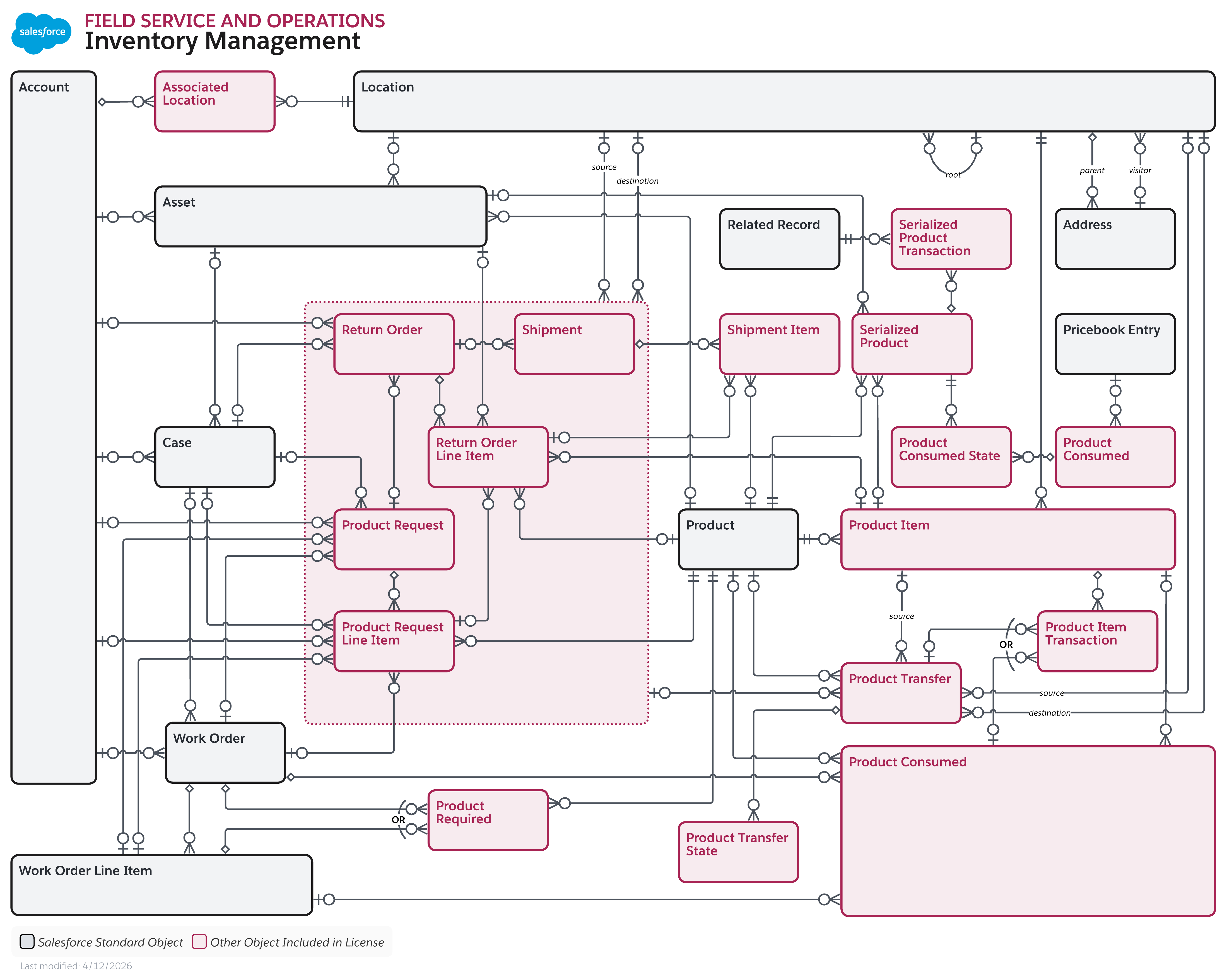

Entities and relationships for managing inventory operations including product transfers, shipments, returns, and product consumption tracking.
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart Template
Account, Address, Asset, Associated Location, Case, Location, Pricebook Entry, Product, Product Consumed, Product Consumed State, Product Item, Product Item Transaction, Product Request, Product Request Line Item, Product Required, Product Transfer, Product Transfer State, Related Record, Return Order, Return Order Line Item, Serialized Product, Serialized Product Transaction, Shipment, Shipment Item, Work Order, Work Order Line Item
