Field Service Resource Time Management Data Model
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart template (Note: May not reflect the most current version of the data model.)

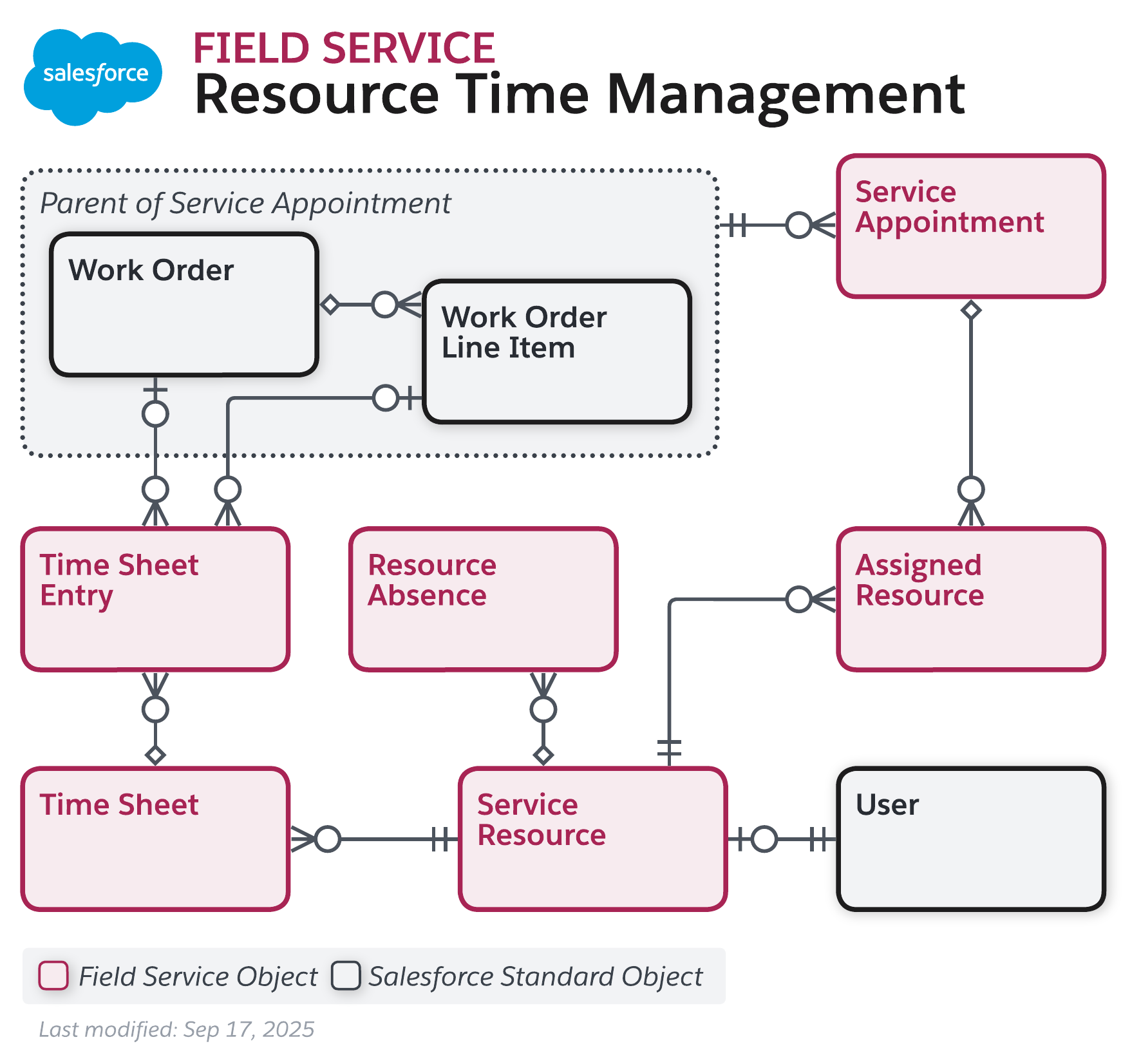

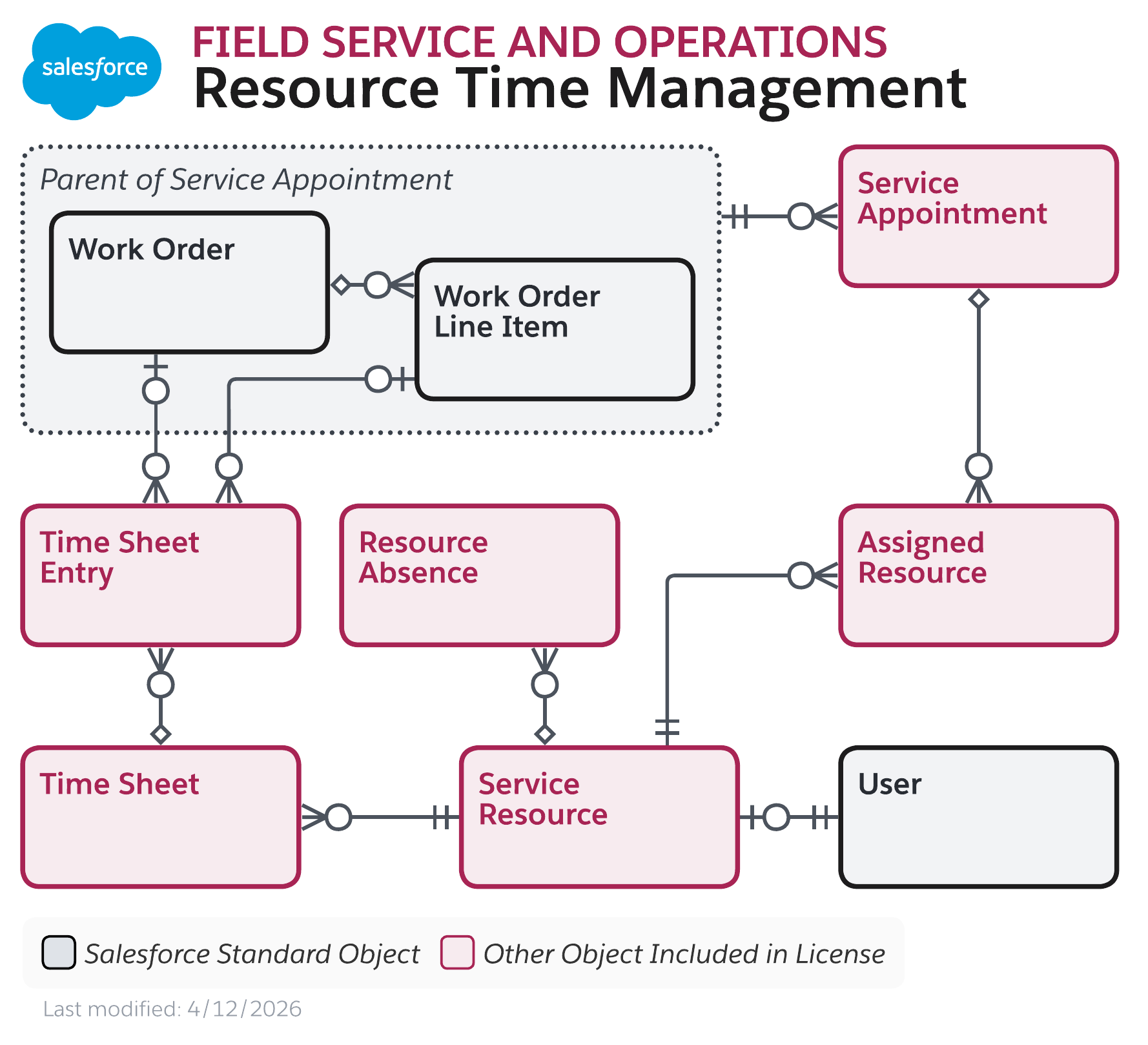

Entities and relationships for resources managing their time spent on work.
Assigned Resource, Resource Absence, Service Appointment, Service Resource, Time Sheet, Time Sheet Entry, User, Work Order, Work Order Line Item
