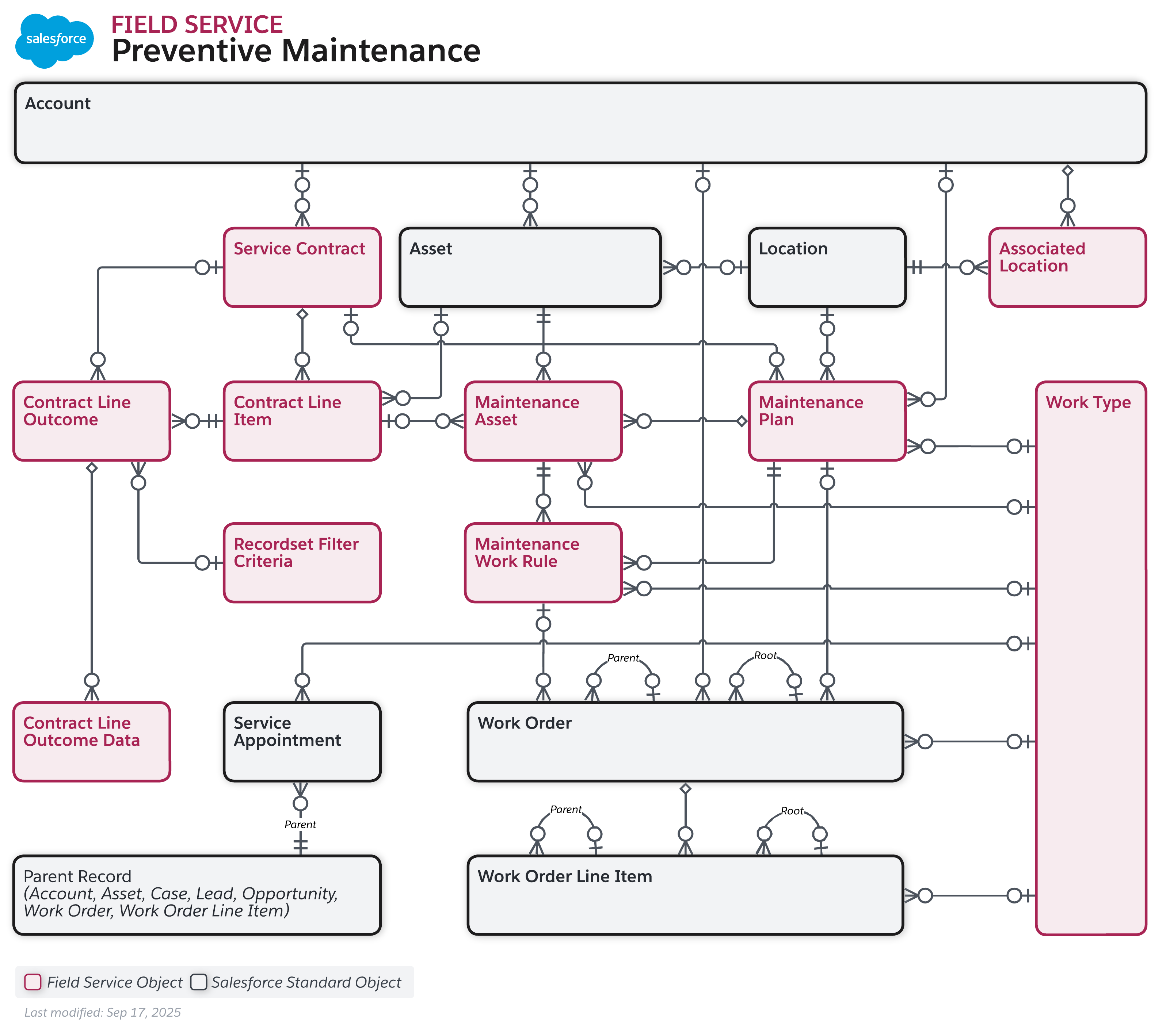

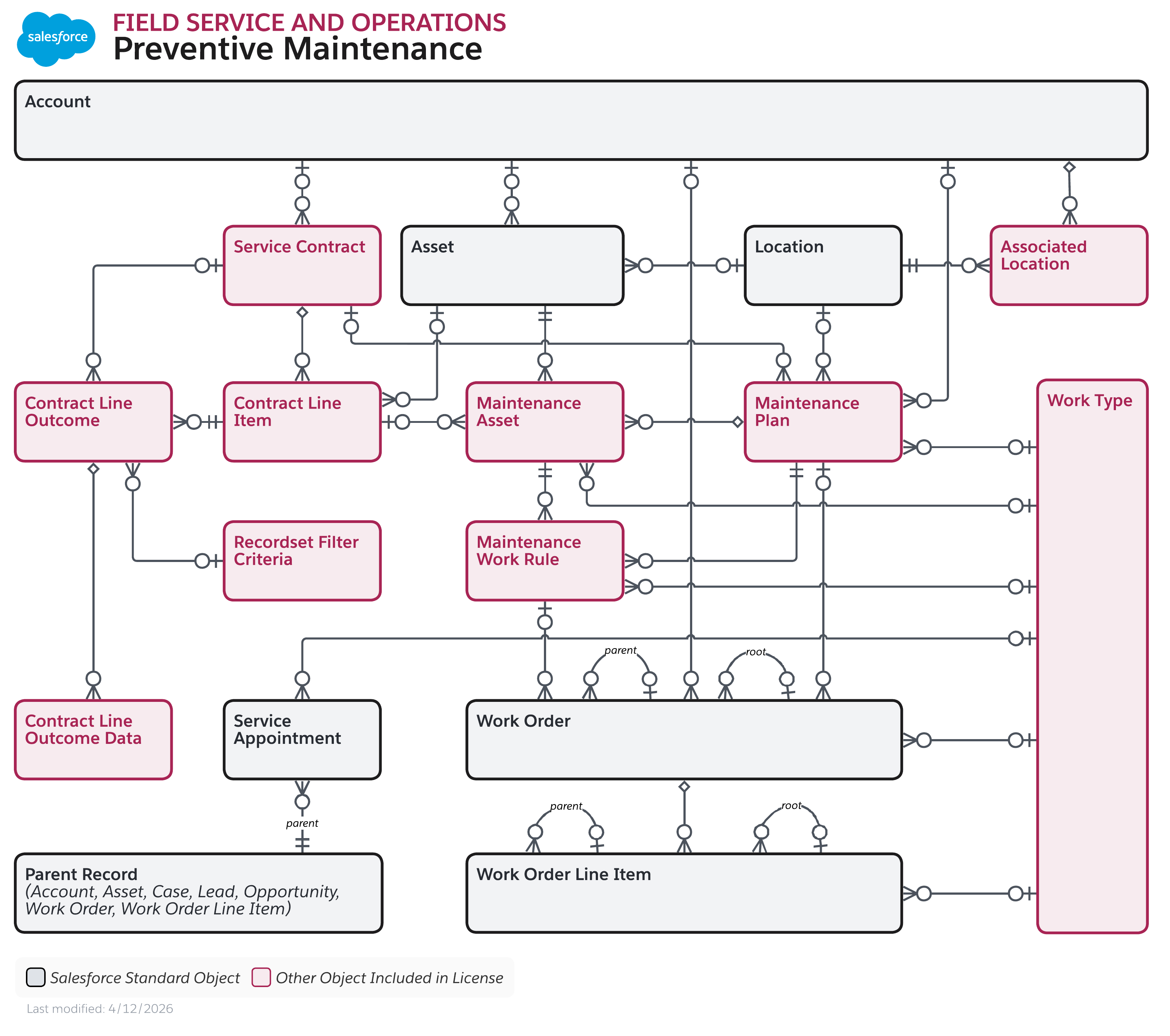

Entities and relationships for managing preventive maintenance programs including maintenance plans, work rules, assets, and contract line outcomes.
To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select “Open Image in New Tab.”
Customizable Lucidchart Template
Account, Asset, Associated Location, Contract Line Item, Contract Line Outcome, Contract Line Outcome Data, Location, Maintenance Asset, Maintenance Plan, Maintenance Work Rule, Parent Record, Recordset Filter Criteria, Service Appointment, Service Contract, Work Order, Work Order Line Item, Work Type
See Salesforce Data Model Notation.
