Service Territory Management & Resource Availability Data Model

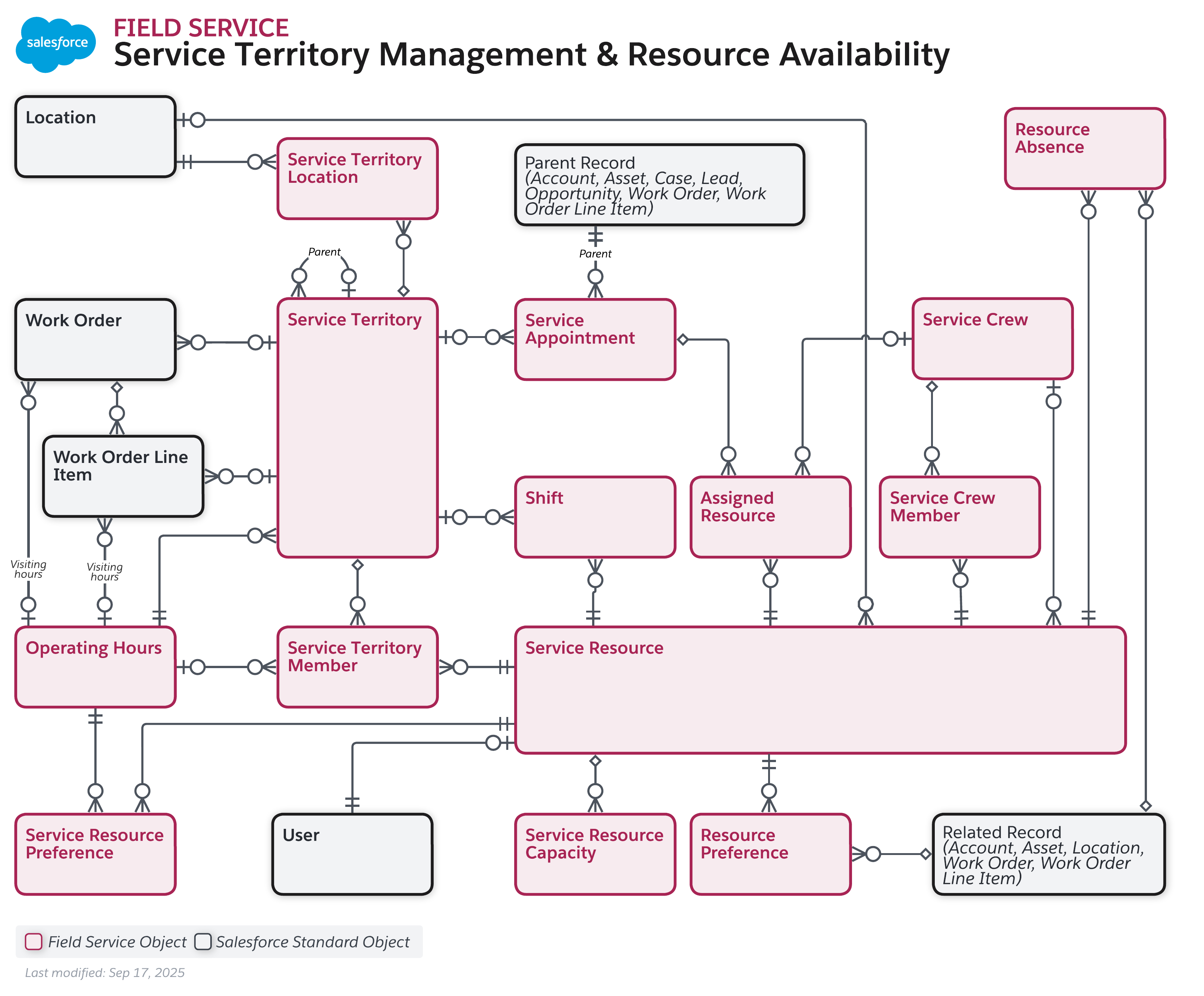

Entities and relationships that provide the primary overview for managing work assigned to resources within service territories.

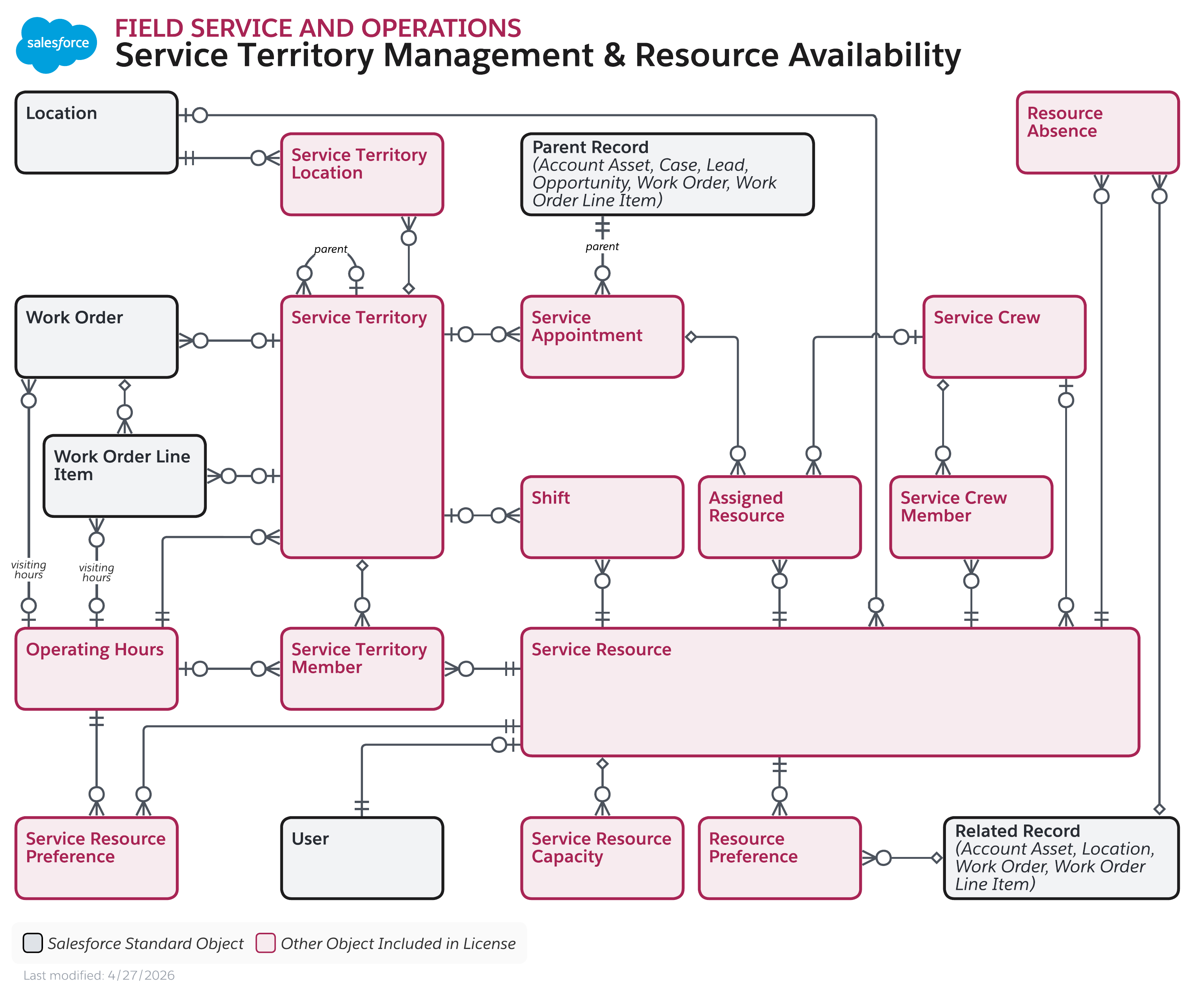

To view a higher-resolution version of this diagram, right-click (or Control-click on Mac) and select "Open Image in New Tab."
Customizable Lucidchart Template
Assigned Resource, Location, Operating Hours, Parent Record, Related Record, Resource Absence, Resource Preference, Service Appointment, Service Crew, Service Crew Member, Service Resource, Service Resource Capacity, Service Territory, Service Territory Location, Service Territory Member, Shift, User, Work Order, Work Order Line Item
