Create Service Appointments

The last step in the concurrent scheduling application is to show the service appointment details for the user to review and create the appointment. A service appointment represents an appointment booked through Salesforce Scheduler.

Create a page where the user can review the appointment details and create the appointment. Here’s how a Review Service Appointment page can look.

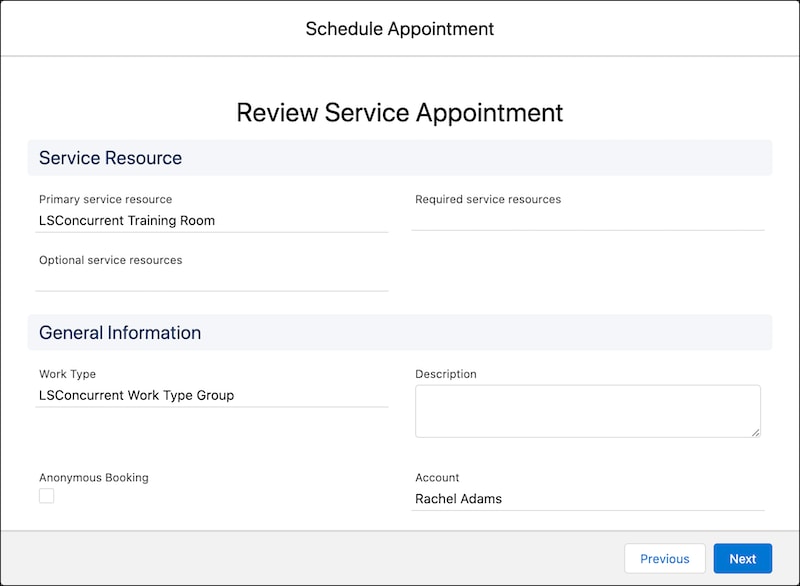

A representation of the Review Service Appointment screen.

Link the Next button to a POST request on the service-appointments Connect API to create the service appointment.

Resource URI

1https://yourInstance.salesforce.com/services/data/vXX.X/connect/scheduling/service-appointments

For an Existing User (Account)

Sample Request

Pass the account ID as parentRecordId in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2   "serviceAppointment": {
3      "serviceTerritoryId": "0HhB00000001P0PKAU",
4      "parentRecordId" : "001B0000018vs9fIAA",
5      "workTypeId" : "08qB00000002ocgIAA",
6      "schedStartTime" : "2021-10-29T16:00:00.000+0000",
7      "schedEndTime": "2021-10-29T17:00:00.000+0000",
8      "additionalInformation" : "Concurrent Booking",
9      "appointmentType" : "Training Purpose",
10      "extendedFields" : [ {
11        "name": "status",
12        "value": "Scheduled"
13     } ]
14   },
15   "assignedResources": [
16      {
17      "serviceResourceId": "0HnB00000001SJxKAM",
18      "isRequiredResource" : "true"
19      }
20   ]
21}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result" : {
3    "assignedResourceIds" : [ "03rB0000000cBZ6IAM" ],
4    "serviceAppointmentId" : "08pB0000000aKjMIAU"
5  }
6}

For a Guest User (Lead)

Sample Request

Pass the required lead details in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2   "serviceAppointment": {
3      "serviceTerritoryId": "0HhB00000001P0PKAU",
4      "schedStartTime" : "2021-10-29T16:00:00.000+0000",
5      "schedEndTime": "2021-10-29T17:00:00.000+0000",
6      "workTypeId" : "08qB00000002ocgIAA",
7      "additionalInformation" : "Concurrent Booking",
8      "appointmentType" : "Training Purpose",
9      "extendedFields" : [ {
10        "name": "status",
11        "value": "Scheduled"
12     } ]
13   },
14   "assignedResources": [
15      {
16      "serviceResourceId": "0HnB00000001SJxKAM",
17      "isRequiredResource" : "true"
18      }
19   ],
20   "lead": {
21      "email" : "name@company.com",
22      "firstName" : "FName",
23      "lastName" : "LName",
24      "company" : "CompanyName"
25   }
26}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result" : {
3    "assignedResourceIds" : [ "03rB0000000cBAFIA2" ],
4    "parentRecordId" : "00QB000000ASSt5MAH",
5    "serviceAppointmentId" : "08pB0000000aKIgIAM"
6  }
7}

Create a page to show confirmation when the service appointment is created successfully.

Here’s how a sample confirmation page can look.

A representation of the confirmation screen.
