Create Service Appointments

A service appointment represents an appointment booked through Salesforce Scheduler. Make a POST request on the service-appointments Connect API to create the appointment.

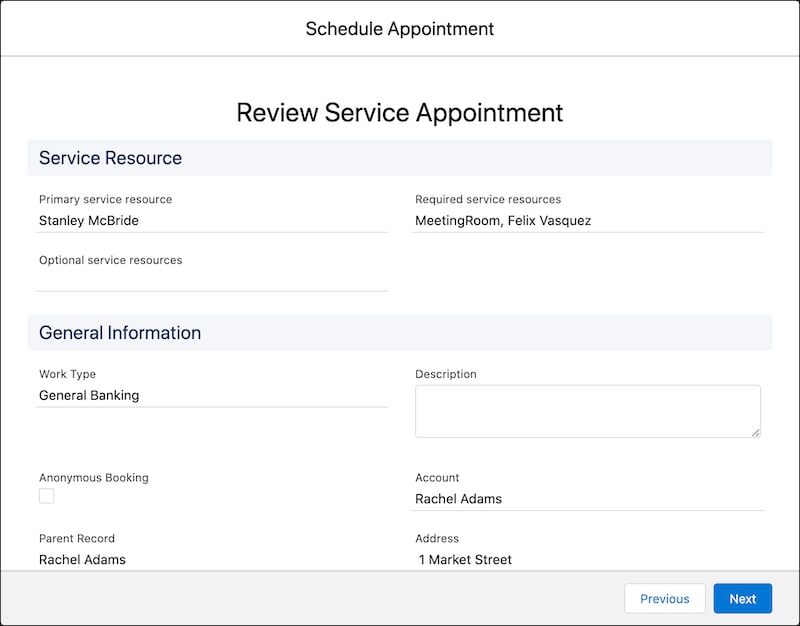

Create a page where the user can review the appointment details and create the appointment.

Here’s how a Review Service Appointment page can look.

Link the Next button to a POST request on the service-appointments Connect API to create the service appointment.

Resource URI

1https://yourInstance.salesforce.com/services/data/vXX.X/connect/scheduling/service-appointments

For an Existing User (Account)

Sample Request

Pass the account ID as parentRecordId in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2   "serviceAppointment": {
3      "serviceTerritoryId": "0HhS700000001DYKAY",
4      "parentRecordId" : "001S7000001pFlJIAU",
5      "schedStartTime" : "2023-11-30T17:00:00.000+0000",
6      "schedEndTime": "2023-11-30T18:00:00.000+0000",
7      "street": "121 Spear Street",
8      "city": "Charlotte",
9      "state": "VT",
10      "postalCode": "05445",
11      "country": "United States",
12      "engagementChannelTypeId" : "0eFS70000004CG5MAM",
13      "extendedFields" : [{
14        "name": "status",
15        "value": "Scheduled"
16      }]
17   },
18   "assignedResources": [
19      {
20        "serviceResourceId": "0HnS700000002jAKAQ",
21        "isRequiredResource": true,
22        "isPrimaryResource": true,
23        "extendedFields" : []
24      }, {
25        "serviceResourceId": "0HnS700000002jKKAQ",
26        "isRequiredResource": true,
27        "isPrimaryResource": false,
28        "extendedFields" : []
29      }
30   ]
31}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result": {
3    "assignedResourceIds": [
4      "03rS700000000ogIAA",
5      "03rS700000000ohIAA"
6    ],
7    "serviceAppointmentId": "08pS700000001GIIAY"
8  }
9}

For a Guest User (Lead)

Sample Request

Pass the required lead details in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2   "serviceAppointment": {
3      "serviceTerritoryId": "0HhS700000001DYKAY",
4      "schedStartTime" : "2023-11-30T17:00:00.000+0000",
5      "schedEndTime": "2023-11-30T18:00:00.000+0000",
6      "street": "121 Spear Street",
7      "city": "Charlotte",
8      "state": "VT",
9      "postalCode": "05445",
10      "country": "United States",
11      "engagementChannelTypeId" : "0eFS70000004CG5MAM",
12      "extendedFields" : [{
13        "name": "status",
14        "value": "Scheduled"
15      }]
16   },
17   "assignedResources": [
18      {
19        "serviceResourceId": "0HnS700000002jAKAQ",
20        "isRequiredResource": true,
21        "isPrimaryResource": true,
22        "extendedFields" : []
23      }, {
24        "serviceResourceId": "0HnS700000002jKKAQ",
25        "isRequiredResource": true,
26        "isPrimaryResource": false,
27        "extendedFields" : []
28      }
29   ] ,
30    "lead": {
31      "firstName": "Philip",
32      "lastName": "Taylor",
33      "phone": "012-345-6789",
34      "email": "pmtaylor@company.com",
35      "company": "Philip&Taylor Company",
36      "extendedFields" : []
37   }
38}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result": {
3    "assignedResourceIds": [
4      "03rS700000000oqIAA",
5      "03rS700000000orIAA"
6    ],
7    "parentRecordId": "00QS7000000sfcxMAA",
8    "serviceAppointmentId": "08pS700000001GSIAY"
9  }
10}

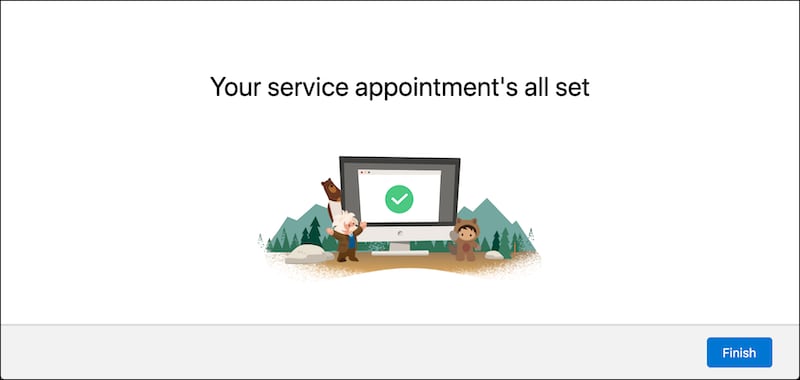

Create a page to show confirmation when the service appointment is created successfully.

Here’s how a sample confirmation page can look.

A representation of the confirmation screen.
