Create Service Appointments

The last step in the scheduling application is to show the service appointment details for the user to review and create the appointment.

A service appointment represents an appointment booked through Salesforce Scheduler.

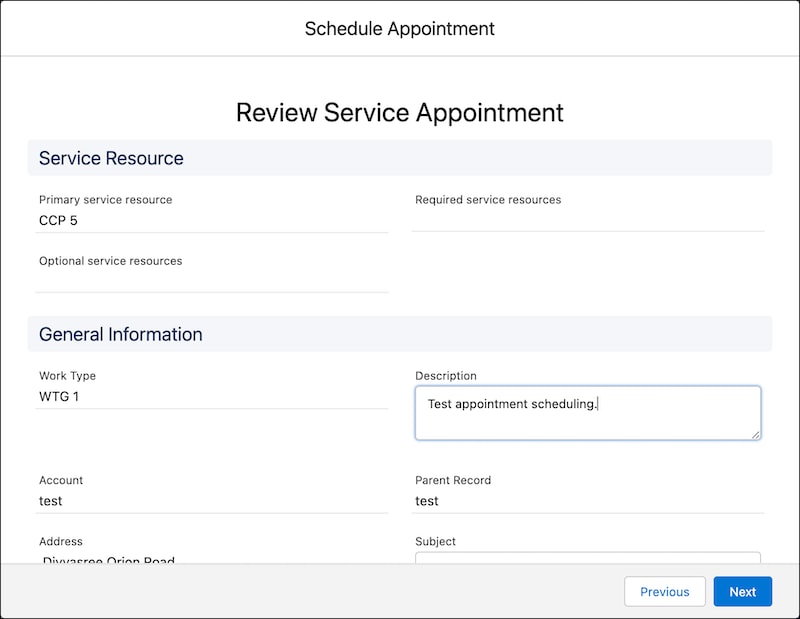

Create a page where the user can review the appointment details and create the appointment. Here’s how a Review Service Appointment page can look.

A representation of the Review Service Appointment screen.

Link the Next button to a POST request on the service-appointments Connect API to create the service appointment.

Resource URI

1https://yourInstance.salesforce.com/services/data/vXX.X/connect/scheduling/service-appointments

For an Existing User (Account)

Sample Request

Pass the account ID as parentRecordId in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2  "serviceAppointment": {
3    "serviceTerritoryId": "0Hhx000000012oSCAQ",
4    "parentRecordId": "001x0000005DLxpAAG",
5    "workTypeId": "08qx000000014fnAAA",
6    "schedStartTime": "2022-04-19T10:30:00.000+0000",
7    "schedEndTime": "2022-04-19T10:40:00.000+0000",
8    "additionalInformation": "Appointment Scheduling Custom App.",
9    "appointmentType": "Testing Purpose",
10    "extendedFields": [
11      {
12        "name": "status",
13        "value": "Scheduled"
14      }
15    ]
16  },
17  "assignedResources": [
18    {
19      "serviceResourceId": "0Hnx000000006GcCAI",
20      "isRequiredResource": "true"
21    }
22  ]
23}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result": {
3    "assignedResourceIds": [
4      "03rx00000001uxJAAQ"
5    ],
6    "serviceAppointmentId": "08px00000001toRAAQ"
7  }
8}

For a Guest User (Lead)

Sample Request

Pass the required lead details in the input request body.

Set status to Scheduled to indicate that the appointment is scheduled.

1{
2  "serviceAppointment": {
3    "serviceTerritoryId": "0Hhx000000012oSCAQ",
4    "workTypeId": "08qx000000014fnAAA",
5    "schedStartTime": "2022-04-19T10:30:00.000+0000",
6    "schedEndTime": "2022-04-19T10:40:00.000+0000",
7    "additionalInformation": "Appointment Scheduling Custom App.",
8    "appointmentType": "Testing Purpose",
9    "extendedFields": [
10      {
11        "name": "status",
12        "value": "Scheduled"
13      }
14    ]
15  },
16  "assignedResources": [
17    {
18      "serviceResourceId": "0Hnx000000006H4CAI",
19      "isRequiredResource": "true"
20    }
21  ],
22  "lead": {
23    "email": "name@company.com",
24    "firstName": "FName",
25    "lastName": "LName",
26    "company": "CompanyName"
27  }
28}

Sample Response

The API returns the service appointment ID and the assigned service resources.

1{
2  "result": {
3    "assignedResourceIds": [
4      "03rx00000001uxOAAQ"
5    ],
6    "parentRecordId": "00Qx0000001cKPoEAM",
7    "serviceAppointmentId": "08px00000001toWAAQ"
8  }
9}

Create a page to show confirmation when the service appointment is created successfully.

Here’s how a sample confirmation page can look.

A representation of the confirmation screen.
